LZ 25 C (968999310) - Husqvarna Zero-Turn Mower (2009-06) 52" Cutting Deck Tunnel Deck Parts Diagram

Zero-Turn Mower

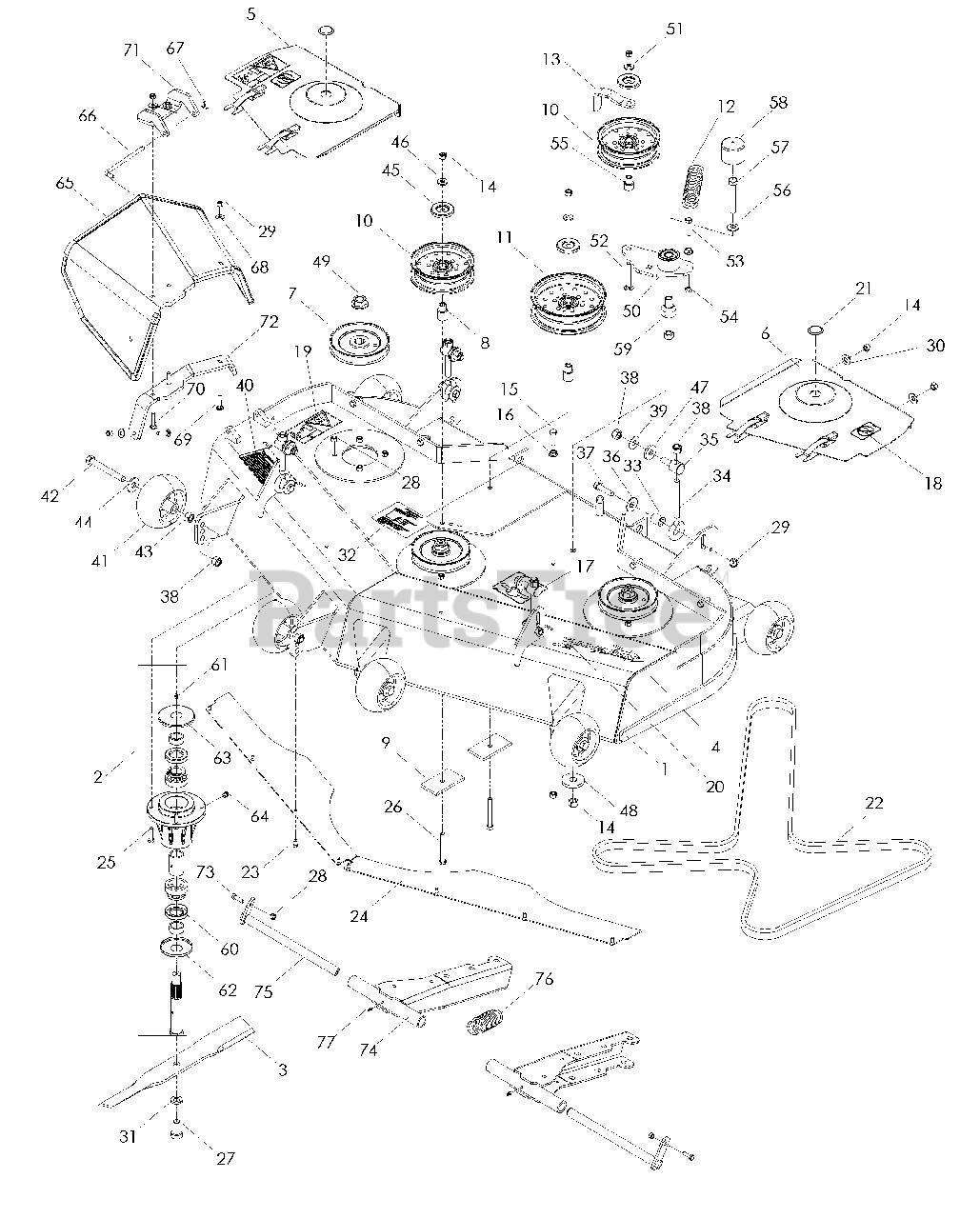

52" Cutting Deck Tunnel Deck Parts Diagram

  • Title

1

Husqvarna 539111377

Deck W/Decals

$

$

Not available

2

Husqvarna 539131383

Housing Assm
(Superseded to 966956101)

$148.99

$

In Stock, only 2 left!

0

3

Husqvarna 539112613

Blade, 18"

$34.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539111561

Decal, Tunnelram

$8.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539113361

Belt Shield Rt

$145.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539113360

Belt Shield Lt

$145.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539107277

Pulley, 52
(Superseded to 539112124)

$45.99

$

In Stock, only 1 left!

0

8

Husqvarna 539103295

Bushing, Idler

$14.99

$

In Stock, only 4 left!

0

9

Husqvarna 539103303

Pad
(Superseded to 539106504)

$

$

Not available

10

Husqvarna 539103257

Pulley, Idler

$74.99

$

In Stock, only 4 left!

0

11

Husqvarna 521966601

Pulley, Idler (Wide)

$72.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539130690

Spring

$12.99

$

In Stock, only 1 left!

0

13

Husqvarna 539114981

Guide, Belt

$

$

Not available

14

Husqvarna 539976979

Nut 3/8-16 Hex Nyloc
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

15

Husqvarna 539976941

Hcs 3/8-16 x 1 1/4

$4.99

$

In Stock, only 1 left!

0

16

Husqvarna 539990613

Nut 3/8-16 Whizlk

$3.99

$

Usually ships in 3-10 days

0

17

Husqvarna 539112620

Decal, Belt Routing

$7.49

$

In Stock, only 4 left!

0

18

Husqvarna 539105743

Decal, No Step
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

19

Husqvarna 539105746

Decal, Severing

$3.99

$

In Stock, only 3 left!

0

20

Husqvarna 539112536

Decal, 132

$

$

Not available

21

Husqvarna 539111641

Button Plug 1"

$0.99

$

Usually ships in 3-10 days

0

22

Husqvarna 522795901

Belt, 52" Deck

$109.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539105532

Screw 1/4-20 Slf Tap

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539111372

Plate, Confinement
(Superseded to 539110137)

$

$

Not available

25

Husqvarna 539990627

Hcs 5/16-18 x 1 1/4

$4.99

$

In Stock, only 1 left!

0

26

Husqvarna 539101341

Hcs 3/8-16 x 3

$5.99

$

In Stock, Qty 12

0

27

Husqvarna 539103299

Hcs 5/8 x 1 1/4

$

$

Not available

28

Husqvarna 539990717

Nut 5/16-18 Hex Nyloc
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

29

Husqvarna 539990839

Nut 7/16-14 Ctrlk Gr A

$3.99

$

In Stock, only 3 left!

0

30

Husqvarna 539990517

Washer 3/8 Std Flat

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990333

Washer 5/8 Slw

$1.99

$

In Stock, Qty 6

0

32

Husqvarna 539105232

Decal, Anti-Scalp

$3.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539114404

Spacer

$7.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539119227

Eyebolt

$18.99

$

In Stock, only 3 left!

0

35

Husqvarna 505256501

Swivel

$18.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539112484

Washer 1/2 Spring

$9.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539108073

Hcs 7/16-14 x 1 3/4

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539101331

Nut 1/2-13 Hex Nyloc
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

39

Husqvarna 539990550

Washer 1/2

$3.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539130245

Decal, Discharge

$2.99

$

Usually ships in 3-10 days

0

41

Husqvarna 539107610

Wheel, Gauge
(Superseded to 532133957)

$13.99

$

In Stock, Qty 10

0

42

Husqvarna 539108366

Hcs 1/2-13 x 4

$6.99

$

In Stock, Qty 17

0

43

Husqvarna 539990258

Nut 1/2-13

$4.99

$

In Stock, Qty 14

0

44

Husqvarna 539109554

Washer 1/2

$

$

Not available

45

Husqvarna 510254501

Shield, Dust

$

$

Not available

46

Husqvarna 522023401

Washer 3/8 Thick

$4.99

$

In Stock, Qty 20+

0

47

Husqvarna 539115550

Washer

$4.99

$

In Stock, only 2 left!

0

48

Husqvarna 539102243

Washer, Support

$

$

Not available

49

Husqvarna 539130653

Nut 3/4-16 Flanged
(Superseded to 598490501)

$9.49

$

In Stock, only 2 left!

0

50

Husqvarna 539130391

Arm, Idler W/Bearings

$

$

Not available

51

Husqvarna 522023401

Washer 3/8 Thick

$4.99

$

In Stock, Qty 20+

0

52

Husqvarna 539130235

Rhsnb 3/8-16 x 2 3/4

$3.99

$

Usually ships in 3-10 days

0

53

Husqvarna 539107042

Hcs 3/8-16 x 1 1/2 Gr8

$3.99

$

In Stock, Qty 6

0

54

Husqvarna 539109332

Nut 3/8-16 Jam
(Superseded to 596433501)

$3.99

$

In Stock, only 3 left!

0

55

Husqvarna 539130242

Bushing, Idler

$3.99

$

In Stock, only 4 left!

0

56

Husqvarna 539115528

Washer 1/2 Belleville

$3.99

$

Usually ships in 3-10 days

0

57

Husqvarna 539103433

Hcs 1/2-13 x 3 1/4

$6.99

$

In Stock, only 4 left!

0

58

Husqvarna 539114823

Cap, Vinyl

$3.99

$

In Stock, only 1 left!

0

59

Husqvarna 510206301

Pivot, Bearing

$6.49

$

In Stock, only 2 left!

0

60

Husqvarna 539108754

Seal, Shaft

$7.99

$

In Stock, Qty 7

0

61

Husqvarna 539101474

Zerk

$3.99

$

Usually ships in 3-10 days

0

62

Husqvarna 539108449

Dust Cap, Bottom

$4.99

$

In Stock, Qty 15

0

63

Husqvarna 539108450

Dust Cap, Top

$5.99

$

In Stock, only 1 left!

0

64

Husqvarna 539977326

Poppet, Grease

$13.99

$

Usually ships in 3-10 days

0

65

Husqvarna 539130779

Discharge Chute

$68.99

$

Usually ships in 3-10 days

0

66

Husqvarna 539131813

Pin, Chute Pivot

$7.99

$

Usually ships in 3-10 days

0

67

Husqvarna 539990365

Pin, Cotter 1/8 x 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

68

Husqvarna 539990692

Washer 5/16
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

69

Husqvarna 539100472

Rhsnb 5/16-18 x 1 1/4

$3.99

$

In Stock, Qty 20+

0

70

Husqvarna 539102933

Rhsnb 5/16-18 x 1 1/2

$

$

Not available

71

Husqvarna 539130923

Bracket, Chute

$43.99

$

Usually ships in 3-10 days

0

72

Husqvarna 539130925

Reinforcement, Brcket

$159.99

$

In Stock, only 1 left!

0

73

Husqvarna 539990209

Hcs 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

74

Husqvarna 539112517

Strut

$70.99

$

Usually ships in 3-10 days

0

75

Husqvarna 539102619

Pin, Pivot

$40.99

$

In Stock, only 3 left!

0

76

Husqvarna 539104760

Spring, Extension

$

$

Not available

77

Husqvarna 539976998

Zerk
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

539 113357

Guard

Note: Not Shown

$

$

Not available
