LZ 25 C (968999310) - Husqvarna Zero-Turn Mower (2009-06) 52" Cutting Deck Combi Deck Parts Diagram

Zero-Turn Mower

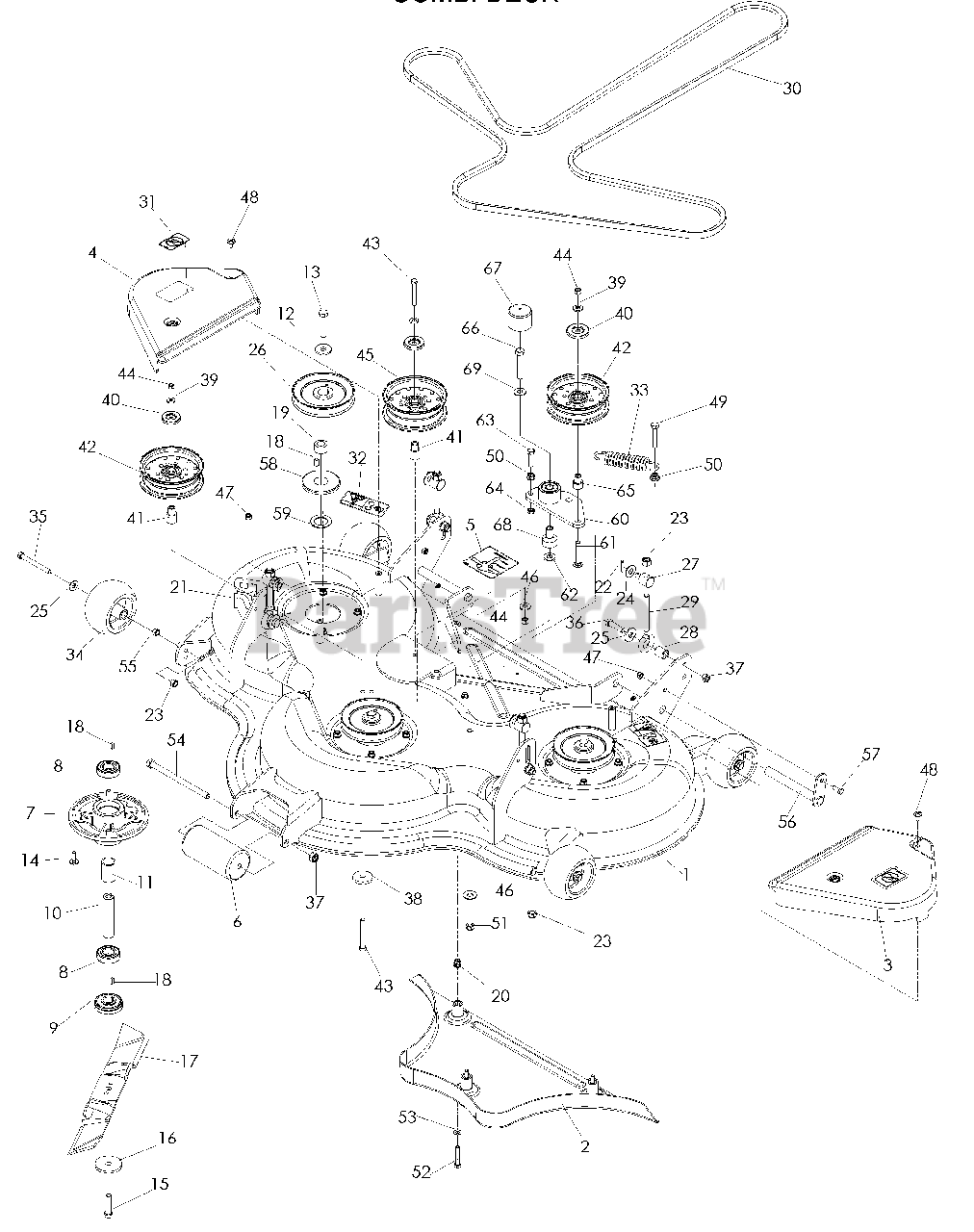

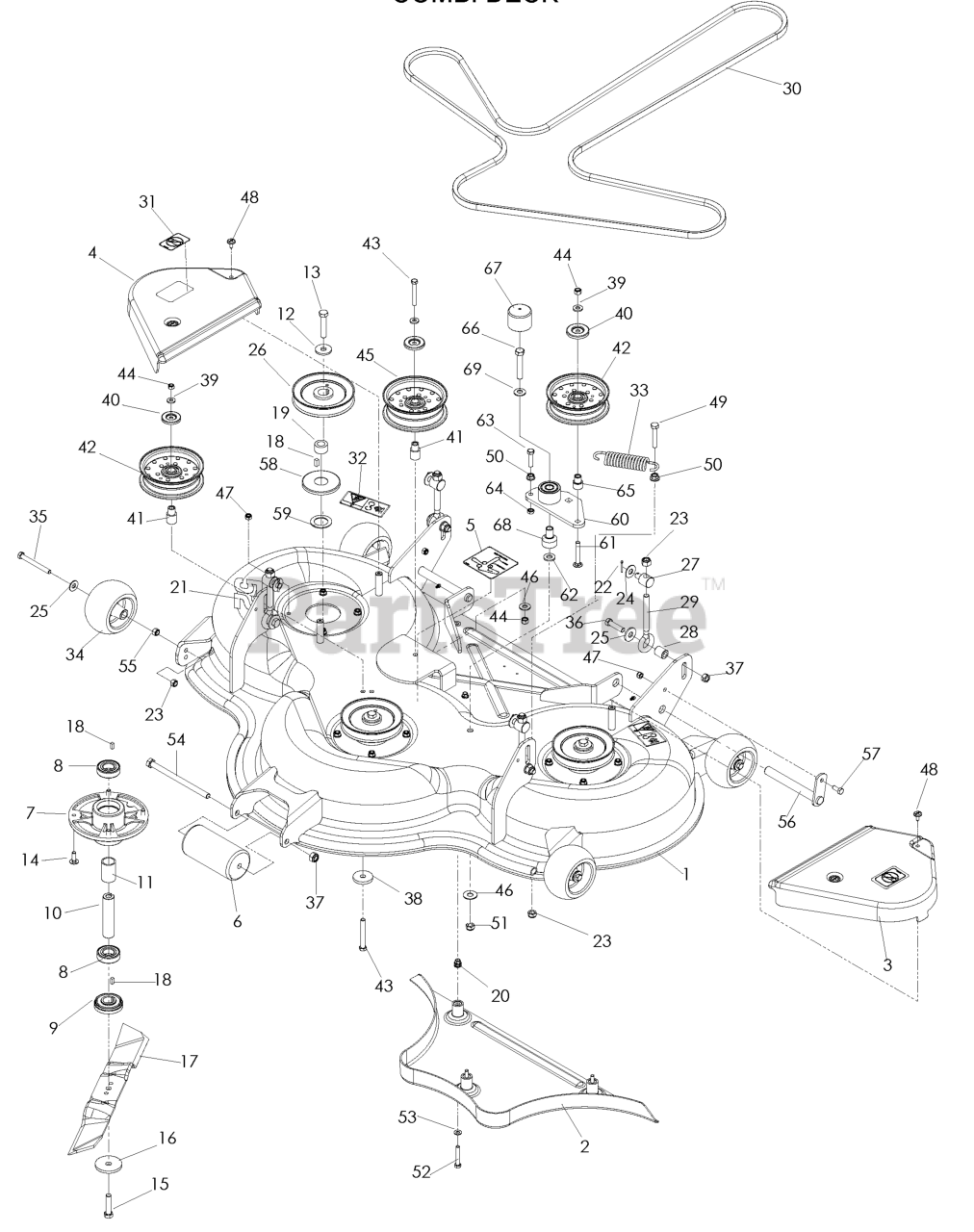

52" Cutting Deck Combi Deck Parts Diagram

  • Title

1

Husqvarna 539133056

Combi 52" Deck W/Decals

$1983.99

$

Usually ships in 3-10 days

0

2

Husqvarna 544166201

Mulch Plug, 132

$

$

Not available

3

Husqvarna 539112508

Belt Shield, Lt

$24.99

$

In Stock, only 1 left!

0

4

Husqvarna 539112509

Belt Shield, Rt

$34.99

$

Usually ships in 3-10 days

0

5

Husqvarna 539112620

Decal, Belt Routing

$7.49

$

In Stock, only 4 left!

0

6

Husqvarna 544185401

Roller
(Superseded to 539002472)

$

$

Not available

7

Husqvarna 535428901

Housing, Bearing

$

$

Not available

8

Husqvarna 738220519

Bearing

$50.99

$

In Stock, only 2 left!

0

9

Husqvarna 539132778

Bushing, Blade

$37.99

$

Usually ships in 3-10 days

0

10

Husqvarna 535428702

Axle

$56.99

$

Usually ships in 3-10 days

0

11

Husqvarna 535428801

Spacer

$9.49

$

Usually ships in 3-10 days

0

12

Husqvarna 539115550

Washer 1/2

$4.99

$

In Stock, only 2 left!

0

13

Husqvarna 539132479

Hcs M12 x 1.75 x 60, Gr8.8

$3.99

$

In Stock, only 1 left!

0

14

Husqvarna 539990208

Rhsnb 5/16-18 x 1

$3.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539132480

Hcs M12 x 1.75 x 50, Gr8.8

$3.99

$

In Stock, only 1 left!

0

16

Husqvarna 506792302

Washer

$14.99

$

Usually ships in 3-10 days

0

17

Husqvarna 544175701

Blade, C132
(Superseded to 586198810)

$39.99

$

Usually ships in 3-10 days

0

18

Husqvarna 506533501

Key

$6.49

$

Usually ships in 3-10 days

0

19

Husqvarna 539112609

Key Retainer

$10.99

$

Usually ships in 3-10 days

0

20

Husqvarna 506916203

Blind Rivet Nut

$9.49

$

Usually ships in 3-10 days

0

21

Husqvarna 544245301

Label

$9.49

$

Usually ships in 3-10 days

0

22

Husqvarna 539109246

Pin Cotter, 1/8 x 1

$3.99

$

Usually ships in 3-10 days

0

23

Husqvarna 539101331

Nut 1/2-13 Hex Nyloc
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

24

Husqvarna 539990550

Washer 1/2

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539109554

Washer 1/2

$

$

Not available

26

Husqvarna 539112506

Pulley, 52

$

$

Not available

27

Husqvarna 539114405

Swivel

$17.99

$

Usually ships in 3-10 days

0

28

Husqvarna 539114404

Spacer

$7.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539119227

Eyebolt

$18.99

$

In Stock, only 3 left!

0

30

Husqvarna 539112529

Deck Belt, 52"

$133.99

$

In Stock, only 1 left!

0

31

Husqvarna 539105743

Decal, No Step
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

32

Husqvarna 539105744

Decal, Belt Drives

$6.99

$

In Stock, only 2 left!

0

33

Husqvarna 539103256

Spring

$12.99

$

In Stock, Qty 6

0

34

Husqvarna 539107610

Wheel, Gauge
(Superseded to 532133957)

$13.99

$

In Stock, Qty 20+

0

35

Husqvarna 539108366

Hcs 1/2-13 x 4

$6.99

$

In Stock, Qty 17

0

36

Husqvarna 539108073

Hcs 7/16-14 x 1 3/4

$3.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539990839

Nut 7/16-14, Ctrlk, Gr A

$3.99

$

In Stock, only 3 left!

0

38

Husqvarna 539106504

Washer, Heavy

$

$

Not available

39

Husqvarna 522023401

Washer 3/8, Thick

$4.99

$

In Stock, Qty 20+

0

40

Husqvarna 510254501

Shield, Dust

$

$

Not available

41

Husqvarna 539103295

Bushing, Idler

$14.99

$

In Stock, only 4 left!

0

42

Husqvarna 539103257

Pulley, Idler

$74.99

$

In Stock, only 1 left!

0

43

Husqvarna 539102612

Hcs 3/8-16 x 2 3/4

$5.99

$

In Stock, only 3 left!

0

44

Husqvarna 539976979

Nut 3/8-16 Hex Nyloc
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

45

Husqvarna 539103258

Pulley, Idler (Tall)

$53.99

$

In Stock, only 1 left!

0

46

Husqvarna 539990517

Washer 3/8

$3.99

$

Usually ships in 3-10 days

0

47

Husqvarna 539112899

Nut 5/16-18 Flange Nyloc
(Superseded to 594944401)

$6.99

$

In Stock, Qty 20+

0

48

Husqvarna 539990362

Screw 1/4-20 x 5/8, Self Tap

$4.99

$

In Stock, Qty 12

0

49

Husqvarna 539990588

Hcs 3/8-16 x 2

$4.99

$

In Stock, Qty 10

0

50

Husqvarna 539990613

Nut 3/8-16, Whizlk

$3.99

$

Usually ships in 3-10 days

0

51

Husqvarna 539200282

Nut, 3/8-16 Hex Jam Nyloc
(Superseded to 596230801)

$3.99

$

In Stock, Qty 15

0

52

Husqvarna 539132494

Hcs M8 x 1.25 x 50, Gr8.8

$

$

Not available

53

Husqvarna 539990188

Washer 5/16, Sae
(Superseded to 819111116)

$3.99

$

In Stock, Qty 18

0

54

Husqvarna 539132470

Hcs 7/16-14 x 7

$4.99

$

In Stock, only 1 left!

0

55

Husqvarna 539990258

Nut 1/2-13

$4.99

$

In Stock, Qty 14

0

56

Husqvarna 539132498

Pin, Strut

$133.99

$

Usually ships in 3-10 days

0

57

Husqvarna 539990209

Hcs 5/16-18 x 1

$1.99

$

Usually ships in 3-10 days

0

58

Husqvarna 539108449

Dust Cap, Bottom

$4.99

$

In Stock, Qty 15

0

59

Husqvarna 539127099

Washer 1.06

$6.49

$

In Stock, only 1 left!

0

60

Husqvarna 539130391

Arm, Idler W/Bearings

$

$

Not available

61

Husqvarna 539128101

Bolt 3/8-16 x 2 1/2, Carriage

$

$

Not available

62

Husqvarna 539990250

Washer 1/2, Sae

$1.99

$

In Stock, only 2 left!

0

63

Husqvarna 539107042

Hcs 3/8-16 x 1 1/2 Gr8

$3.99

$

In Stock, Qty 6

0

64

Husqvarna 539109332

Nut 3/8-16 Jam
(Superseded to 596433501)

$3.99

$

In Stock, only 3 left!

0

65

Husqvarna 539130242

Bushing, Idler

$3.99

$

In Stock, Qty 5

0

66

Husqvarna 539101332

Hcs 1/2-13 x 2 3/4

$5.99

$

In Stock, only 3 left!

0

67

Husqvarna 539114823

Cap, Vinyl

$3.99

$

In Stock, only 1 left!

0

68

Husqvarna 510206301

Pivot, Bearing

$6.49

$

In Stock, only 2 left!

0

69

Husqvarna 539115528

Washer 1/2, Belleville

$3.99

$

Usually ships in 3-10 days

0
