LZ 25 C (968999310) - Husqvarna Zero-Turn Mower (2006-04) SEAT Parts Diagram

Zero-Turn Mower

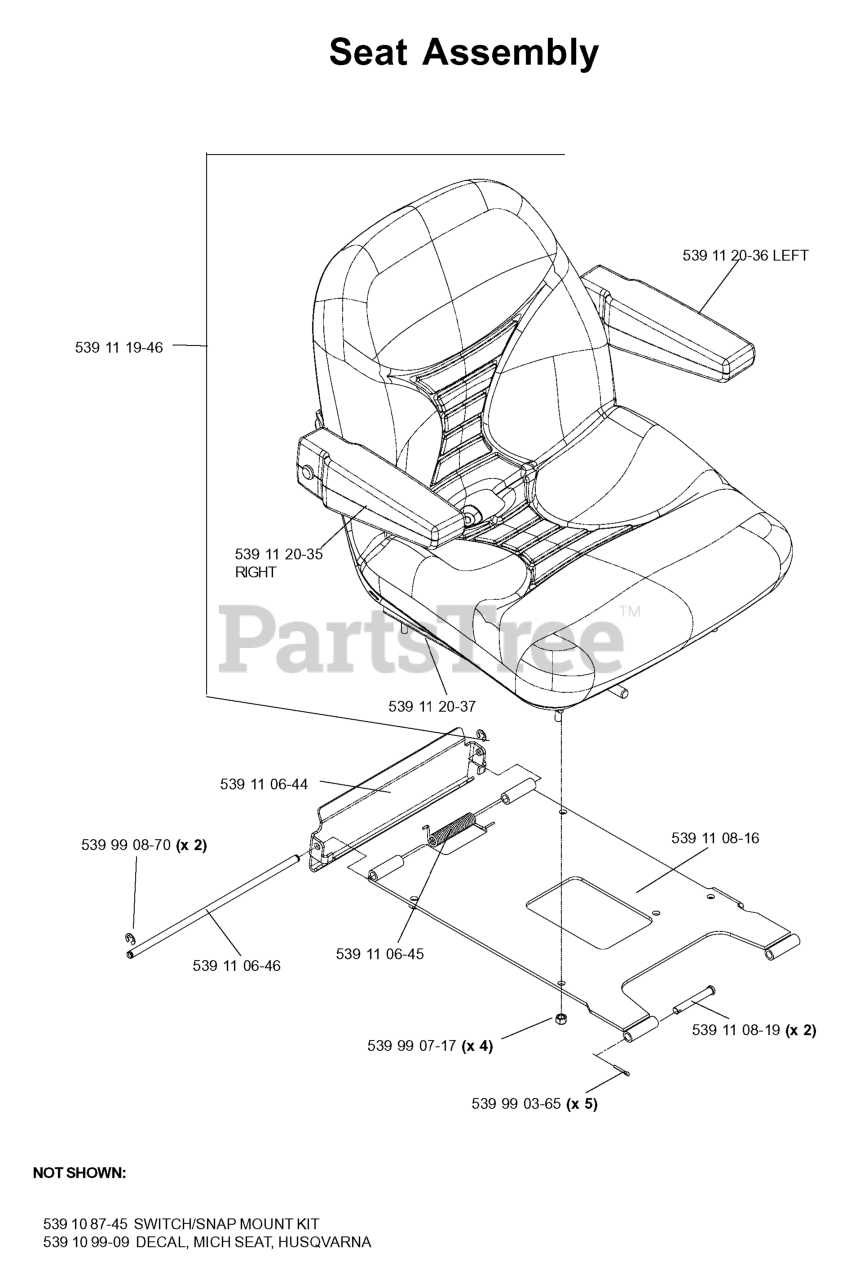

SEAT Parts Diagram

  • Title

539 99 03-65

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

539 11 20-35

Husqvarna 539112035

ARMREST KIT, RT SQUARE END
(Superseded to 574201601)

Note: RIGHT

$96.99

$

Usually ships in 3-10 days

0

539 11 20-36

Husqvarna 539112036

ARMREST KIT, LT SQUARE END
(Superseded to 574201602)

Note: LEFT

$91.99

$

Usually ships in 3-10 days

0

539 11 08-19

Husqvarna 539110819

CLEVIS PIN 3/8

$3.99

$

Usually ships in 3-10 days

0

539 11 06-46

Husqvarna 539110646

SEAT LATCH ROD

$14.99

$

Usually ships in 3-10 days

0

539 10 99-09

Husqvarna 539109909

DECAL, MICH SEAT

Note: NOT SHOWN: DECAL, MICH SEAT, HUSQVARNA

$

$

Not available

539 11 08-16

Husqvarna 539110816

SEAT MOUNTED WLDMT

$364.99

$

Usually ships in 3-10 days

0

539 11 06-45

Husqvarna 539110645

TORSION SPRING (SEAT)

$12.99

$

Usually ships in 3-10 days

0

539 11 19-46

Husqvarna 539111946

SEAT
(Superseded to 501580402)

$797.99

$

Usually ships in 3-10 days

0

539 11 20-37

Husqvarna 539112037

TRACK ADJUSTMENT KIT

$157.99

$

Usually ships in 3-10 days

0

539 11 06-44

Husqvarna 539110644

SEAT LATCH BRACKET

$34.99

$

Usually ships in 3-10 days

0

539 99 07-17

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539 99 08-70

Husqvarna 539990870

E RING 3/8"

$6.49

$

In Stock, only 1 left!

0

539 10 87-45

Husqvarna 539108745

SWITCH-SNAP MOUNT KIT

Note: NOT SHOWN: SWITCH/SNAP MOUNT KIT

$

$

Not available
