LZ 25 C (968999310) - Husqvarna Zero-Turn Mower (2006-04) FUEL TANK Parts Diagram

Zero-Turn Mower

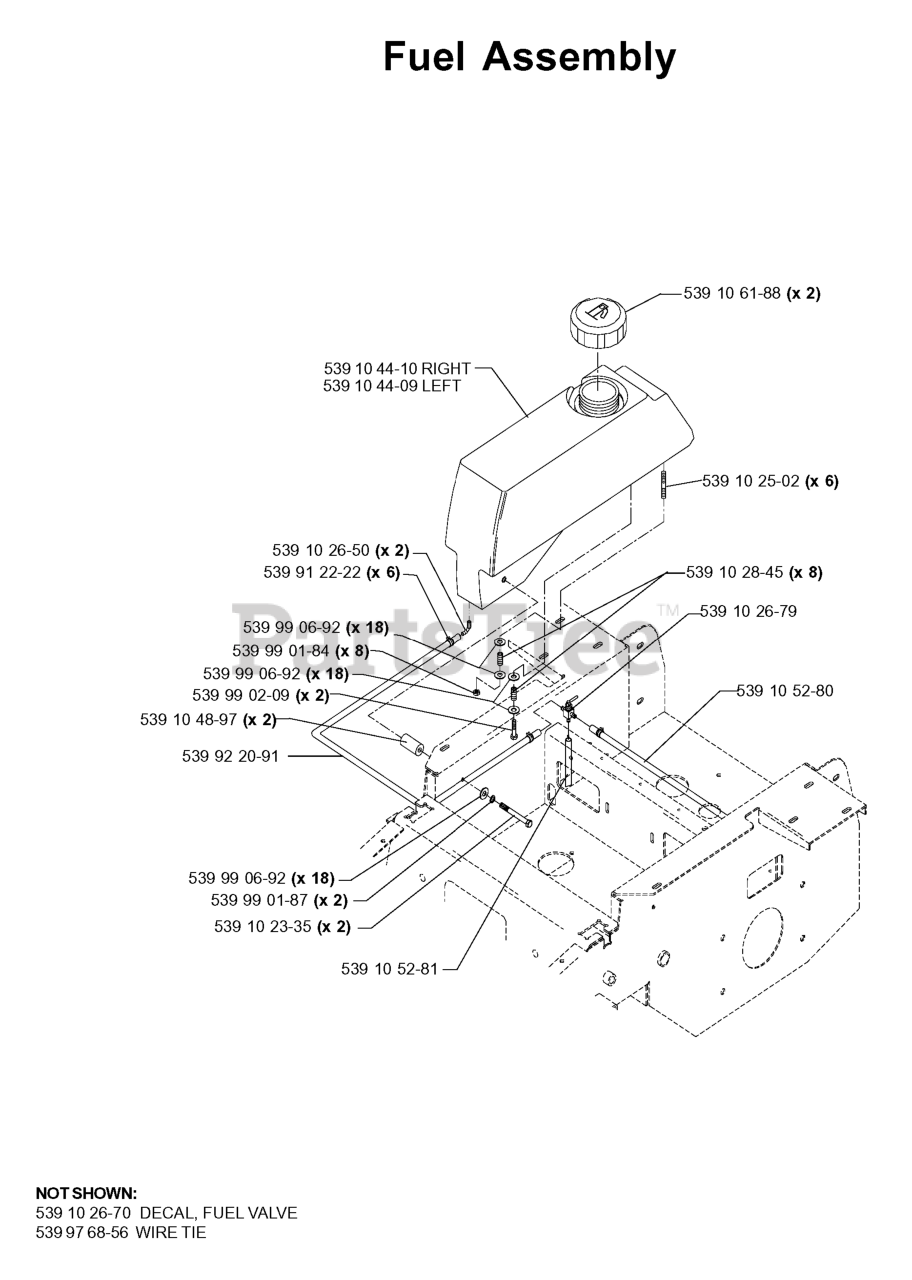

FUEL TANK Parts Diagram

  • Title

539 10 61-88

Husqvarna 539106188

FUEL CAP ANTI-SPLASH
(Superseded to 539130394)

$31.99

$

In Stock, only 1 left!

0

539 92 20-91

Husqvarna 539922091

FUEL LINE

$3.99

$

Usually ships in 3-10 days

0

539 97 68-56

Husqvarna 539976856

TIE, PLASTIC

Note: NOT SHOWN: WIRE TIE

$5.99

$

Usually ships in 3-10 days

0

539 10 48-97

Husqvarna 539104897

TANK SPACER

$7.99

$

Usually ships in 3-10 days

0

539 10 23-35

Husqvarna 539102335

HCS 5/16C X 4

$3.99

$

Usually ships in 3-10 days

0

539 10 25-02

Husqvarna 539102502

STUD, 5/16C

$10.99

$

In Stock, only 4 left!

0

539 10 44-10

Husqvarna 539104410

FUEL TANK RT

Note: RIGHT

$

$

Not available

539 10 52-81

Husqvarna 539105281

FUEL LINE 29.5"
(Superseded to 539105382)

$13.99

$

In Stock, only 2 left!

0

539 10 52-80

Husqvarna 539105280

HOSE 35"

$14.99

$

Usually ships in 3-10 days

0

539 91 22-22

Husqvarna 539912222

HOSE CLAMP

$4.99

$

In Stock, only 1 left!

0

539 99 02-09

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

539 10 26-79

Husqvarna 539102679

FUEL VALVE

$56.99

$

In Stock, only 2 left!

0

539 99 06-92

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

539 99 01-84

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

539 99 01-87

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

539 10 44-09

Husqvarna 539104409

LEFT TANK W/CUP HOLDER

Note: LEFT

$

$

Not available

539 10 26-50

Husqvarna 539102650

HOSE BARB 90 DEGREE

$

$

Not available

539 10 26-70

Husqvarna 539102670

DECAL, FUEL VALVE

Note: NOT SHOWN: DECAL, FUEL VALVE

$3.99

$

Usually ships in 3-10 days

0

539 10 28-45

Husqvarna 539102845

SPRING

$4.99

$

In Stock, only 1 left!

0
