LZ 25 C (968999310) - Husqvarna Zero-Turn Mower (2006-04) 61"/155CM CUTTING DECK Parts Diagram

Zero-Turn Mower

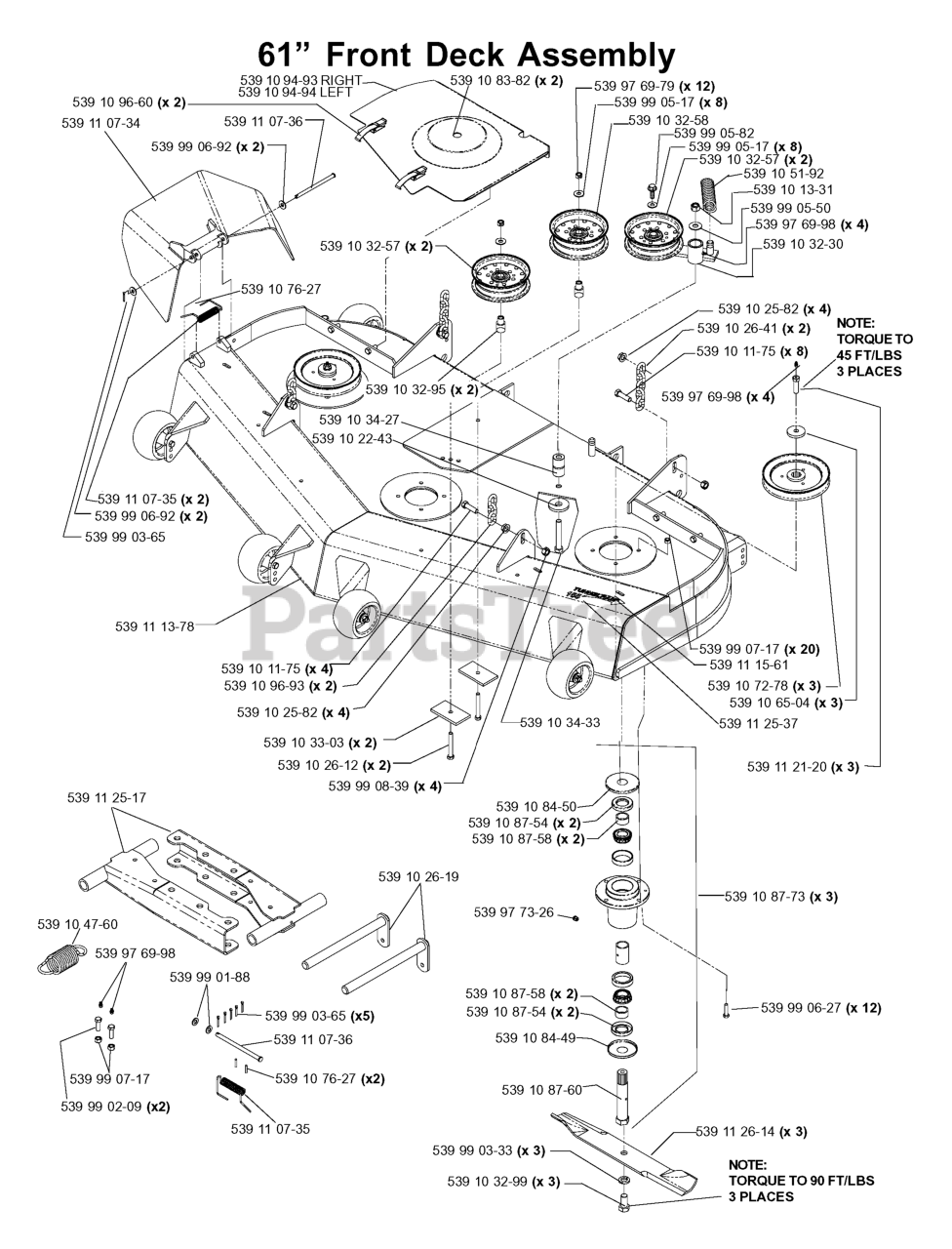

61"/155CM CUTTING DECK Parts Diagram

  • Title

539 10 76-27

Husqvarna 539107627

CAP-SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

539 97 69-98

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

539 97 69-79

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539 97 73-26

Husqvarna 539977326

PLUG-VENTED

$13.99

$

Usually ships in 3-10 days

0

539 10 25-82

Husqvarna 539102582

NUT 7/16C WHIZ

$

$

Not available

539 10 26-41

Husqvarna 539102641

LIFT CHAIN

$8.99

$

Usually ships in 3-10 days

0

539 10 47-60

Husqvarna 539104760

DECK LIFT SPRING

$

$

Not available

539 10 87-54

Husqvarna 539108754

SHAFT SEAL

$7.99

$

In Stock, Qty 9

0

539 99 05-17

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

539 10 84-50

Husqvarna 539108450

TOP DUST CAP

$5.99

$

In Stock, only 1 left!

0

539 99 08-39

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.99

$

In Stock, only 3 left!

0

539 10 94-93

Husqvarna 539109493

61 BELT SHIELD ASM - RH

Note: RIGHT

$206.99

$

Usually ships in 3-10 days

0

539 11 07-36

Husqvarna 539110736

PIN-CLEVIS 5/16 DIA X 5.19 ZD

$3.49

$

Usually ships in 3-10 days

0

539 10 32-58

Husqvarna 539103258

IDLER PULLEY (TALL)

$53.99

$

Usually ships in 3-10 days

0

539 99 05-50

Husqvarna 539990550

WASHER 1/2 FLAT

$3.99

$

Usually ships in 3-10 days

0

539 10 32-95

Husqvarna 539103295

IDLER BUSHING

$14.99

$

In Stock, only 4 left!

0

539 10 87-73

Husqvarna 539108773

SPINDLE ASSY - 52/61"
(Superseded to 966956101)

$148.99

$

In Stock, only 2 left!

0

539 10 96-93

Husqvarna 539109693

LIFT CHAIN - 3 LINK

$6.49

$

Usually ships in 3-10 days

0

539 11 07-35

Husqvarna 539110735

SPRING - TORSION
(Superseded to 596646001)

$4.99

$

In Stock, only 4 left!

0

539 10 13-31

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

539 10 32-57

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, only 1 left!

0

539 10 87-58

Husqvarna 539108758

SPACER

$

$

Not available

539 11 21-20

Husqvarna 539112120

HCS 7/16-20 GD 8 SPEC

$30.99

$

In Stock, only 1 left!

0

539 99 03-65

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

539 11 07-35

Husqvarna 539110735

SPRING - TORSION
(Superseded to 596646001)

$4.99

$

In Stock, only 4 left!

0

539 10 87-60

Husqvarna 539108760

52/61 SPINDLE - SPLINED SHAFT
(Superseded to 539112122)

$

$

Not available

539 11 13-78

Husqvarna 539111378

DECK W/DECALS 61" HUS

$

$

Not available

539 99 06-92

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

539 11 07-34

Husqvarna 539110734

DISCHARGE CHUTE 61"

$53.99

$

In Stock, only 2 left!

0

539 10 22-43

Husqvarna 539102243

WASHER, SUPPORT

$

$

Not available

539 10 94-94

Husqvarna 539109494

61 BELT SHIELD ASM - LH

Note: LEFT

$

$

Not available

539 10 65-04

Husqvarna 539106504

SPINDLE WASHER

$

$

Not available

539 10 83-82

Husqvarna 539108382

PLUG, BUTTON HOLE

$0.99

$

Usually ships in 3-10 days

0

539 11 25-37

Husqvarna 539112537

DECAL, 155

$3.99

$

Usually ships in 3-10 days

0

539 99 05-82

Husqvarna 539990582

4CS 3/8C X 1 SERRATED HEAD

$

$

Not available

539 10 84-49

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 15

0

539 10 26-12

Husqvarna 539102612

SCREW 3/8C X 2 3/4 HEX CAP

$5.99

$

In Stock, only 3 left!

0

539 11 26-14

Husqvarna 539112614

BLADE, 21"

$26.99

$

Usually ships in 3-10 days

0

539 99 06-27

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 2 left!

0

539 10 51-92

Husqvarna 539105192

DECK SPRING

$

$

Not available

539 11 25-17

Husqvarna 539112517

STRUT WELDMENT, TRD

$70.99

$

Usually ships in 3-10 days

0

539 99 02-09

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

539 11 15-61

Husqvarna 539111561

DECAL, TUNNEL RAM 8"

$8.99

$

Usually ships in 3-10 days

0

539 99 01-88

Husqvarna 539990188

FLAT WASHER 5/16 SAE
(Superseded to 819111116)

$3.99

$

In Stock, Qty 20+

0

539 99 07-17

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539 10 34-27

Husqvarna 539103427

PIVOT BUSHING

$9.49

$

In Stock, only 4 left!

0

539 99 07-17

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539 10 96-60

Husqvarna 539109660

DRAW LATCH

$14.99

$

Usually ships in 3-10 days

0

539 10 32-99

Husqvarna 539103299

HCS 5/8F X 1 1/4

$

$

Not available

539 10 32-30

Husqvarna 539103230

IDLER ARM

$

$

Not available

539 10 76-27

Husqvarna 539107627

CAP-SLEEVE
(Superseded to 532105304)

$4.99

$

In Stock, Qty 20+

0

539 10 11-75

Husqvarna 539101175

HCS 7/16C X 1 1/2

$3.99

$

Usually ships in 3-10 days

0

539 10 33-03

Husqvarna 539103303

SUPPORT PLATE
(Superseded to 539106504)

$

$

Not available

539 99 03-33

Husqvarna 539990333

LOCKWASHER 5/8

$1.99

$

In Stock, Qty 6

0

539 10 72-78

Husqvarna 539107278

RP PULLEY - 61"
(Superseded to 539112125)

$48.99

$

In Stock, only 2 left!

0

539 10 34-33

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

539 10 11-75

Husqvarna 539101175

HCS 7/16C X 1 1/2

$3.99

$

Usually ships in 3-10 days

0

539 97 69-98

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

539 99 03-65

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

539 10 26-19

Husqvarna 539102619

PIVOT PIN

$40.99

$

In Stock, only 3 left!

0
