LZ 25 (968999772) - Husqvarna Zero-Turn Mower (2008-05) WHEELS & TIRES Parts Diagram

Zero-Turn Mower

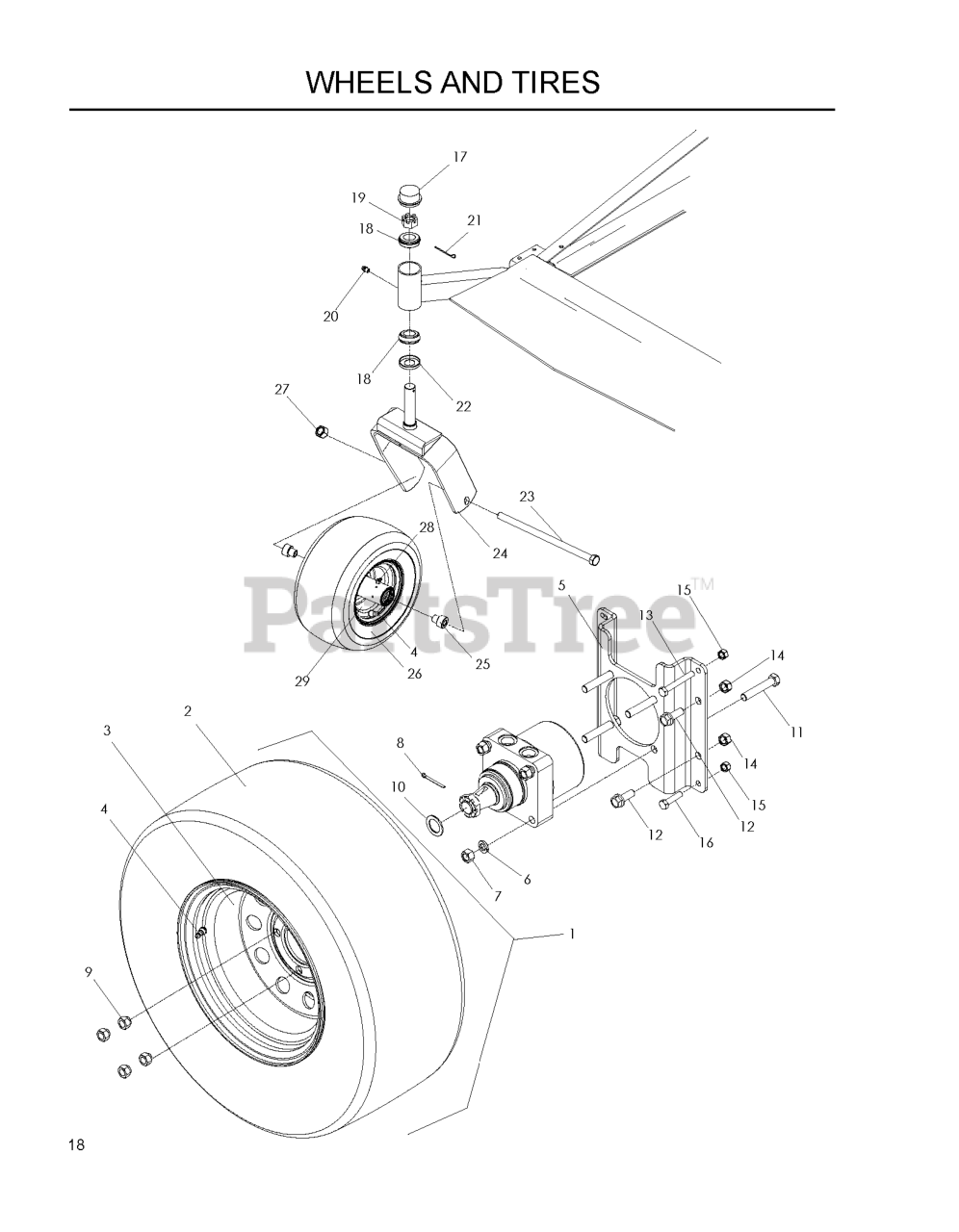

WHEELS & TIRES Parts Diagram

  • Title

9

Husqvarna 539101173

LUG NUT 1/2F

$

$

Not available

1

Husqvarna 539112592

WHEEL/TIRE.ASM.23X9.5-12.GREY

$

$

Not available

12

Husqvarna 539990622

HCS 1/2C X 1 1/4 SERRATED HEAD

$4.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539105982

CASTOR YOKE ORANGE

$303.99

$

Usually ships in 3-10 days

0

29

Husqvarna 539105523

RIM

$

$

Not available

2

Husqvarna 539112599

TIRE.TURF.MASTER.23X9.5-12

Note: RR

$194.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539105521

FRONT TIRE ASSY

$182.99

$

In Stock, only 3 left!

0

19

Husqvarna 539102852

NUT 1"C HEX SLOTTED

$

$

Not available

22

Husqvarna 539102851

SEAL

$7.99

$

In Stock, only 4 left!

0

13

Husqvarna 539990629

HCS 3/8C X 2 1/4
(Superseded to 874520636)

$3.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539990258

NUT HEX 1/2

$4.99

$

In Stock, Qty 14

0

14

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

21

Husqvarna 539102889

COTTER PIN 1/8 X 2
(Superseded to 539124704)

$

$

Not available

28

Husqvarna 539103300

ZERK

$4.99

$

In Stock, Qty 18

0

27

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

3

Husqvarna 510253001

RIM, 12 X 7, 1" NEG OFFSET

Note: RR

$

$

Not available

8

Husqvarna 539104288

PIN COTTER 4MM X 45MM

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539101332

HCS 1/2C X 2 3/4

$5.99

$

In Stock, only 3 left!

0

15

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

20

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

10

Husqvarna 539916561

MACHINE BUSHING

$3.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539105518

AXLE SPACER

$9.49

$

In Stock, only 4 left!

0

16

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 2 left!

0

18

Husqvarna 539102543

TAPERED ROLLER BRG

$40.99

$

In Stock, only 1 left!

0

17

Husqvarna 539102535

GREASE CAP
(Superseded to 595281301)

$5.99

$

Usually ships in 3-10 days

0

4

Husqvarna 539912234

VALVE STEM TR-412

$6.49

$

In Stock, Qty 20+

0

5

Husqvarna 539132300

MOUNT, MOTOR, WHEEL - BLK

$

$

Not available

23

Husqvarna 539105517

HEX SCREW 1/2-13 X 9.5 GR5

$

$

Not available

6

Husqvarna 539990254

WASHER 1/2" SPLIT LOCK

$3.99

$

Usually ships in 3-10 days

0
