LZ 25 (968999772) - Husqvarna Zero-Turn Mower (2008-05) CHASSIS / FRAME Parts Diagram

Zero-Turn Mower

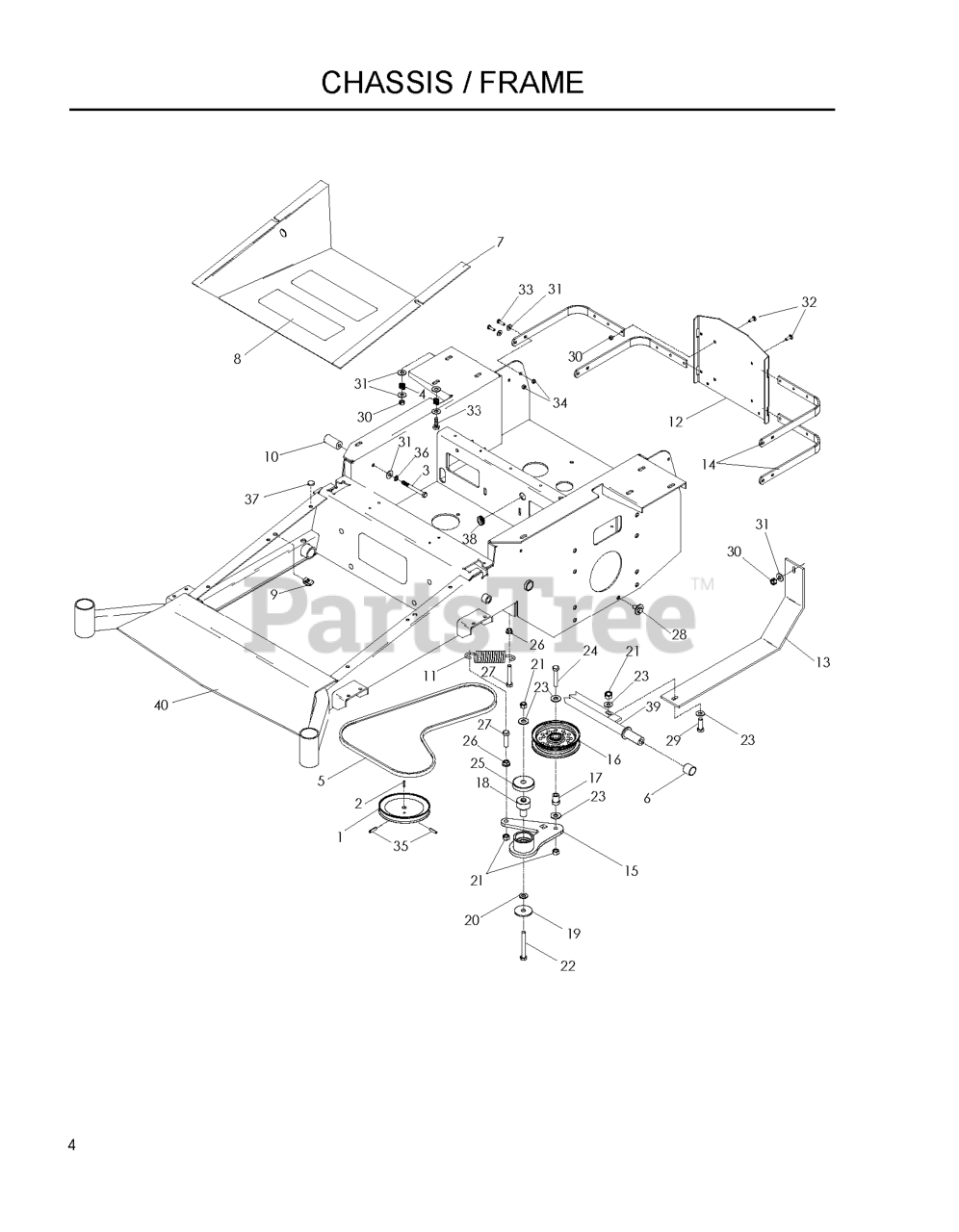

CHASSIS / FRAME Parts Diagram

  • Title

4

Husqvarna 539102845

SPRING

$4.99

$

In Stock, only 2 left!

0

26

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

31

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

16

Husqvarna 539976688

IDLER PULLEY

$

$

Not available

24

Husqvarna 539990588

HCS 3/8C X 2

$4.99

$

In Stock, Qty 10

0

32

Husqvarna 539990316

BOLT 5/16C X 3/4" CARRIAGE
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

36

Husqvarna 539990187

WASHER.LOCK.HVY.HLCL.SPR.5/16
(Superseded to 596238801)

$3.99

$

In Stock, only 4 left!

0

34

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

5

Husqvarna 539104334

PUMP BELT
(Superseded to 510201501)

$46.99

$

In Stock, Qty 10

0

14

Husqvarna 539106961

ENGINE SHROUD BRKT

$21.99

$

In Stock, only 1 left!

0

3

Husqvarna 539102335

HCS 5/16C X 4

$3.99

$

Usually ships in 3-10 days

0

20

Husqvarna 539990122

WASHER 3/8 SAE FLAT
(Superseded to 596565301)

$3.99

$

In Stock, Qty 20+

0

27

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0

28

Husqvarna 539119007

BLADE BOLT/WASHER

$10.99

$

In Stock, only 4 left!

0

8

Husqvarna 539977778

ANTI-SKID PAD

$6.49

$

Usually ships in 3-10 days

0

2

Husqvarna 539101177

KEY 5 MM SQ X 25 MM

$8.99

$

In Stock, only 2 left!

0

23

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

38

Husqvarna 539110433

GROMMET, FUEL LINE

$4.99

$

Usually ships in 3-10 days

0

1

Husqvarna 539101176

PULLEY

$

$

Not available

18

Husqvarna 539130205

PIVOT, BEARING

$4.99

$

In Stock, only 1 left!

0

19

Husqvarna 539111897

WASHER, 3/8 SPEC

$

$

Not available

29

Husqvarna 539990563

HCS 3/8-16X1.GRD.5.ZD

$1.99

$

Usually ships in 3-10 days

0

Husqvarna 539112981

DECK STOP

Note: NOT SHOWN

$21.99

$

Usually ships in 3-10 days

0

37

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

11

Husqvarna 539110655

SPRING

$14.99

$

Usually ships in 3-10 days

0

9

Husqvarna 539104763

U-CLIP 5/16-18 NUT RETAINER

$6.49

$

In Stock, Qty 12

0

12

Husqvarna 539110976

XP GUARD, BLACK

$35.99

$

Usually ships in 3-10 days

0

25

Husqvarna 539114662

SHIELD, DUST

$

$

Not available

6

Husqvarna 539104521

SPACER, STRUT

$9.99

$

Usually ships in 3-10 days

0

30

Husqvarna 539990184

NUT 5/16C CENTERLOCK

$3.99

$

Usually ships in 3-10 days

0

Husqvarna 539107476

BOLT 3/8-16 X 1.0

Note: NOT SHOWN

$6.49

$

In Stock, only 1 left!

0

17

Husqvarna 539976695

BUSHING, IDLER FLANGE

$

$

Not available

39

Husqvarna 539132302

CROSS SHAFT, STRUT - BLK

$

$

Not available

10

Husqvarna 539104897

TANK SPACER

$7.99

$

Usually ships in 3-10 days

0

33

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

15

Husqvarna 539130392

ARM, IDLER - W/BEARINGS

$48.99

$

Usually ships in 3-10 days

0

40

Husqvarna 539132232

FRAME W/DECALS 72"

$2077.99

$

Usually ships in 3-10 days

0

7

Husqvarna 539104721

FOOT PLATE WIDMT

$218.99

$

Usually ships in 3-10 days

0

35

Husqvarna 539110631

5/16 DIA ROLL PIN

$3.99

$

In Stock, Qty 16

0

21

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

22

Husqvarna 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 11

0

13

Husqvarna 539112634

SKID PLATE

$46.99

$

Usually ships in 3-10 days

0
