LZ 25 (968999310) - Husqvarna Zero-Turn Mower MOWER LIFT / DECK LIFT Parts Diagram

Zero-Turn Mower

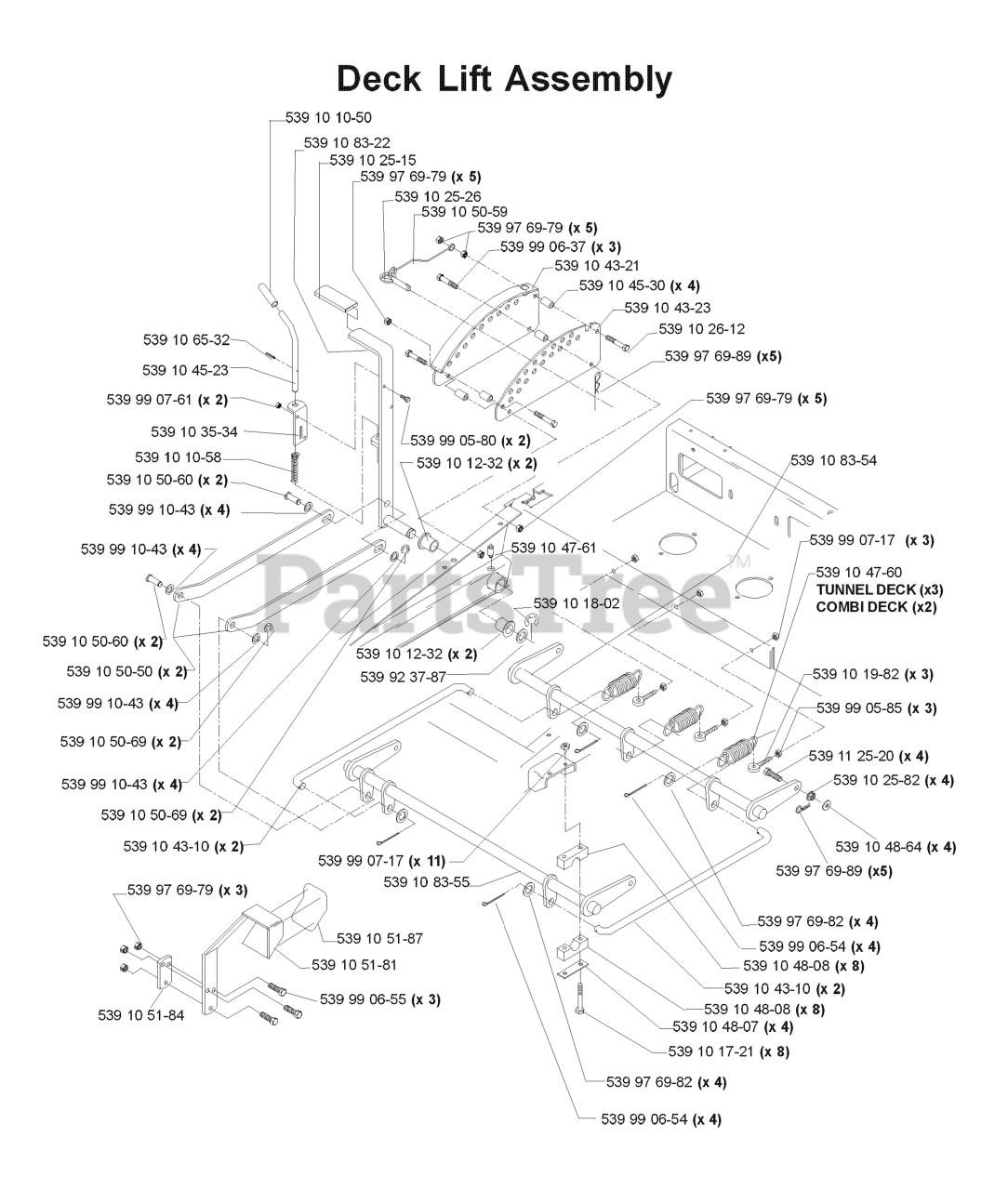

MOWER LIFT / DECK LIFT Parts Diagram

  • Title
539 10 83-22

Husqvarna 539108322

LIFT LEVER WELDMENT

$103.99

$

Usually ships in 3-10 days

0

539 97 69-79

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539 10 43-21

Husqvarna 539104321

ADJ. PLATE WLDMNT

$61.99

$

Usually ships in 3-10 days

0

539 99 07-17

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539 97 69-79

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

539 10 47-60

Husqvarna 539104760

DECK LIFT SPRING

$

$

Not available

539 10 18-02

Husqvarna 539101802

E-RING 7/8

$3.99

$

Usually ships in 3-10 days

0

539 10 48-07

Husqvarna 539104807

REINFORCEMENT BAR
(Superseded to 584392702)

$13.99

$

In Stock, only 4 left!

0

539 99 10-43

$3.99

$

Usually ships in 3-10 days

0

539 11 25-20

Husqvarna 539112520

HCS 7/16-14X1-1/2 GR5 ZD SPEC

$

$

Not available

539 97 69-89

Husqvarna 539976989

HAIRPIN #4

$3.99

$

Usually ships in 3-10 days

0

539 10 45-30

Husqvarna 539104530

DECK LIFT SPACER

$7.49

$

Usually ships in 3-10 days

0

539 10 10-58

$4.99

$

In Stock, only 2 left!

0

539 10 48-64

Husqvarna 539104864

WASHER 7/16 FLAT ZD
(Superseded to 596437601)

$3.99

$

Usually ships in 3-10 days

0

539 10 45-23

$

$

Not available

539 10 50-50

Husqvarna 539105050

LIFT LINKAGE,PAINTED

$23.99

$

Usually ships in 3-10 days

0

539 92 37-87

Husqvarna 539923787

BSHG .875 X 1.375 X .074 ZD

$3.99

$

In Stock, only 1 left!

0

539 10 10-50

$3.99

$

In Stock, only 4 left!

0

539 10 51-81

Husqvarna 539105181

LIFT PEDAL BLK

$

$

Not available

539 10 48-08

Husqvarna 539104808

PILLOW BLOCK

$9.49

$

Usually ships in 3-10 days

0

539 10 83-54

Husqvarna 539108354

SHAFT LIFT REAR

$103.99

$

Usually ships in 3-10 days

0

539 10 43-23

Husqvarna 539104323

ADJ. PLATE PAINTED

$23.99

$

Usually ships in 3-10 days

0

539 10 26-12

Husqvarna 539102612

SCREW 3/8C X 2 3/4 HEX CAP

$5.99

$

In Stock, only 3 left!

0

539 10 19-82

Husqvarna 539101982

EYEBOLT, RH

$43.99

$

Usually ships in 3-10 days

0

539 10 50-60

Husqvarna 539105060

CLEVIS PIN

$4.99

$

Usually ships in 3-10 days

0

539 97 69-82

Husqvarna 539976982

WASHER 5/8 FLAT

$4.99

$

Usually ships in 3-10 days

0

539 10 51-87

Husqvarna 539105187

ANTI-SKID PAD

$3.49

$

In Stock, only 2 left!

0

539 10 17-21

Husqvarna 539101721

HCS 5/16C X 2-3/4

$4.99

$

In Stock, Qty 7

0

539 10 43-10

Husqvarna 539104310

CONNECTING LINK

$21.99

$

In Stock, only 1 left!

0

539 10 83-55

Husqvarna 539108355

LIFT SHAFT

$

$

Not available

539 99 05-80

Husqvarna 539990580

HCS 1/4C X 3/4 HCS

$3.99

$

Usually ships in 3-10 days

0

539 10 25-15

$

$

Not available

539 10 12-32

Husqvarna 539101232

BUSHING, FLANGED

$13.99

$

In Stock, Qty 7

0

539 10 25-26

$21.99

$

Usually ships in 3-10 days

0

539 99 05-85

Husqvarna 539990585

NUT 5/16C WHIZ

$3.99

$

Usually ships in 3-10 days

0

539 10 47-61

Husqvarna 539104761

GREASE ZERK LONG

$3.99

$

Usually ships in 3-10 days

0

539 99 07-17

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

539 99 06-54

Husqvarna 539990654

COTTER PIN

$3.99

$

Usually ships in 3-10 days

0

539 99 06-37

Husqvarna 539990637

HCS 3/8C X 2 1/2

$1.99

$

Usually ships in 3-10 days

0

539 10 50-69

Husqvarna 539105069

E-RING 5/8

$3.99

$

Usually ships in 3-10 days

0

539 99 07-61

Husqvarna 539990761

NUT 1/4C CENTER LOCK

$4.99

$

In Stock, only 4 left!

0

539 10 65-32

$3.99

$

In Stock, Qty 5

0

539 10 51-84

Husqvarna 539105184

TIGHTENING PLATE BLK

$46.99

$

Usually ships in 3-10 days

0

539 10 25-82

Husqvarna 539102582

NUT 7/16C WHIZ

$

$

Not available

539 10 35-34

Husqvarna 539103534

PIN MT, UPPER

$27.99

$

Usually ships in 3-10 days

0

539 10 50-59

$10.99

$

In Stock, only 1 left!

0

539 99 06-55

Husqvarna 539990655

HCS 3/8C X 1 1/2

$4.99

$

In Stock, only 2 left!

0
