LZ 25 (968999310) - Husqvarna Zero-Turn Mower (2009-06) IGNITION SYSTEM Parts Diagram

Zero-Turn Mower

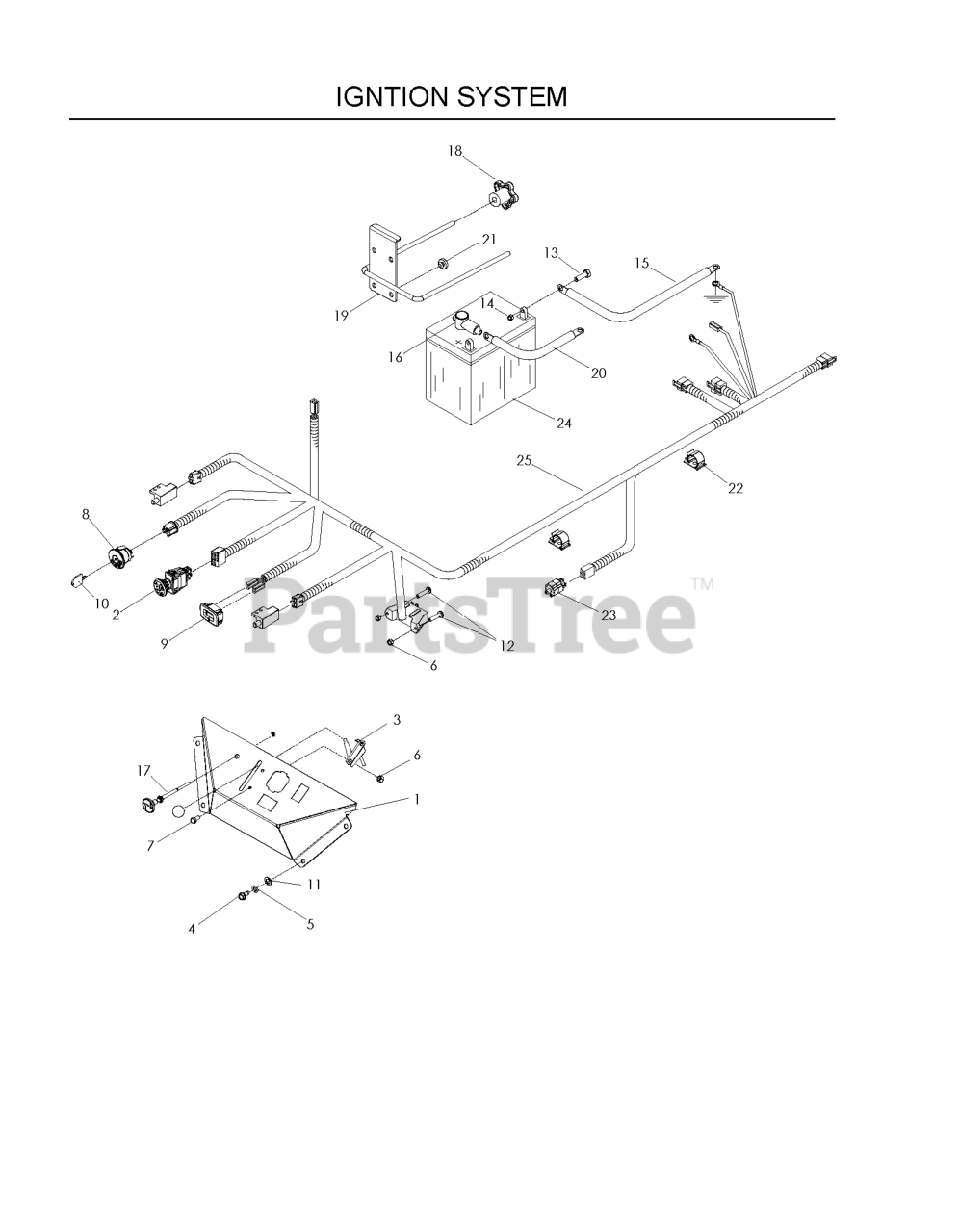

IGNITION SYSTEM Parts Diagram

  • Title

10

Husqvarna 539107544

KEY
(Superseded to 532140401)

$6.99

$

In Stock, Qty 8

0

18

Husqvarna 539105169

KNOB

$9.49

$

Usually ships in 3-10 days

0

16

Husqvarna 539102759

INSULATOR

$4.99

$

In Stock, only 2 left!

0

19

Husqvarna 539105728

BATTERY HOLD DOWN

$

$

Not available

17

Husqvarna 539130208

CONTROL-CHOKE 51"
(Superseded to 539109954)

$43.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539102436

BATTERY, 12 V 330 AMP
(Superseded to 579411601)

$

$

Not available

5

Husqvarna 539990052

LOCKWASHER 1/4"

$3.99

$

Usually ships in 3-10 days

0

3

Husqvarna 539102732

THROTTLE CONTROL W/BALL KNOB

$

$

Not available

4

Husqvarna 539990362

SCREW 1/4 X 5/8

$4.99

$

In Stock, Qty 12

0

20

Husqvarna 539104974

POST.CABLE LONG

$

$

Not available

22

Husqvarna 539110815

PUSH-MOUNT WIRE CLIP

$3.49

$

In Stock, only 1 left!

0

23

Husqvarna 539113792

SWITCH, BRAKE 3P

$17.99

$

In Stock, Qty 12

0

1

Husqvarna 539110953

CONSLE, ORANGE

$

$

Not available

8

Husqvarna 539107541

RP IGNITION SWITCH
(Superseded to 532175566)

$26.99

$

In Stock, Qty 7

0

21

Husqvarna 539102587

GROMMET, BUMPER

$5.99

$

In Stock, Qty 15

0

11

Husqvarna 539990598

WASHER 1/4 FLAT

$

$

Not available

15

Husqvarna 539102758

CABLE-NEGATIVE

$

$

Not available

7

Husqvarna 539990411

HCS #10-24 X 1/2

$3.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539976977

NUT 10-24 NYLOC

$

$

Not available

2

Husqvarna 539131627

SWITCH, PTO 10 AMP
(Superseded to 597520401)

$100.99

$

In Stock, Qty 5

0

9

Husqvarna 539110074

HOUR METER
(Superseded to 576179401)

$34.99

$

In Stock, Qty 6

0

14

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

25

Husqvarna 539113791

HARNESS, WIRING LZ/IZ

$

$

Not available

12

Husqvarna 539102617

SCREW, #1--24 X 1/2 SLOTTED

$3.99

$

In Stock, only 3 left!

0

13

Husqvarna 539976934

HCS 5/16C X 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0
