LZ 25 (968999310) - Husqvarna Zero-Turn Mower (2009-06) 61"/155CM CUTTING DECK 2 Parts Diagram

Zero-Turn Mower

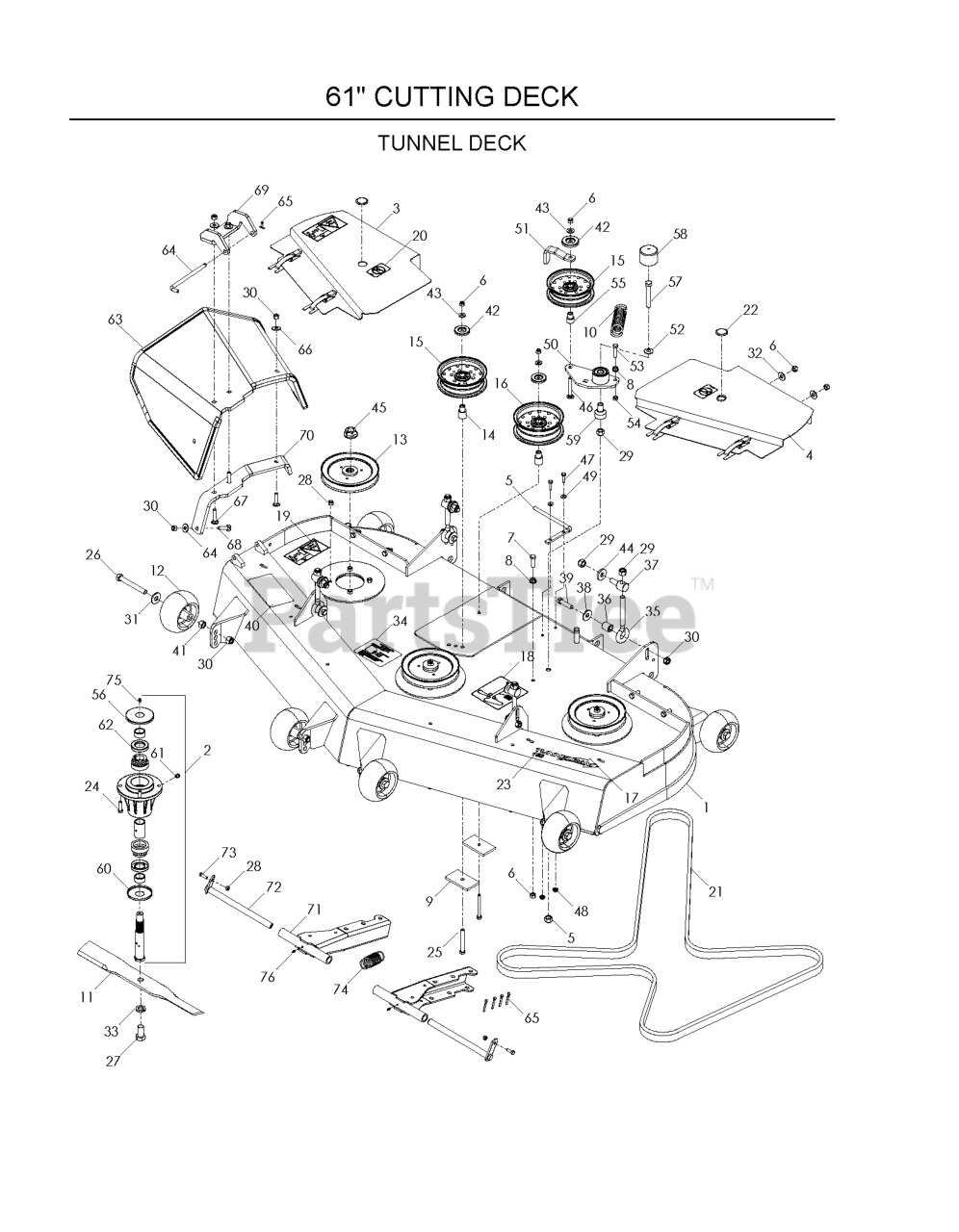

61"/155CM CUTTING DECK 2 Parts Diagram

  • Title

10

Husqvarna 539105192

DECK SPRING

$

$

Not available

64

Husqvarna 539131813

PIN, CHUTE PIVOT

$7.99

$

Usually ships in 3-10 days

0

56

Husqvarna 539108450

TOP DUST CAP

$5.99

$

In Stock, only 1 left!

0

60

Husqvarna 539108449

BOTTOM DUST CAP

$4.99

$

In Stock, Qty 15

0

8

Husqvarna 539990613

NUT 3/8C WHIZ

$3.99

$

Usually ships in 3-10 days

0

22

Husqvarna 539111641

BUTTON PLUG - 1" NOM.

$0.99

$

Usually ships in 3-10 days

0

72

Husqvarna 539102619

PIVOT PIN

$40.99

$

In Stock, only 3 left!

0

3

Husqvarna 510202102

BELT SHIELD RH 61 EU

$

$

Not available

66

Husqvarna 539990692

WASHER 5/16 FLAT
(Superseded to 819121414)

$3.49

$

Usually ships in 3-10 days

0

53

Husqvarna 539107042

HCS 3/8-16 X 1-1/2

$3.99

$

In Stock, Qty 6

0

13

Husqvarna 539112125

PULLEY, 61

$48.99

$

In Stock, only 2 left!

0

74

Husqvarna 539104760

DECK LIFT SPRING

$

$

Not available

73

Husqvarna 539990209

HCS 5/16C X 1

$1.99

$

Usually ships in 3-10 days

0

49

Husqvarna 539990055

WASHER 1/4 SAE

$3.99

$

In Stock, Qty 19

0

28

Husqvarna 539990717

NUT 5/16 NYLOC
(Superseded to 596583702)

$3.99

$

In Stock, Qty 20+

0

57

Husqvarna 539103433

HCS 1/2C X 3 1/4

$6.99

$

In Stock, only 4 left!

0

7

Husqvarna 539976941

HCS 3/8C X 1 1/4 GR5

$4.99

$

In Stock, only 2 left!

0

48

Husqvarna 539108735

NUT 1/4-20 HEX FLG LK ZD

$4.99

$

In Stock, only 2 left!

0

38

Husqvarna 539112484

SPRING WASHER - .50

$9.99

$

Usually ships in 3-10 days

0

34

Husqvarna 539105232

DECAL, ANTI SCALP

$3.99

$

Usually ships in 3-10 days

0

32

Husqvarna 539990517

WASHER 3/8 FLAT

$3.99

$

Usually ships in 3-10 days

0

52

Husqvarna 539115528

CONTACT BELLSPR 1/2

$3.99

$

Usually ships in 3-10 days

0

21

Husqvarna 510201301

BELT, DECK 61

$

$

Not available

20

Husqvarna 539105743

DECAL, NO STEP
(Superseded to 581724301)

$4.99

$

In Stock, only 3 left!

0

50

Husqvarna 539130391

ARM-IDLER W/BRG

$

$

Not available

15

Husqvarna 539103257

IDLER PULLEY

$74.99

$

In Stock, only 1 left!

0

69

Husqvarna 539130923

PIVOT BRACKET - RUBBER CHUTE

$43.99

$

Usually ships in 3-10 days

0

51

Husqvarna 539114981

GUIDE, BELT

$

$

Not available

37

Husqvarna 505256501

SWIVEL, DECK HEIGHT ADJ

$18.99

$

Usually ships in 3-10 days

0

76

Husqvarna 539976998

ZERK
(Superseded to 596899901)

$3.49

$

In Stock, Qty 20+

0

5

Husqvarna 522629801

BELT GUIDE

$

$

Not available

31

Husqvarna 539109554

WASH USS FLAT 1/2

$

$

Not available

14

Husqvarna 539103295

IDLER BUSHING

$14.99

$

In Stock, only 4 left!

0

75

Husqvarna 539101474

ZERK

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 539114404

SPACER

$7.99

$

Usually ships in 3-10 days

0

67

Husqvarna 539100472

BOLT, CARRIAGE 5/16X1-1/4

$3.99

$

In Stock, Qty 20+

0

68

Husqvarna 539102933

RHSNB 5/16-18 X 1-1/2 GR 5 ZD

$

$

Not available

16

Husqvarna 521966601

PULLEY - IDLER, 6IN WIDE

$72.99

$

Usually ships in 3-10 days

0

12

Husqvarna 539107610

GAUGE WHEEL
(Superseded to 532133957)

$13.99

$

In Stock, Qty 10

0

70

Husqvarna 539130925

BRACKET, REINF-CHUTE

$159.99

$

In Stock, only 1 left!

0

39

Husqvarna 539108073

HCS 7/16 - 14 X 1 3/4

$3.99

$

Usually ships in 3-10 days

0

11

Husqvarna 539112614

BLADE, 21"

$26.99

$

Usually ships in 3-10 days

0

6

Husqvarna 539976979

NUT 3/8-16 NYLOC
(Superseded to 596240901)

$3.99

$

In Stock, Qty 20+

0

65

Husqvarna 539990365

RP_COTTER PIN 1/8 X 3/4
(Superseded to 876020412)

$6.49

$

In Stock, Qty 20+

0

45

Husqvarna 539130653

NUT FLANGE 3/4-16
(Superseded to 598490501)

$9.49

$

In Stock, only 2 left!

0

41

Husqvarna 539990258

NUT HEX 1/2

$4.99

$

In Stock, Qty 14

0

4

Husqvarna 510202202

BELT SHIELD LH EU 61

$

$

Not available

35

Husqvarna 539119227

BOLT, EYE

$18.99

$

In Stock, only 3 left!

0

17

Husqvarna 539111561

DECAL, TUNNEL RAM 8"

$8.99

$

Usually ships in 3-10 days

0

2

Husqvarna 539131383

HOUSING ASM, 52/61
(Superseded to 966956101)

$148.99

$

In Stock, only 2 left!

0

44

Husqvarna 539105550

Washer

$

$

Not available

54

Husqvarna 539109332

NUT 3/8-16 HEX JAM
(Superseded to 596433501)

$3.99

$

In Stock, only 3 left!

0

40

Husqvarna 539130245

DECAL, DISCHARGE, MULTILINGUAL

$2.99

$

Usually ships in 3-10 days

0

55

Husqvarna 539130242

BUSHING, IDLER

$3.99

$

In Stock, only 4 left!

0

71

Husqvarna 539112517

STRUT WELDMENT, TRD

$70.99

$

Usually ships in 3-10 days

0

26

Husqvarna 539108366

HCS 1/2-13 X 4 GR 5 ZD

$6.99

$

In Stock, Qty 17

0

33

Husqvarna 539990333

LOCKWASHER 5/8

$1.99

$

In Stock, Qty 6

0

27

Husqvarna 539103299

HCS 5/8F X 1 1/4

$

$

Not available

19

Husqvarna 539105746

DECAL, EURO SEVERING

$3.99

$

In Stock, only 3 left!

0

42

Husqvarna 510254501

DUST SHIELD

$

$

Not available

29

Husqvarna 539101331

NUT 1/2-13 HEX NYLOC ZD
(Superseded to 596135601)

$4.99

$

In Stock, Qty 20+

0

18

Husqvarna 539112620

DECAL, BELT ROUTING

$7.49

$

In Stock, only 4 left!

0

43

Husqvarna 522023401

WASHER, 3/8 THICK

$4.99

$

In Stock, Qty 20+

0

61

Husqvarna 539977326

PLUG-VENTED

$13.99

$

Usually ships in 3-10 days

0

58

Husqvarna 539114823

CAP, VINYL

$3.99

$

In Stock, only 1 left!

0

30

Husqvarna 539990839

NUT 7/16C CENTERLOCK

$3.99

$

In Stock, only 3 left!

0

1

Husqvarna 539111378

DECK W/DECALS 61" HUS

$

$

Not available

25

Husqvarna 539101341

HCS 3/8C X 3

$5.99

$

In Stock, Qty 12

0

63

Husqvarna 539130779

CHUTE, RUBBER DISCHARGE 52/61"

$68.99

$

Usually ships in 3-10 days

0

62

Husqvarna 539108754

SHAFT SEAL

$7.99

$

In Stock, Qty 7

0

46

Husqvarna 539130235

RHSNB 3/8-16 X 2.75

$3.99

$

Usually ships in 3-10 days

0

24

Husqvarna 539990627

HCS 5/16C X 1 1/4

$4.99

$

In Stock, only 1 left!

0

59

Husqvarna 510206301

PIVOT, BEARING

$6.49

$

In Stock, only 2 left!

0

47

Husqvarna 539990548

HCS 1/4 X 1

$3.99

$

In Stock, only 1 left!

0

9

Husqvarna 539103303

SUPPORT PLATE
(Superseded to 539106504)

$

$

Not available

23

Husqvarna 539112537

DECAL, 155

$3.99

$

Usually ships in 3-10 days

0
