LZ 20H107 RBK (960610332-02) - Lazer Lawn Tractor (2012-11) SEAT Parts Diagram

Lawn Tractor

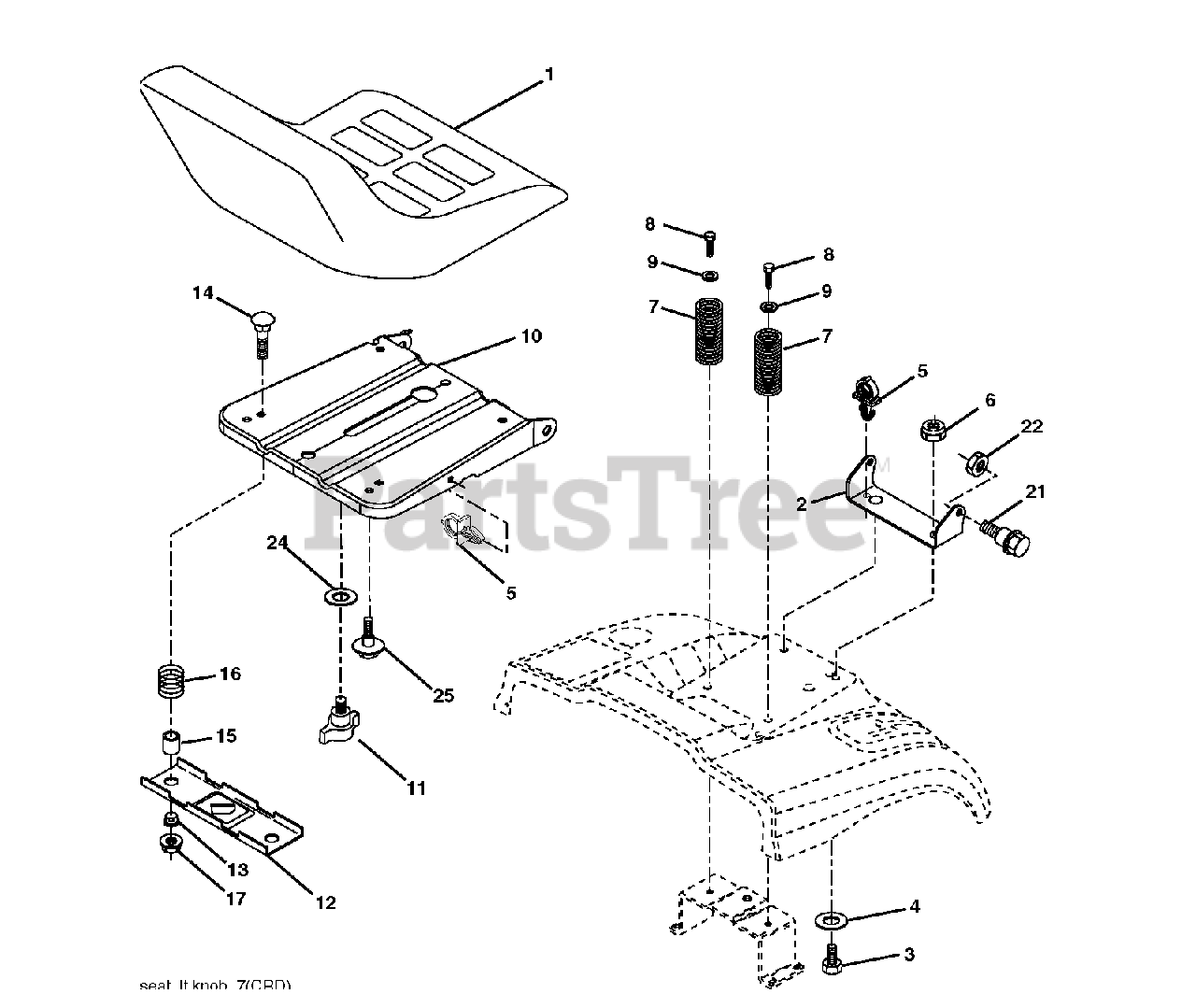

SEAT Parts Diagram

  • Title

1

Electrolux/AYP 532401043

SEAT.XG150.BLK.KB/SLD.NO-LOGO

$

$

Not available

2

Electrolux/AYP 532140551

SEAT PIVOT BRKT

$6.49

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 871110616

BOLT, HEX 3/8-16X1

$4.99

$

In Stock, only 2 left!

0

4

Electrolux/AYP 819131610

WASHER PM

$6.49

$

In Stock, Qty 7

0

5

Electrolux/AYP 532145006

PUSH CLIP

$6.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 532124181

SPRING COMPRESSION
(Superseded to 587613301)

$6.99

$

In Stock, only 4 left!

0

8

Electrolux/AYP 817000616

SCREW 3/8-16X1

$7.49

$

In Stock, only 3 left!

0

9

Electrolux/AYP 819131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 532195530

PAN.ASM.SEAT.1SLOT

$21.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532166369

KNOB.SEAT.ADJ.WINGNUT

$10.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 532174648

BRKT.MNTNG.SWITCH.SEAT

$10.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 532121248

BUSHING

$6.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 872050412

BOLT.ROUND.HEAD.SQUARE.NECK

$6.49

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 532121249

SPACER SPLIT

$6.49

$

In Stock, only 2 left!

0

16

Electrolux/AYP 532123740

SPRING COMPRESSED

$6.49

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 532123976

NUT T
(Superseded to 586668901)

$4.99

$

In Stock, Qty 16

0

21

Electrolux/AYP 532171852

BOLT.SHOULDER.5/16-18
(Superseded to 587907801)

$4.99

$

In Stock, Qty 8

0

22

Electrolux/AYP 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

24

Electrolux/AYP 819171912

WASHER

$7.49

$

In Stock, only 1 left!

0

25

Electrolux/AYP 532127018

BOLT,SHOULD

$7.49

$

Usually ships in 3-10 days

0
