LZ 175H107 RBK (960610331-01) - Lazer Lawn Tractor (2012-11) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

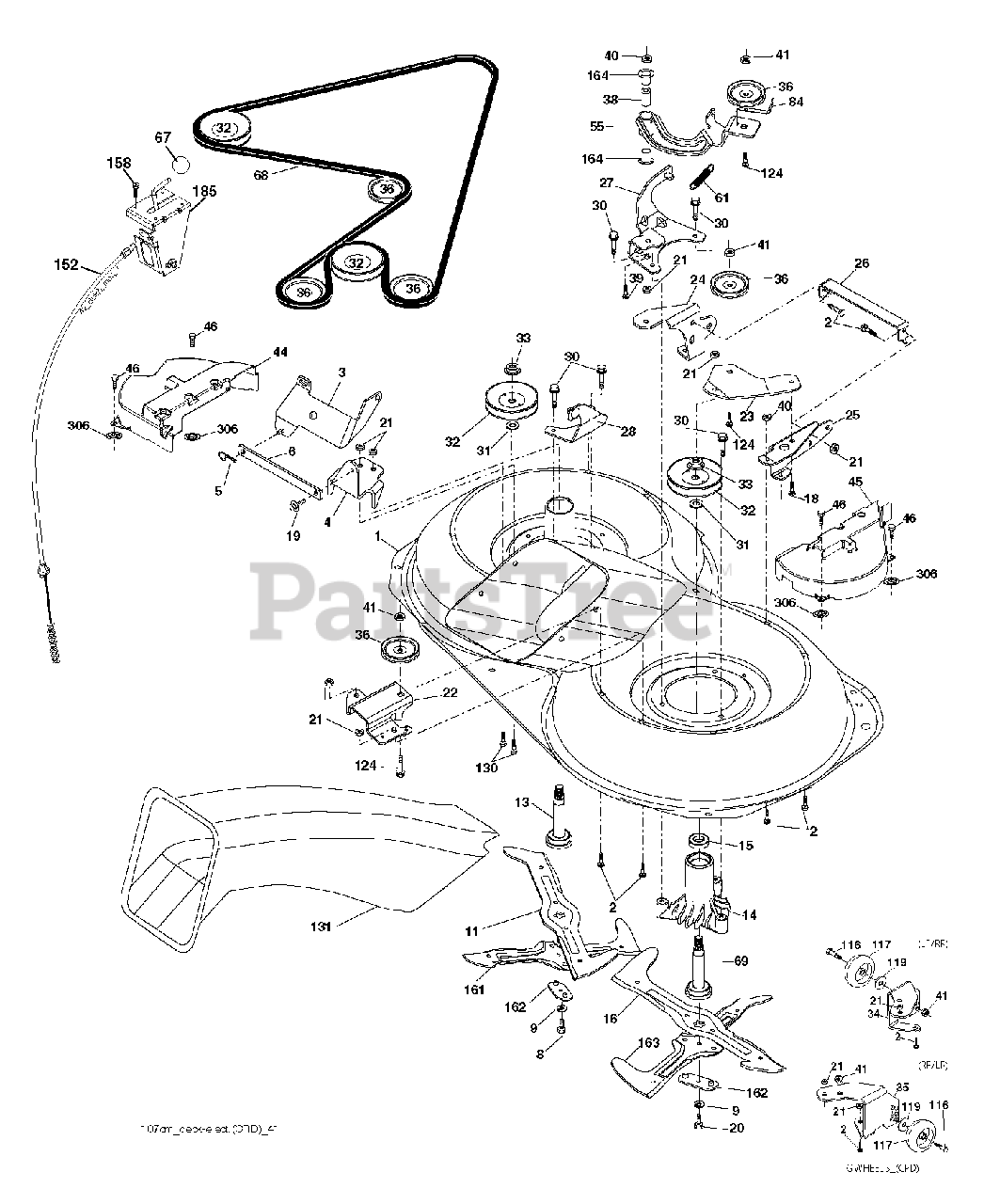

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Electrolux/AYP 532169160

HOUSING

$

$

Not available

2

Electrolux/AYP 872140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 532431864

BRACKET.ASM.BAR.SWAY.CHASS

$24.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 532169167

BRACKET

$

$

Not available

5

Electrolux/AYP 532124670

RETAINER-SPRNG RB
(Superseded to 532085902)

$

$

Not available

6

Electrolux/AYP 532165557

BAR SWAY
(Superseded to 165557)

$

$

Not available

8

Electrolux/AYP 532181712

Bolt, 3/8-24 X 1.25 Gr8
(Superseded to 583116901)

$7.49

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 810030600

LOCKWASHER
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532180583

BLADE.3N1.LH.CRD

$36.99

$

In Stock, only 1 left!

0

13

Electrolux/AYP 532137645

SHAFT ASM VENT
(Superseded to 532137646)

$34.99

$

In Stock, only 3 left!

0

14

Electrolux/AYP 532128774

HSG MANDREL

$34.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 532110485

BEARING

$13.99

$

In Stock, Qty 14

0

16

Electrolux/AYP 532180584

BLADE.3N1.RH.CRD

$72.99

$

In Stock, only 1 left!

0

18

Electrolux/AYP 872110606

BOLT

$4.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 532132827

BOLT SHD 5/16-18

$

$

Not available

20

Electrolux/AYP 532181713

BOLT.3/8-24X1.25GR8. LHTHRD
(Superseded to 583117001)

$4.99

$

In Stock, Qty 11

0

21

Electrolux/AYP 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

22

Electrolux/AYP 532169165

BRACKET
(Superseded to 169165)

$

$

Not available

23

Electrolux/AYP 532169166

BRACKET
(Superseded to 169166)

$26.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 532413436

NO LONGER AVAILABLE
(Superseded to 583341901)

$27.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 532400105

NO LONGER AVAILABLE
(Superseded to 583259001)

$48.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 532400110

NO LONGER AVAILABLE
(Superseded to 583259301)

$34.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 532169172

BRACKET
(Superseded to 169172)

$28.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 532169168

NO LONGER AVAILABLE
(Superseded to 583029401)

$27.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8

0

32

Electrolux/AYP 532198145

NO LONGER AVAILABLE

$

$

Not available

33

Electrolux/AYP 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

34

Electrolux/AYP 532400103

NO LONGER AVAILABLE
(Superseded to 583258801)

$26.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 532400104

NO LONGER AVAILABLE
(Superseded to 583258901)

$22.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 532146763

PULLEY.IDLER.4.25
(Superseded to 593787801)

$31.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 532169851

SPACER

$10.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 872110622

BOLT

$4.99

$

In Stock, Qty 9

0

40

Electrolux/AYP 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, only 4 left!

0

41

Electrolux/AYP 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

44

Electrolux/AYP 532432773

NO LONGER AVAILABLE

$

$

Not available

45

Electrolux/AYP 532432772

NO LONGER AVAILABLE

$

$

Not available

46

Electrolux/AYP 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

55

Electrolux/AYP 532169849

ARM IDLER

$34.99

$

Usually ships in 3-10 days

0

61

Electrolux/AYP 532199487

NO LONGER AVAILABLE
(Superseded to 583252701)

$9.49

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 532106932

KNOB T (3/8 HOLE)

$7.99

$

In Stock, Qty 5

0

68

Electrolux/AYP 532402009

HEX-BELT 107 MOWER
(Superseded to 584897001)

$74.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 532165482

SHAFT.ASM.W/LWR.BRG.RH.THREAD

$68.99

$

Usually ships in 3-10 days

0

84

Electrolux/AYP 532156085

KEEPER, BELT IDLER
(Superseded to 532173968)

$

$

Not available

116

Electrolux/AYP 532193406

BOLT.SHOULDER.3/8-16X3-5/8
(Superseded to 596434404)

$5.99

$

In Stock, Qty 20+

0

117

Electrolux/AYP 532174873

WHEEL. GUAGE RALLY
(Superseded to 589527301)

$10.99

$

Usually ships in 3-10 days

0

119

Electrolux/AYP 819132012

WASHER

$1.99

$

Usually ships in 3-10 days

0

124

Electrolux/AYP 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

130

Electrolux/AYP 872110506

BOLT

$7.49

$

In Stock, Qty 20+

0

131

Electrolux/AYP 532165661

CHUTE BAGGER

$93.99

$

Usually ships in 3-10 days

0

152

Electrolux/AYP 532176074

NO LONGER AVAILABLE

$

$

Not available

158

Electrolux/AYP 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

161

Electrolux/AYP 532446993

No Description Available

$

$

Not available

162

Electrolux/AYP 532446995

ADAPTER ADAPTER.CROSS
(Superseded to 583588901)

$6.99

$

Usually ships in 3-10 days

0

163

Electrolux/AYP 532180425

NO LONGER AVAILABLE
(Superseded to 583101701)

$66.99

$

Usually ships in 3-10 days

0

164

Electrolux/AYP 532124937

BRNG T
(Superseded to 532003366)

$4.99

$

In Stock, Qty 20+

0

185

Electrolux/AYP 532188234

HEAD ASM. CABLE CLUTCH

$53.99

$

In Stock, only 1 left!

0

306

Electrolux/AYP 532423062

PALNUT 1/4

$4.99

$

In Stock, only 2 left!

0

--

Electrolux/AYP 532181857

NO LONGER AVAILABLE
(Superseded to 583118201)

Note: NOT SHOWN

$91.99

$

Usually ships in 3-10 days

0

--

Electrolux/AYP 532181858

NO LONGER AVAILABLE
(Superseded to 583118301)

Note: NOT SHOWN

$96.99

$

Usually ships in 3-10 days

0

--

Electrolux/AYP 532432502

NO LONGER AVAILABLE

Note: NOT SHOWN

$

$

Not available
