LZ 165107 H (960110304-00) - Lazer Lawn Tractor (2011-12) MOWER DECK / CUTTING DECK Parts Diagram

Lawn Tractor

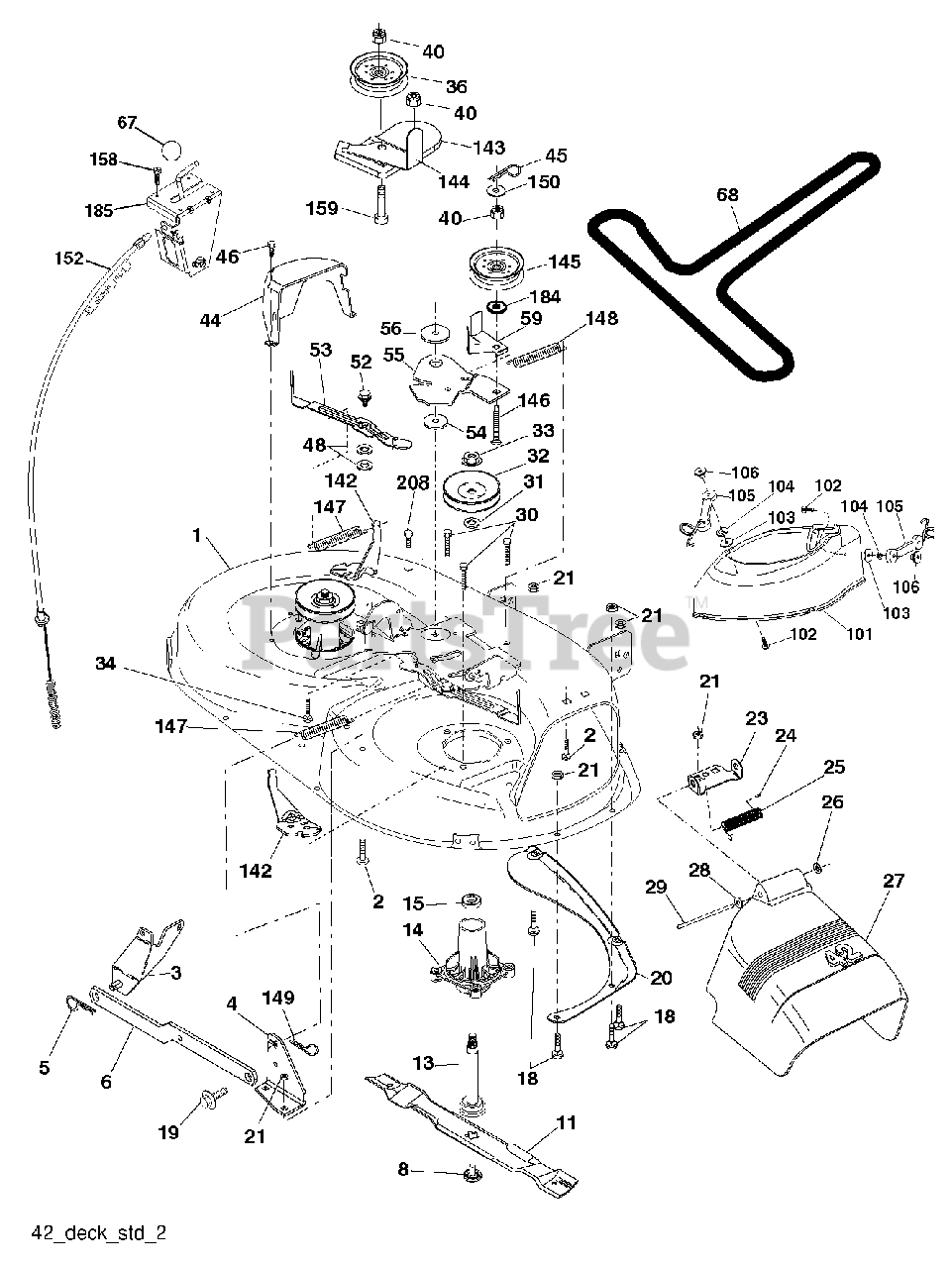

MOWER DECK / CUTTING DECK Parts Diagram

  • Title

1

Electrolux/AYP 532165892

42" DECK KIT
(Superseded to 532176027)

$399.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 872140506

BOLT
(Superseded to 595901601)

$3.99

$

In Stock, Qty 20+

0

3

Electrolux/AYP 532138017

BRKT ASM SWAY BAR

$12.99

$

Usually ships in 3-10 days

0

4

Electrolux/AYP 532165460

BRACKET SWAY BAR 42" DECK

$13.99

$

In Stock, only 1 left!

0

5

Electrolux/AYP 532124670

RETAINER-SPRNG RB
(Superseded to 532085902)

$

$

Not available

6

Electrolux/AYP 532178024

BAR SWAY DECK

$8.99

$

In Stock, only 4 left!

0

8

Electrolux/AYP 532193003

BOLT.WASHER.ASM.7/16-2

$8.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532134149

BLADE.42".MULCH

$

$

Not available

13

Electrolux/AYP 532192872

SHAFT.ASM.MDRL.N/GREASE.38
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

14

Electrolux/AYP 532187281

HOUSING MANDREL
(Superseded to 587819701)

$56.99

$

In Stock, Qty 20+

0

15

Electrolux/AYP 532110485

BEARING

$13.99

$

In Stock, Qty 11

0

18

Electrolux/AYP 872140505

BOLT
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 532132827

BOLT SHD 5/16-18

$

$

Not available

20

Electrolux/AYP 532159770

BAFFLE.VORTEX

$

$

Not available

21

Electrolux/AYP 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

23

Electrolux/AYP 532192557

BRKT.DEFLECTOR.38"2005+

$9.49

$

In Stock, Qty 5

0

24

Electrolux/AYP 532105304

CAP-SLEEVE LT

$4.99

$

In Stock, Qty 20+

0

25

Electrolux/AYP 532123713

SPRING TORSION

$7.99

$

In Stock, only 1 left!

0

26

Electrolux/AYP 532110452

NUT PUSH M

$3.99

$

Usually ships in 3-10 days

0

27

Electrolux/AYP 532171859

SHIELD DEFLECTOR
(Superseded to 532130968)

$39.99

$

In Stock, Qty 9

0

28

Electrolux/AYP 819111016

WASHER
(Superseded to 734116301)

$3.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532131491

ROD.HINGE
(Superseded to 595297001)

$5.99

$

In Stock, Qty 20+

0

30

Electrolux/AYP 532173984

SCREW, WASHER HEAD
(Superseded to 584953901)

$4.99

$

In Stock, Qty 20+

0

31

Electrolux/AYP 532187690

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8

0

32

Electrolux/AYP 532153535

PULLEY/MANDREL
(Superseded to 532173436)

$17.99

$

In Stock, Qty 20+

0

33

Electrolux/AYP 532400234

NUT.FLANGE.LOCK.TOP
(Superseded to 596134801)

$4.99

$

In Stock, Qty 15

0

34

Electrolux/AYP 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 532131494

FLAT IDLER PULLEY
(Superseded to 597025001)

$26.99

$

In Stock, Qty 6

0

40

Electrolux/AYP 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

44

Electrolux/AYP 532140088

GUARD MANDREL LH BLACK

$34.99

$

In Stock, Qty 10

0

45

Electrolux/AYP 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

46

Electrolux/AYP 532137729

SCREW.1/4-20X5/8

$4.99

$

In Stock, Qty 19

0

48

Electrolux/AYP 532133944

WASHER

$6.49

$

Usually ships in 3-10 days

0

52

Electrolux/AYP 532139888

BOLT

$6.49

$

In Stock, only 1 left!

0

53

Electrolux/AYP 532184907

ARM BRAKE ASSY

$14.99

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 532178515

WASHER

$6.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 532155046

ARM IDLER 42" MOWER LT/YT

$15.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 532165723

SPACER.RETAINER.MOWER

$6.99

$

In Stock, only 1 left!

0

59

Electrolux/AYP 532141043

GUARD, BELT

$

$

Not available

67

Electrolux/AYP 532106932

KNOB T (3/8 HOLE)

$7.99

$

In Stock, Qty 5

0

68

Electrolux/AYP 532180215

No Description Available

$

$

Not available

101

Electrolux/AYP 532193107

NO LONGER AVAILABLE

$

$

Not available

102

Electrolux/AYP 871081010

SCREW

$6.49

$

Usually ships in 3-10 days

0

103

Electrolux/AYP 819061216

WASHER

$4.99

$

Usually ships in 3-10 days

0

104

Electrolux/AYP 810071000

LOCKWASHER

$4.99

$

In Stock, Qty 11

0

105

Electrolux/AYP 532160793

LATCH ASSY

$

$

Not available

106

Electrolux/AYP 532125004

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

142

Electrolux/AYP 532195784

ANCHOR SPRING BRAKE MOWER

$7.49

$

Usually ships in 3-10 days

0

143

Electrolux/AYP 532157109

BRACKET, ARM IDLER

$6.49

$

Usually ships in 3-10 days

0

144

Electrolux/AYP 532158634

KEEPER.BELT.42".CLUTCH.CABLE
(Superseded to 532173441)

$9.99

$

In Stock, only 1 left!

0

145

Electrolux/AYP 532165888

PULLEY
(Superseded to 532173437)

$28.99

$

In Stock, only 3 left!

0

146

Electrolux/AYP 532171977

BOLT, CARRIAGE IDLER BLACK
(Superseded to 532173443)

$7.49

$

In Stock, Qty 6

0

147

Electrolux/AYP 532179748

SPRING

$5.99

$

In Stock, Qty 7

0

148

Electrolux/AYP 532169022

IDLER RETURN SPRING

$5.99

$

In Stock, Qty 7

0

149

Electrolux/AYP 532165898

SPRING.RETAINER.YELLOW.ZINC

$7.49

$

Usually ships in 3-10 days

0

150

Electrolux/AYP 819091210

WASHER LT
(Superseded to 734115441)

$4.99

$

In Stock, only 2 left!

0

152

Electrolux/AYP 532181555

42" CLUTCH CABLE

$72.99

$

Usually ships in 3-10 days

0

158

Electrolux/AYP 817720408

SCREW
(Superseded to 874780408)

$3.99

$

Usually ships in 3-10 days

0

159

Electrolux/AYP 872140614

BOLT
(Superseded to 596987501)

$4.99

$

In Stock, only 3 left!

0

184

Electrolux/AYP 819131410

WASHER
(Superseded to 819121414)

$1.99

$

Usually ships in 3-10 days

0

185

Electrolux/AYP 532188234

HEAD ASM. CABLE CLUTCH

$53.99

$

In Stock, only 1 left!

0

208

Electrolux/AYP 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

--

Electrolux/AYP 532192870

MANDREL.ASM.SUB-NON.GR
(Superseded to 587819701)

Note: NOT SHOWN

$56.99

$

In Stock, Qty 20+

0

--

532416611

Note: NOT SHOWN

$

$

Not available
