LZ 165107 H (960110304-00) - Lazer Lawn Tractor (2011-12) DRIVE Parts Diagram

Lawn Tractor

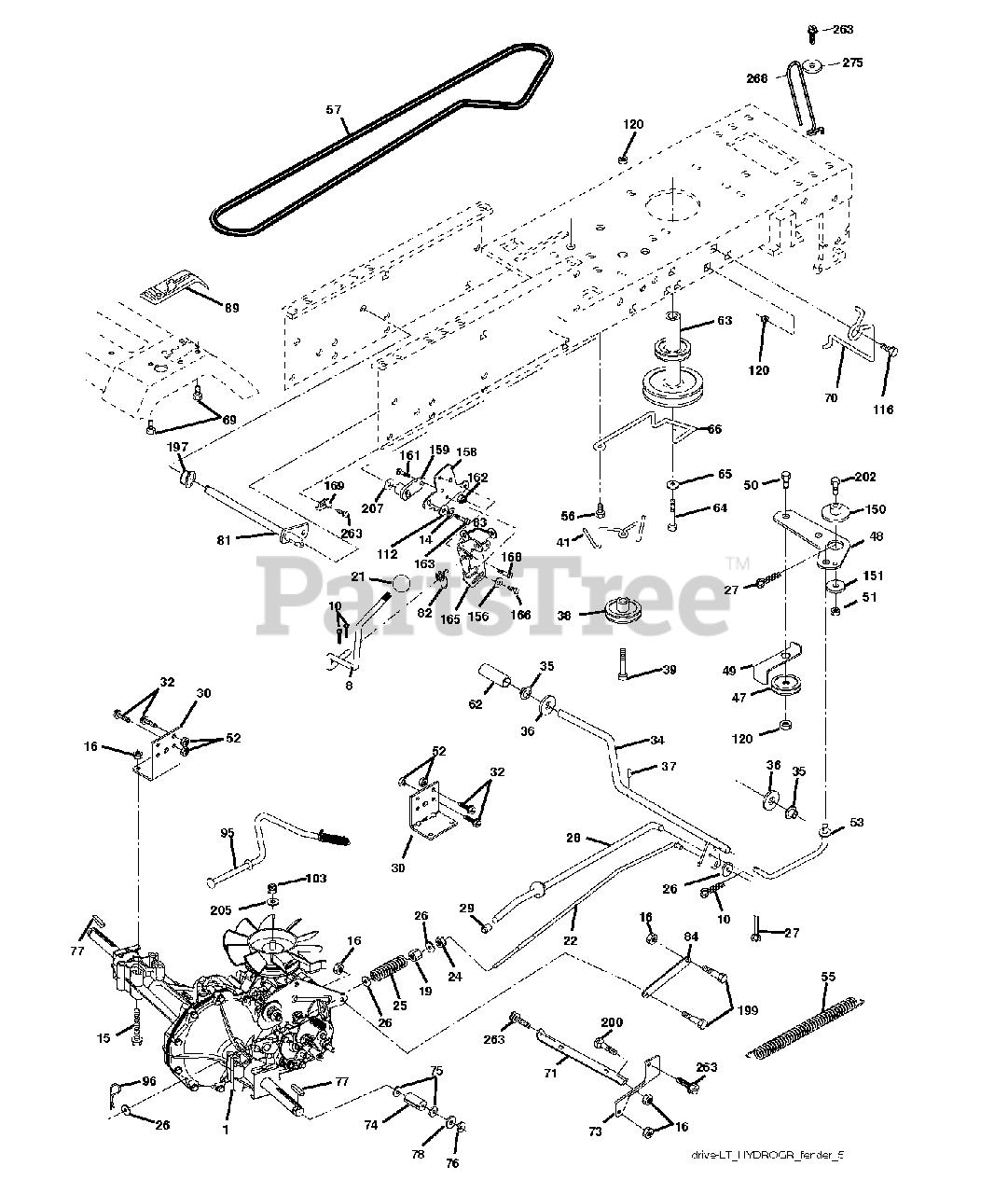

DRIVE Parts Diagram

  • Title

1

Electrolux/AYP 000000000

NO LONGER AVAILABLE

Note: TRANSAXLE HYDRO GEAR 322-0510 (171613)

$

$

Not available

8

Electrolux/AYP 532192706

ROD SHIFT FENDER ADJUST LT
(Superseded to 585139901)

$20.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 876020416

PIN COTTER

$3.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 810040400

LOCKWASHER
(Superseded to 596029801)

$3.99

$

In Stock, only 2 left!

0

15

Electrolux/AYP 874490544

BOLT HEX 5/16-18 GR 5

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 873800500

NUT.71038.31-18.HEX.NYLOCK
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

19

Electrolux/AYP 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 532106933

KNOB T (1/2-HOLE)

$7.99

$

In Stock, only 1 left!

0

22

Electrolux/AYP 532169498

ROD BRAKE HYDRO

$20.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 873350600

NUT
(Superseded to 873220600)

$6.49

$

In Stock, only 2 left!

0

25

Electrolux/AYP 532106888

SPRING ROD LT
(Superseded to 532151332)

$6.49

$

In Stock, only 1 left!

0

26

Electrolux/AYP 819131316

WASHER

$4.99

$

In Stock, Qty 5

0

27

Electrolux/AYP 876020412

COTTER PIN
(Superseded to 596029501)

$3.99

$

In Stock, only 1 left!

0

28

Electrolux/AYP 532175765

ROD, PARKING BRAKE

$6.49

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 532071673

PLUNGER CAP

$5.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 532174973

BRKT, MOUNT TRNSAXLE
(Superseded to 532130807)

$3.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 874760512

BOLT
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

34

Electrolux/AYP 532175578

SHAFT, FOOT PEDAL

$31.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 532120183

BEARING.NYLON

$6.99

$

In Stock, only 3 left!

0

36

Electrolux/AYP 819211616

WASHER LT

$6.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 532124963

DRIVE PIN
(Superseded to 532002882)

$

$

Not available

38

Electrolux/AYP 532179114

PULLEY IDLER COMPOSITE

$31.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 872110622

BOLT

$4.99

$

In Stock, Qty 10

0

41

Electrolux/AYP 532175556

KEEPER, BELT IDLER

$9.99

$

In Stock, only 1 left!

0

47

Electrolux/AYP 532127783

IDLER PULLEY
(Superseded to 532139245)

$37.99

$

In Stock, only 1 left!

0

48

Electrolux/AYP 532154407

BELLCRANK, CLUTCH

$8.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 532123205

RETAIN BELT

$6.49

$

Usually ships in 3-10 days

0

50

Electrolux/AYP 872110612

BOLT.3/8-16X1.50

$6.49

$

Usually ships in 3-10 days

0

51

Electrolux/AYP 873680600

LOCKNUT
(Superseded to 596322601)

$3.99

$

In Stock, Qty 6

0

52

Electrolux/AYP 873680500

LOCKNUT
(Superseded to 873800500)

$3.99

$

In Stock, Qty 20+

0

53

Electrolux/AYP 532199652

LINK.CLUTCH.7.66.2005

$13.99

$

Usually ships in 3-10 days

0

55

Electrolux/AYP 532105709

SPRING, RETURN LT

$11.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 817060620

SCREW.3/8-16

$7.49

$

In Stock, Qty 11

0

57

Electrolux/AYP 532140294

DRIVE BELT, LTH & YTH TRACTORS

$39.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 532124872

PEDAL COVER T
(Superseded to 532008883)

$6.49

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 532180219

No Description Available

$

$

Not available

64

Electrolux/AYP 532173937

BOLT HEX 7/16-20X4-1/4"
(Superseded to 501606501)

$4.99

$

In Stock, only 1 left!

0

65

Electrolux/AYP 810040700

LOCKWASHER
(Superseded to 539990247)

$3.99

$

In Stock, Qty 20+

0

66

Electrolux/AYP 532154778

KEEPER BELT ENGINE

$12.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 532142432

SCREW.HI-LO.CONSOLE

$6.49

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 532180218

No Description Available

$

$

Not available

71

Electrolux/AYP 532169183

STRAP TORQUE LH HYDRO

$7.49

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 532169182

STRAP TORQUE RH HYDRO

$17.99

$

In Stock, only 1 left!

0

74

Electrolux/AYP 532137057

SPACER AXLE

$7.49

$

In Stock, only 3 left!

0

75

Electrolux/AYP 532121749

WASHER

$3.49

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 812000001

E-RING LT

$4.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 532123583

SQUARE KEY

$4.99

$

In Stock, only 4 left!

0

78

Electrolux/AYP 532121748

WASHER

$4.99

$

In Stock, Qty 20+

0

81

Electrolux/AYP 532165596

SHAFT ASM CROSS TAPERED

$40.99

$

Usually ships in 3-10 days

0

82

Electrolux/AYP 532165711

SHIFT SPRING

$7.49

$

In Stock, only 1 left!

0

83

Electrolux/AYP 819171216

WASHER
(Superseded to 19171216)

$

$

Not available

84

Electrolux/AYP 532169843

LINK TRANSAXLE
(Superseded to 169843)

$2.49

$

Usually ships in 3-10 days

0

89

Electrolux/AYP 532194972

DASH.STEALTH.YTGT.2CYL

$

$

Not available

95

Electrolux/AYP 532170201

CONTROL ASM. BYPASS HYDRO

$12.99

$

Usually ships in 3-10 days

0

96

Electrolux/AYP 532124788

RETAINER M
(Superseded to 532004497)

$9.99

$

In Stock, Qty 12

0

103

Electrolux/AYP 873940800

NUT.HEX.1/2-20

$7.49

$

In Stock, only 4 left!

0

112

Electrolux/AYP 819091210

WASHER LT
(Superseded to 734115441)

$4.99

$

In Stock, only 1 left!

0

116

Electrolux/AYP 872140608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

120

Electrolux/AYP 873900600

NUT LOCK FLG 3/8-16 UNC
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

150

Electrolux/AYP 532175456

SPACER, RETAINER

$

$

Not available

151

Electrolux/AYP 819133210

WASHER 12/32X2X10GA
(Superseded to 596135501)

$5.99

$

In Stock, Qty 12

0

156

Electrolux/AYP 532166002

WASHER.SRRTD.5/16

$6.49

$

Usually ships in 3-10 days

0

158

Electrolux/AYP 532437458

BRACKET.SHIFT.MOUNT

$7.49

$

Usually ships in 3-10 days

0

159

Electrolux/AYP 532183900

HUB.SHIFT
(Superseded to 532444304)

$8.99

$

Usually ships in 3-10 days

0

161

Electrolux/AYP 872140406

BOLT
(Superseded to 872110407)

$4.99

$

Usually ships in 3-10 days

0

162

Electrolux/AYP 873680400

NUT.CROWNLOCK.1/4
(Superseded to 586668901)

$4.99

$

In Stock, Qty 15

0

163

Electrolux/AYP 874780416

BOLT

$6.49

$

Usually ships in 3-10 days

0

165

Electrolux/AYP 532438250

BRACKET.PIVOT.LEVER

$7.49

$

Usually ships in 3-10 days

0

166

Electrolux/AYP 817490510

SCREW

$4.99

$

Usually ships in 3-10 days

0

168

Electrolux/AYP 532165492

BOLT.SHOULDER.5/16-18X

$10.99

$

In Stock, only 3 left!

0

169

Electrolux/AYP 532165581

PLATE FASTENING LT

$4.99

$

Usually ships in 3-10 days

0

197

Electrolux/AYP 532169613

NYLINER SNAP 5/8" ID

$7.49

$

In Stock, Qty 6

0

199

Electrolux/AYP 532169612

BOLT SHOULDER 5/16-18 UNC
(Superseded to 596231101)

$4.99

$

In Stock, only 2 left!

0

200

Electrolux/AYP 872140508

BOLT
(Superseded to 595901501)

$4.99

$

In Stock, only 4 left!

0

202

Electrolux/AYP 872110614

BOLT
(Superseded to 596136201)

$4.99

$

In Stock, only 1 left!

0

205

Electrolux/AYP 819171616

WASHER
(Superseded to 596040101)

$3.99

$

In Stock, Qty 20+

0

207

Electrolux/AYP 532169845

WASHER NYL

$4.99

$

Usually ships in 3-10 days

0

263

Electrolux/AYP 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

268

Electrolux/AYP 532182402

NO LONGER AVAILABLE
(Superseded to 583122001)

$7.49

$

Usually ships in 3-10 days

0

275

Electrolux/AYP 819131614

WASHER
(Superseded to 819131612)

$6.49

$

Usually ships in 3-10 days

0
