LZ 165107 H (960110304-00) - Lazer Lawn Tractor (2011-12) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

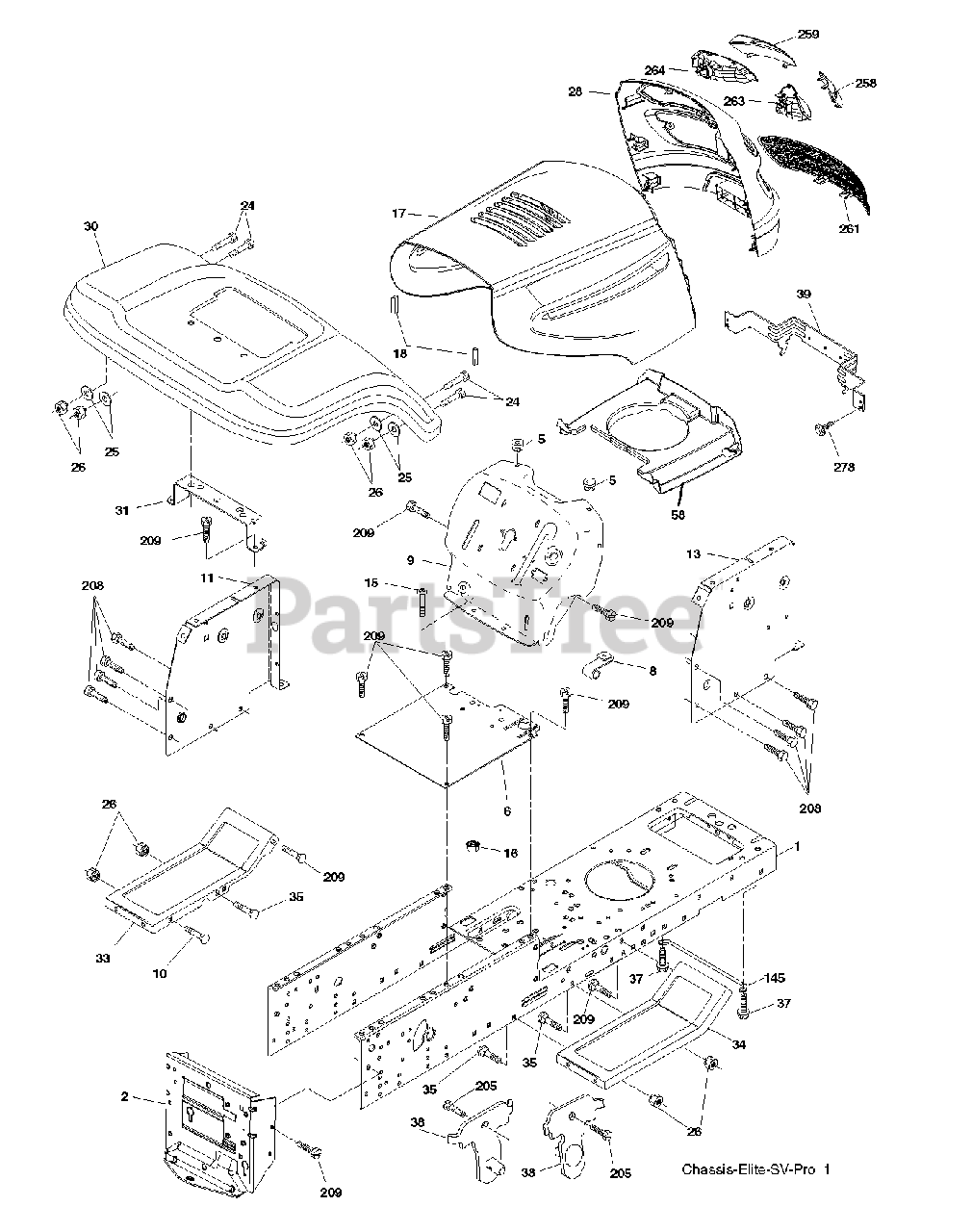

CHASSIS ENCLOSURES Parts Diagram

  • Title

1

Electrolux/AYP 532174620

CHASSIS
(Superseded to 174620)

$136.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532176554

DRAWBAR, 12GA

$43.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 532155272

BUMPER.RUBBER.HOOD

$7.49

$

In Stock, only 3 left!

0

6

Electrolux/AYP 532184419

NO LONGER AVAILABLE
(Superseded to 583133601)

$12.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 532155138

CLIP RETAINER

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532194688

FENDER LT SH
(Superseded to 532194672)

$28.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 872140608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532174996

PANEL.DASH.LH.LTX
(Superseded to 174996)

$

$

Not available

13

Electrolux/AYP 532186952

PANEL.WELDMENT.DASH.R
(Superseded to 532186946)

$28.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 874180512

SCREW

$

$

Not available

16

Electrolux/AYP 873510500

NUT
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 532442882

HOOD.STEEL.ELITE.-SV.PRO.667

$61.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 532184921

BUMPER.HOOD.LARGE.1.75"

$7.49

$

In Stock, Qty 9

0

24

Electrolux/AYP 874780616

BOLT

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 1 left!

0

26

Electrolux/AYP 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 532189748

NO LONGER AVAILABLE
(Superseded to 583170701)

$

$

Not available

30

Electrolux/AYP 532441520

FENDER.PNT.LT.W/SFT.W/OCUP.667

$94.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 532136619

BRACKET FENDER
(Superseded to 136619)

$

$

Not available

33

Electrolux/AYP 532441519

FOOTREST.PNT.LH.MS667

$18.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 532441518

FOOTREST.PNT.RH.MS667

$18.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 872110606

BOLT

$4.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 817490508

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 532175710

BRACKET.ASM.PIVOT.MOWER.REAR

$11.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 532407807

BRACKET PIVOT

$31.99

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 532184322

NO LONGER AVAILABLE
(Superseded to 583133101)

$34.99

$

Usually ships in 3-10 days

0

145

Electrolux/AYP 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

205

Electrolux/AYP 817490608

SCREW LT

$6.49

$

Usually ships in 3-10 days

0

208

Electrolux/AYP 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

209

Electrolux/AYP 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 2 left!

0

258

Electrolux/AYP 532189755

Grille Lens, Pro RH Clear
(Superseded to 183835599)

$14.99

$

Usually ships in 3-10 days

0

259

Electrolux/AYP 532189754

NO LONGER AVAILABLE
(Superseded to 183834599)

$

$

Not available

278

Electrolux/AYP 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

261

Electrolux/AYP 532189753

NO LONGER AVAILABLE

$

$

Not available

263

Electrolux/AYP 532183833

BEZEL GRILL RH

$

$

Not available

264

Electrolux/AYP 532183832

BEZEL GRILL LH

$

$

Not available

--

Electrolux/AYP 532005479

PLUG BUTTON T

Note: NOT SHOWN

$5.99

$

Usually ships in 3-10 days

0
