LZ 11597 (960110259-04) - Lazer Lawn Tractor (2010-09) CHASSIS ENCLOSURES Parts Diagram

Lawn Tractor

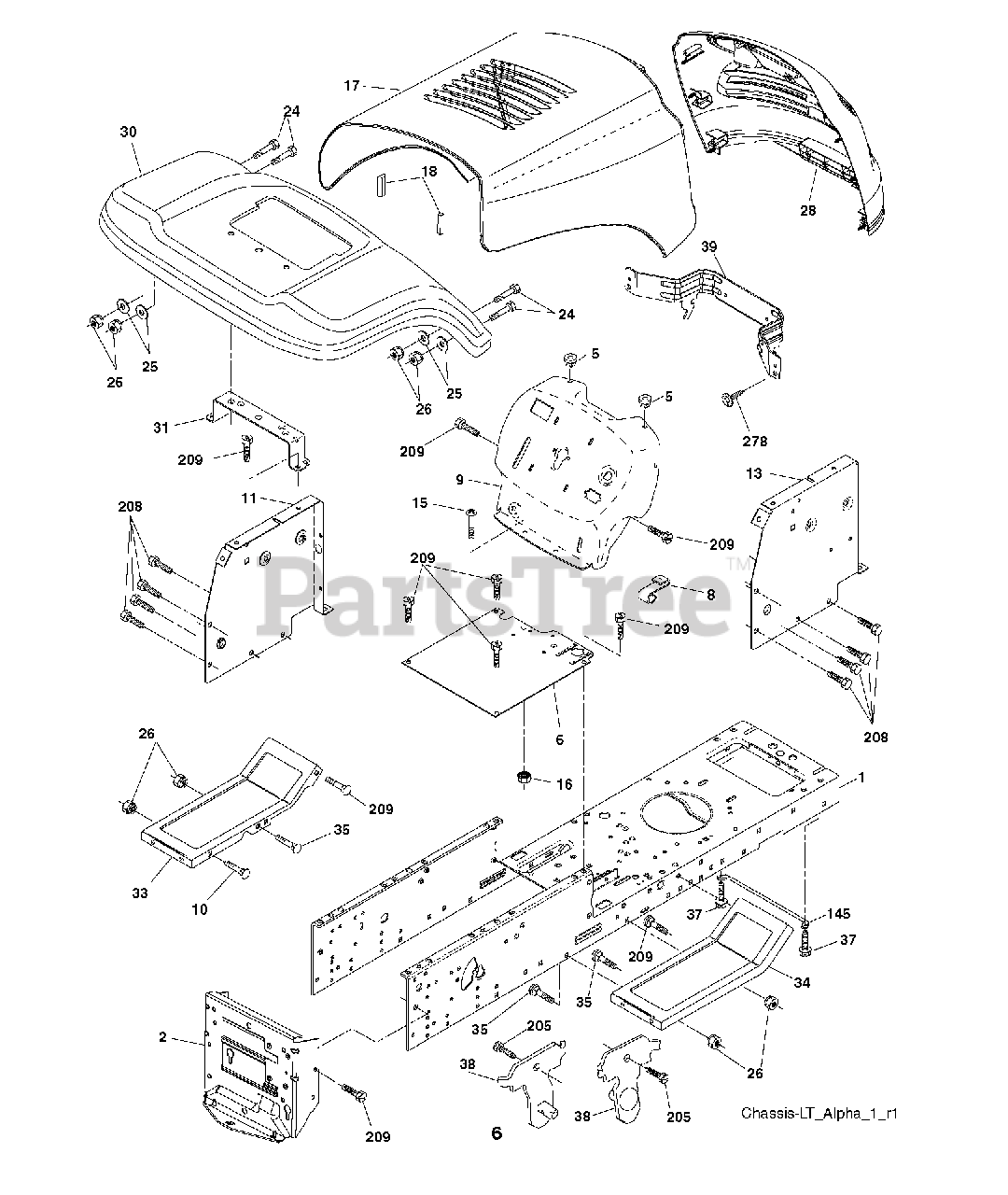

CHASSIS ENCLOSURES Parts Diagram

  • Title
1

Electrolux/AYP 532174620

CHASSIS
(Superseded to 174620)

$136.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 532176554

DRAWBAR, 12GA

$43.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 532155272

BUMPER.RUBBER.HOOD

$7.49

$

In Stock, only 3 left!

0

6

Electrolux/AYP 532184419

NO LONGER AVAILABLE
(Superseded to 583133601)

$12.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 532155138

CLIP RETAINER

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 532194688

FENDER LT SH
(Superseded to 532194672)

$28.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 872140608

BOLT D
(Superseded to 872110608)

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 532174996

PANEL.DASH.LH.LTX
(Superseded to 174996)

$

$

Not available

13

Electrolux/AYP 532181719

PANEL DASH RH
(Superseded to 532172105)

$21.99

$

In Stock, only 1 left!

0

$

$

Not available

16

Electrolux/AYP 873510500

NUT
(Superseded to 596040501)

$3.99

$

In Stock, Qty 20+

0

17

Electrolux/AYP 532194797

GRILLE.ALPHA.LT.NO LIGHTS
(Superseded to 532194798)

$

$

Not available

18

Electrolux/AYP 532184921

BUMPER.HOOD.LARGE.1.75"

$7.49

$

In Stock, Qty 9

0

$6.49

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 819131312

WASHER
(Superseded to 596133201)

$6.99

$

In Stock, only 2 left!

0

26

Electrolux/AYP 873800600

NUT
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 532194798

GRILLE.ALPHA.LT.NO LI

$

$

Not available

30

Electrolux/AYP 532195855

CONSOLE.SVC.SHIFT.LTST.5SP
(Superseded to 584377801)

$145.99

$

Usually ships in 3-10 days

0

31

Electrolux/AYP 532136619

BRACKET FENDER
(Superseded to 136619)

$

$

Not available

33

Electrolux/AYP 532181193

FOOTREST.PNT.RH
(Superseded to 532182508)

$

$

Not available

34

Electrolux/AYP 532181194

NO LONGER AVAILABLE

$

$

Not available

$4.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 532175710

BRACKET.ASM.PIVOT.MOWER.REAR

$11.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 532187568

BRACKET.PIVOT.ALPHA.LT

$28.99

$

Usually ships in 3-10 days

0

145

Electrolux/AYP 532409167

ROD.PIVOT.HOOD

$13.99

$

In Stock, only 2 left!

0

$6.49

$

Usually ships in 3-10 days

0

208

Electrolux/AYP 817670608

SCREW 3/8-16X1/2

$6.49

$

Usually ships in 3-10 days

0

209

Electrolux/AYP 817000612

SCREW, 3/8-16X3/4

$4.99

$

In Stock, only 4 left!

0

278

Electrolux/AYP 532416358

SCREW.#10 X 0.750.BOS THREAD
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

--

Electrolux/AYP 532005479

PLUG BUTTON T

Note: NOT SHOWN

$5.99

$

Usually ships in 3-10 days

0

--

Electrolux/AYP 532193935

PLUG.SWITCH.LIGHT.428
(Superseded to 532193934)

Note: NOT SHOWN

$6.99

$

Usually ships in 3-10 days

0
