LXSLKA725 - Exmark 72" Lazer Z XS Zero-Turn Mower, Kawasaki (SN: 600000 - 669999) (2006) Electrical Group Parts Diagram

72" Lazer Z XS Zero-Turn Mower, Kawasaki

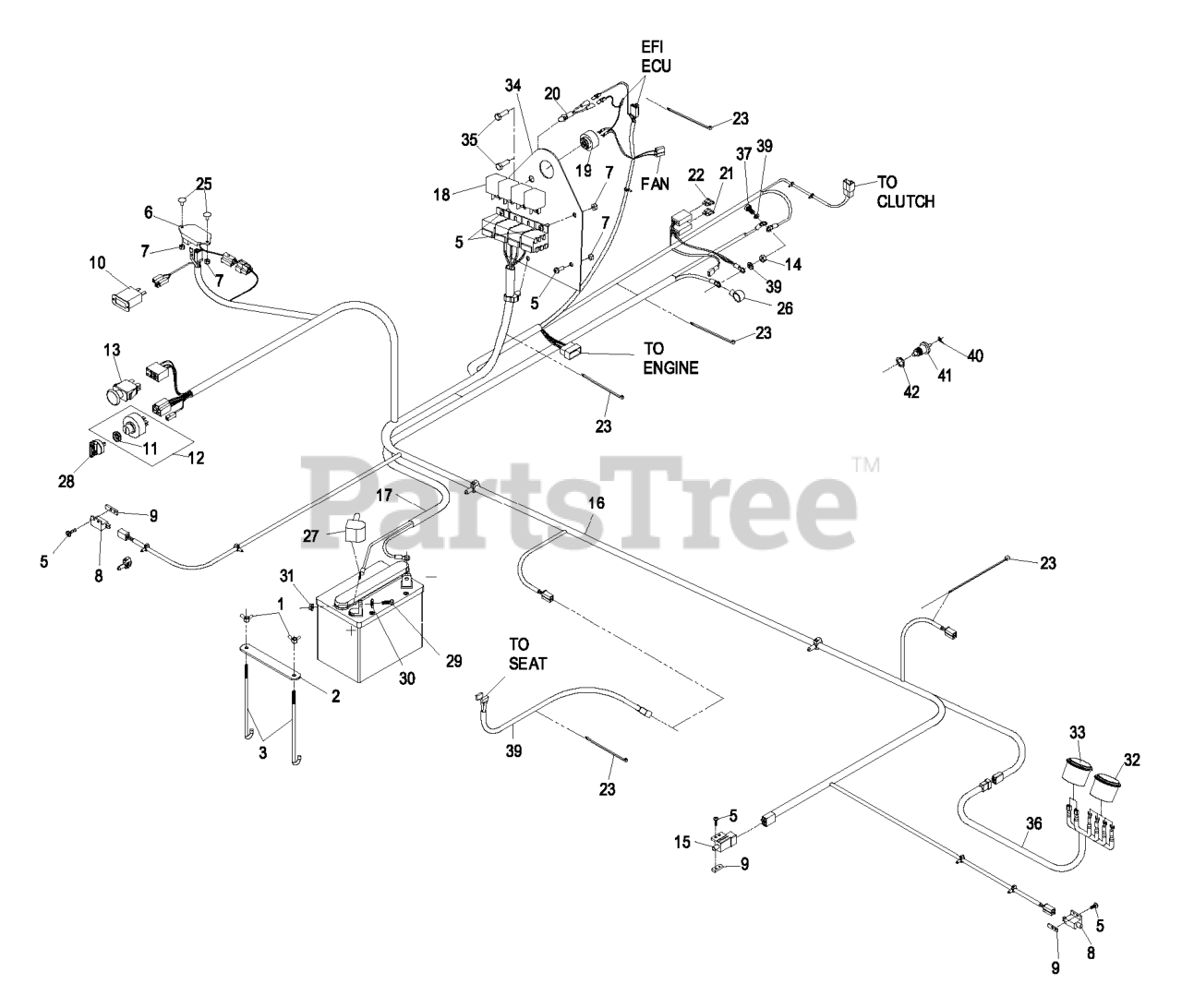

Electrical Group Parts Diagram

  • Title

1

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 14

0

2

Exmark 107-9277-03

STRAP-HOLDDOWN, BATTERY

$6.49

$

In Stock, Qty 7

0

3

Exmark 1-633651

BOLT-HOLDDOWN

$7.99

$

In Stock, Qty 20+

0

4

Exmark 106-8736

Battery, Wet

$

$

Not available

5

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

6

Exmark 103-5218

MODULE-DELAY, SEAT

$45.99

$

In Stock, only 4 left!

0

7

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

8

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

9

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, Qty 12

0

10

Exmark 1-513374

METER-HOUR
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

11

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.49

$

In Stock, Qty 20+

0

12

Exmark 109-4736

ASM,SWITCH W/NUT

$42.99

$

In Stock, Qty 20+

0

13

Exmark 103-5221

SWITCH-PTO

$58.99

$

In Stock, Qty 20+

0

14

Exmark 33114-03

Nut, Hex M8-1.25

$

$

Currently unavailable

15

Exmark 1-633111

SWITCH

$21.99

$

In Stock, Qty 20+

0

16

Exmark 103-9585

HARNESS, WIRE LZ 29 LKA

Note: Use dielectric grease on all wiring harness connectors.

$665.99

$

Usually ships in 3-6 days

0

17

Exmark 109-2399

ASM, BATTERY CABLE

$128.99

$

Usually ships in 3-6 days

0

18

Exmark 1-643275

RELAY

$23.99

$

In Stock, Qty 20+

0

19

Exmark 103-0205

ALARM-TONE, DUAL

$67.99

$

In Stock, only 2 left!

0

20

Exmark 1-643267

INDICATOR-LED, RED

$25.99

$

In Stock, only 1 left!

0

21

Exmark 1-816003

FUSE-BLADE TYPE, 30 AMP

$5.99

$

Usually ships in 3-6 days

0

22

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.49

$

In Stock, Qty 13

0

23

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

25

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 20+

0

26

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

27

Exmark 1-543391

109-2407
(Superseded to 109-2407)

$5.49

$

In Stock, only 3 left!

0

28

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 20+

0

Exmark 1-603511

KEYS-IGNITION (SPARE PAIR

$2.49

$

In Stock, Qty 20+

0

29

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

30

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

31

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 20+

0

32

Exmark 103-2426

GAUGE,TEMP W/ ALERT

$

$

Not available

33

Exmark 1-643037

GAUGE-VOLTMETER

$210.99

$

In Stock, only 1 left!

0

34

Exmark 109-2813

ASM,ELECT.PNL W/ DECALS

Note: (109-0025-03) W/Decals

$

$

Not available

35

Exmark 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

36

Exmark 109-1356

HARNESS,GAGE

Note: Use dielectric grease on all wiring harness connectors.

$60.99

$

Usually ships in 3-6 days

0

37

Exmark 33114-016

SCREW-HH

$0.99

$

In Stock, only 4 left!

0

38

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

39

Exmark 103-1227

HARNESS-WIRING, SEAT

$23.99

$

Usually ships in 3-6 days

0

40

Exmark 1-643145

TAB

$2.99

$

In Stock, Qty 5

0

41

Exmark 103-0283

SENDER-TEMPERATURE

$89.99

$

In Stock, only 1 left!

0

42

Exmark 1-643153

WASHER-ALUMINUM

$5.49

$

Usually ships in 3-6 days

0
