LXSLKA605 - Exmark 60" Lazer Z XS Zero-Turn Mower, Kawasaki (SN: 600000 - 669999) (2006) Engine Deck Group Parts Diagram

60" Lazer Z XS Zero-Turn Mower, Kawasaki

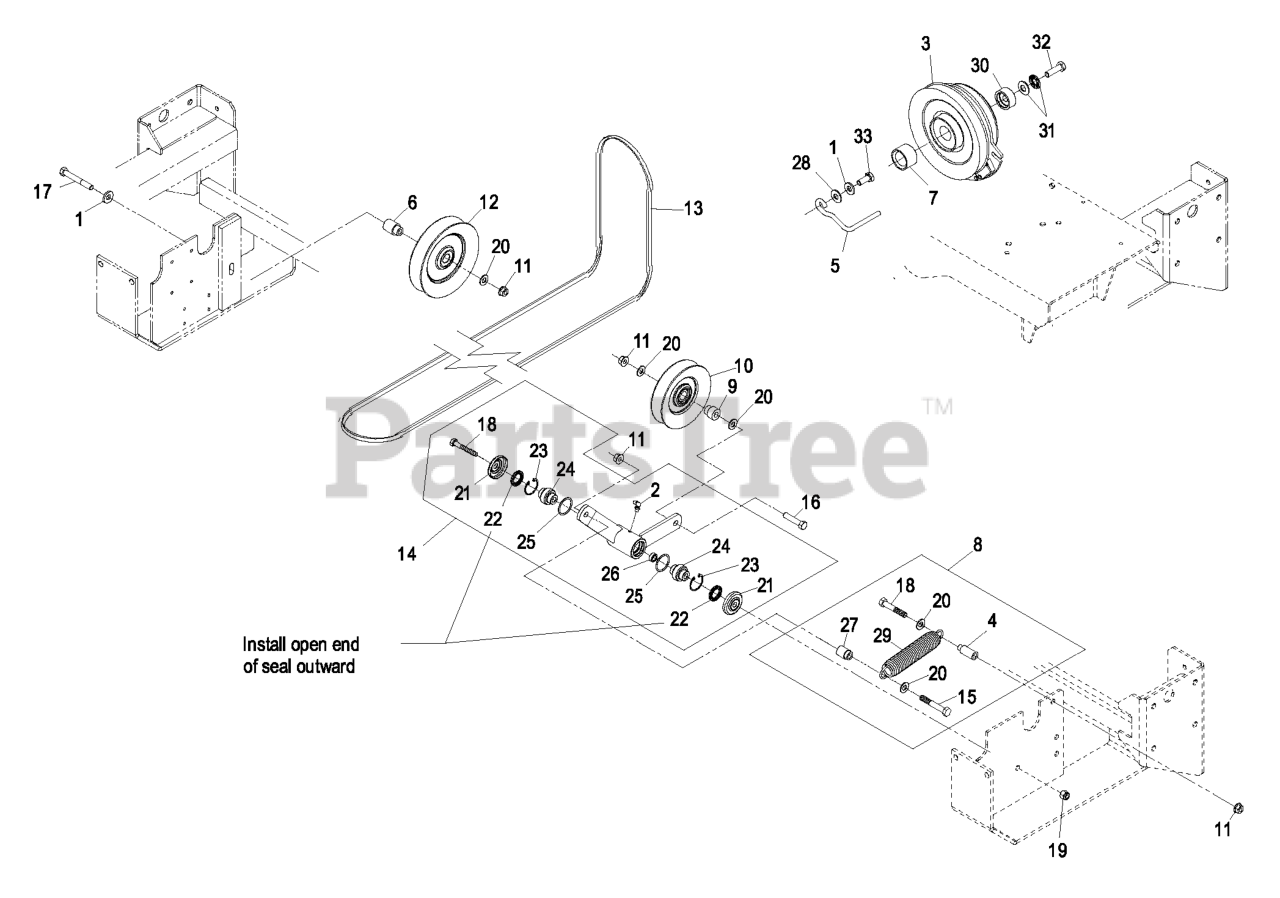

Engine Deck Group Parts Diagram

  • Title

1

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

2

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

3

Exmark 103-3244

109-7666
(Superseded to 109-7666)

$703.99

$

In Stock, only 1 left!

0

Exmark 103-3012

KIT,MS200 CLUTCH BRAKE

$138.99

$

Usually ships in 3-6 days

0

4

Exmark 109-3141

SPACER,SPRING MOUNT

$

$

Not available

5

Exmark 52-4780

ROD-BELT

$14.99

$

In Stock, only 2 left!

0

6

Exmark 103-2627

BUSHING-IDLER

$3.49

$

In Stock, Qty 20+

0

7

Exmark 103-0114

SPACER-CLUTCH

$33.99

$

Usually ships in 3-6 days

0

8

Exmark 109-3766

KIT,MULE DRIVE SPRING

Note: 109-3766 kit includes component shown and (2) whizlock nuts item #11.

$109.99

$

Usually ships in 3-6 days

0

9

Exmark 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

10

Exmark 1-603805

PULLEY-IDLER

$54.99

$

In Stock, Qty 12

0

11

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Exmark 1-633166

PULLEY-IDLER

$56.99

$

In Stock, only 3 left!

0

13

Exmark 103-6506

BELT-V B 118.75
(Superseded to 103-6506-SL)

$106.99

$

Usually ships in 3-6 days

0

14

Exmark 103-5695

KIT,MULE IDLER LZ

Note: 103-5695 kit includes components shown and nyloc nut item #19.

$125.99

$

In Stock, only 1 left!

0

15

Exmark 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

16

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

18

Exmark 1-800805

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

19

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

20

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

21

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

22

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 19

0

23

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

24

Exmark 103-3504

BEARING-SPHERICAL

$25.99

$

In Stock, Qty 20+

0

25

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

26

Exmark 103-5677

SPACER

$2.99

$

In Stock, only 3 left!

0

27

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

28

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

29

Exmark 103-8599

116-6316
(Superseded to 116-6316)

$23.99

$

In Stock, only 3 left!

0

30

Exmark 103-0152

KEEPER-CLUTCH

$12.99

$

In Stock, only 1 left!

0

31

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

32

Exmark 33115-035

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022,

$2.99

$

Usually ships in 3-6 days

0

33

Exmark 33115-025

SCREW-HH

$1.99

$

Usually ships in 3-6 days

0
