LXSKD725 - Exmark 72" Lazer Z XS Zero-Turn Mower (SN: 600000 - 669999) (2006) Fuel Group Parts Diagram

72" Lazer Z XS Zero-Turn Mower

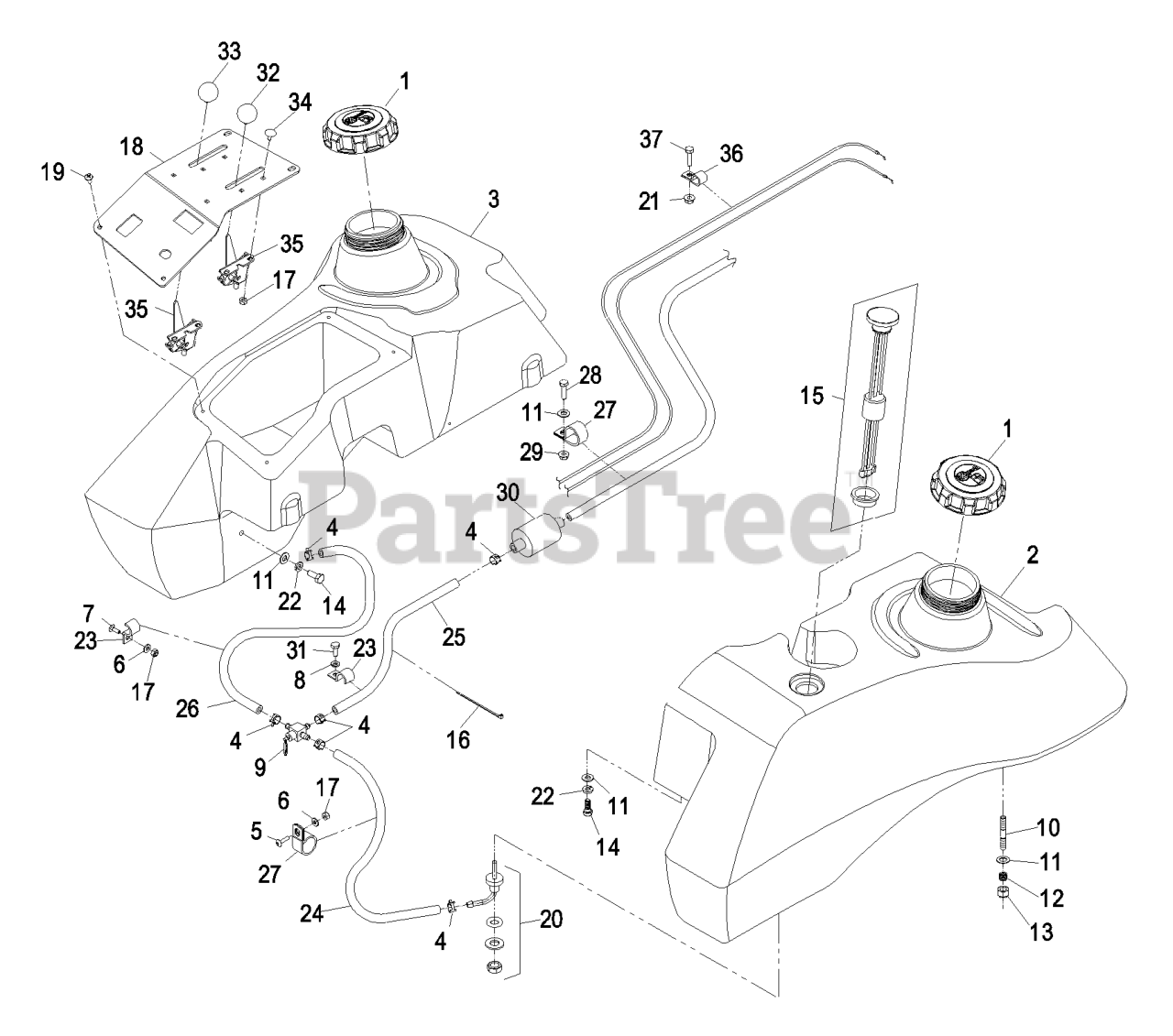

Fuel Group Parts Diagram

  • Title

1

Exmark 109-0346

CAP-FUEL, GAS

$21.99

$

Usually ships in 3-6 days

0

2

Exmark 103-7510

KIT,FUEL TANK LH LZXS

Note: Includes tank, cap, fittings, and studs. LH tank also includes fuel gauge.

$

$

Not available

3

Exmark 103-7511

KIT,FUEL TANK RH LZXS

Note: Includes tank, cap, fittings, and studs. LH tank also includes fuel gauge.

$

$

Not available

4

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 8

0

5

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

6

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

7

Exmark 1-807533

BOLT-CARR

$1.49

$

In Stock, Qty 6

0

8

Exmark 1-805004

WASHER-LOCK

$1.49

$

In Stock, only 4 left!

0

9

Exmark 1-633347

VALVE-FUEL

$74.99

$

In Stock, only 3 left!

0

10

Exmark 1-633023

STUD

Note: Use Pro-Lock, Retaining type (Part No. 1-840023), 5cc tube on stud threads going into the tank.

$6.49

$

Usually ships in 3-6 days

0

11

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

12

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, only 2 left!

0

13

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 11

0

14

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 16

0

15

Exmark 103-6564

KIT, CT FUEL GAGE REPL.

$65.99

$

In Stock, Qty 8

0

16

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

17

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

18

Exmark 103-7512

KIT,CTRL PANEL W/DECALS L

$105.99

$

Usually ships in 3-6 days

0

19

Exmark 109-2661

SCREW-PPH

Note: Snug fit only on slotted holes, Do Not Overtighten, tank must be able to expand.

$1.49

$

In Stock, Qty 11

0

20

Exmark 103-2605

FITTING-FUEL, BULKHEAD

Note: Use Prolock, Nut type (Part No. 1-840022), 5ml tube on fuel fitting.

$36.99

$

In Stock, only 2 left!

0

Exmark 103-2784

O-RING,BULKHEAD FITTING

$13.99

$

In Stock, only 3 left!

0

21

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

22

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

23

Exmark 103-1193

CLIP-HALF, LOOM

$2.99

$

Usually ships in 3-6 days

0

24

Exmark 109-0275

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

25

Exmark 109-0305

1-603954
(Superseded to 1-603954)

$8.99

$

In Stock, only 1 left!

0

26

Exmark 109-0302

HOSE-FUEL

$12.99

$

In Stock, Qty 5

0

27

Exmark 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

0

28

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

30

Briggs & Stratton P/N 695327 Fuel Filter

Note: Refer to Engine Owner's Manual.

$

$

Not available

31

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

32

Exmark 1-513592

KNOB-BALL

$6.99

$

In Stock, Qty 10

0

33

Exmark 1-513593

KNOB-BALL, BLACK

$5.49

$

In Stock, Qty 11

0

34

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

35

Exmark 103-4091

CABLE-THROTTLE

$54.99

$

In Stock, only 3 left!

0

36

Exmark 1-513762

CLIP-LOOM

$7.99

$

In Stock, only 1 left!

0

37

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
