LXS35BV665 - Exmark 66" Lazer Z XS Zero-Turn Mower, 35hp Briggs & Stratton (SN: 850000 - 919999) (2010) Upper Frame Group Parts Diagram

66" Lazer Z XS Zero-Turn Mower, 35hp Briggs & Stratton

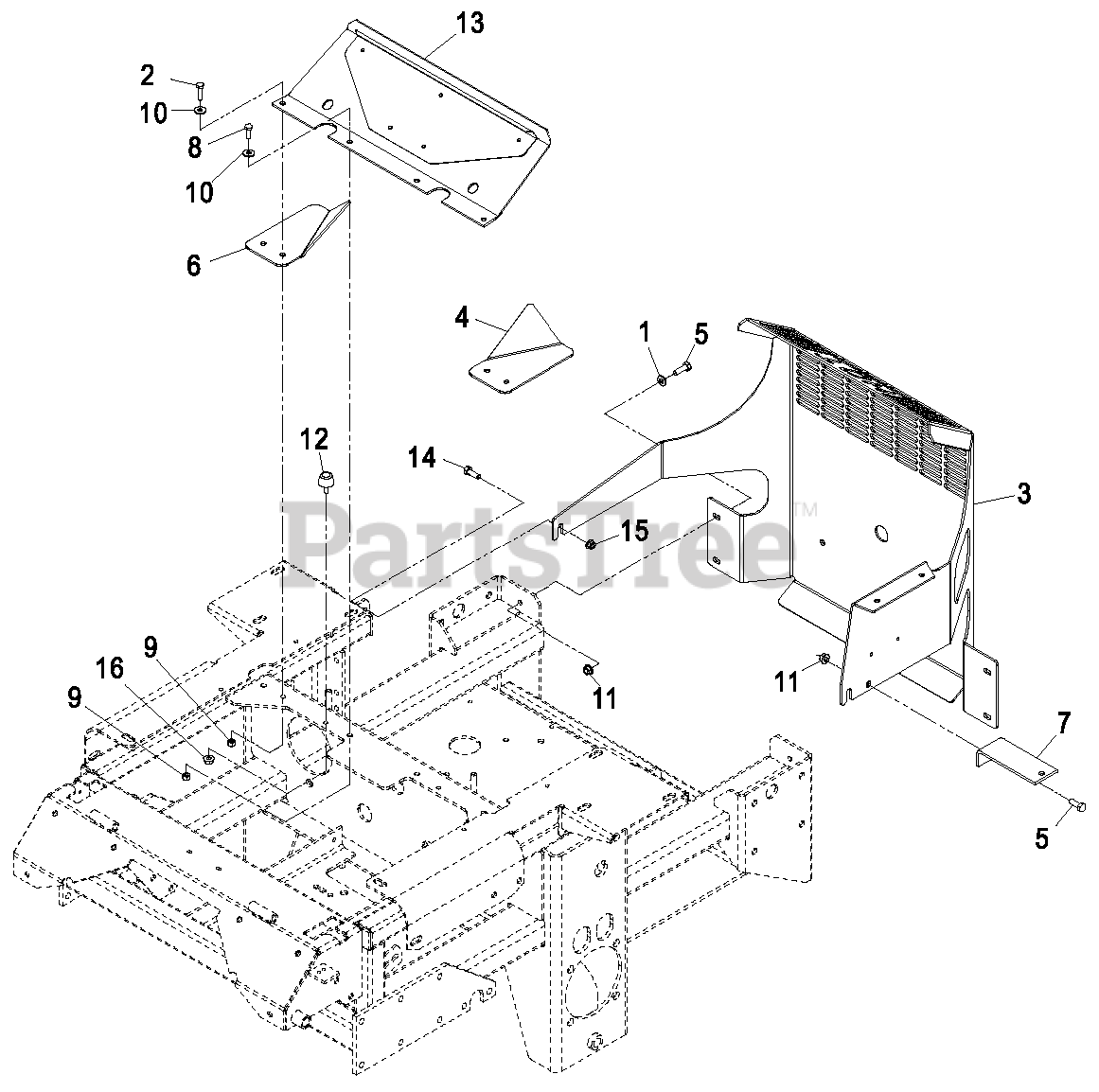

Upper Frame Group Parts Diagram

  • Title

1

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

2

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

3

Exmark 109-7428-03

GUARD,REAR-LXS AC

$

$

Not available

4

Exmark 103-6620-03

SUPPORT-FRONT COVER, LH

$26.99

$

Usually ships in 3-6 days

0

5

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

6

Exmark 103-6619-03

SUPPORT-FRONT COVER, RH

$26.99

$

Usually ships in 3-6 days

0

7

Exmark 109-0089-03

BRACKET, HYDRAULIC TANK

$34.99

$

Usually ships in 3-6 days

0

8

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

9

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

10

Exmark 3256-2

WASHER-FLAT
(Superseded to 3256-2)

$0.99

$

In Stock, Qty 20+

0

11

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

12

Exmark 109-2365

BUMPER-RUBBER

$5.49

$

In Stock, only 3 left!

0

13

Exmark 116-0134

KIT,FRONT ENGINE COVER W/

$

$

Not available

14

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

15

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

16

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0
