LXS35BV665 - Exmark 66" Lazer Z XS Zero-Turn Mower, 35hp Briggs & Stratton (SN: 790000 - 849999) (2009) Engine Deck Group Parts Diagram

66" Lazer Z XS Zero-Turn Mower, 35hp Briggs & Stratton

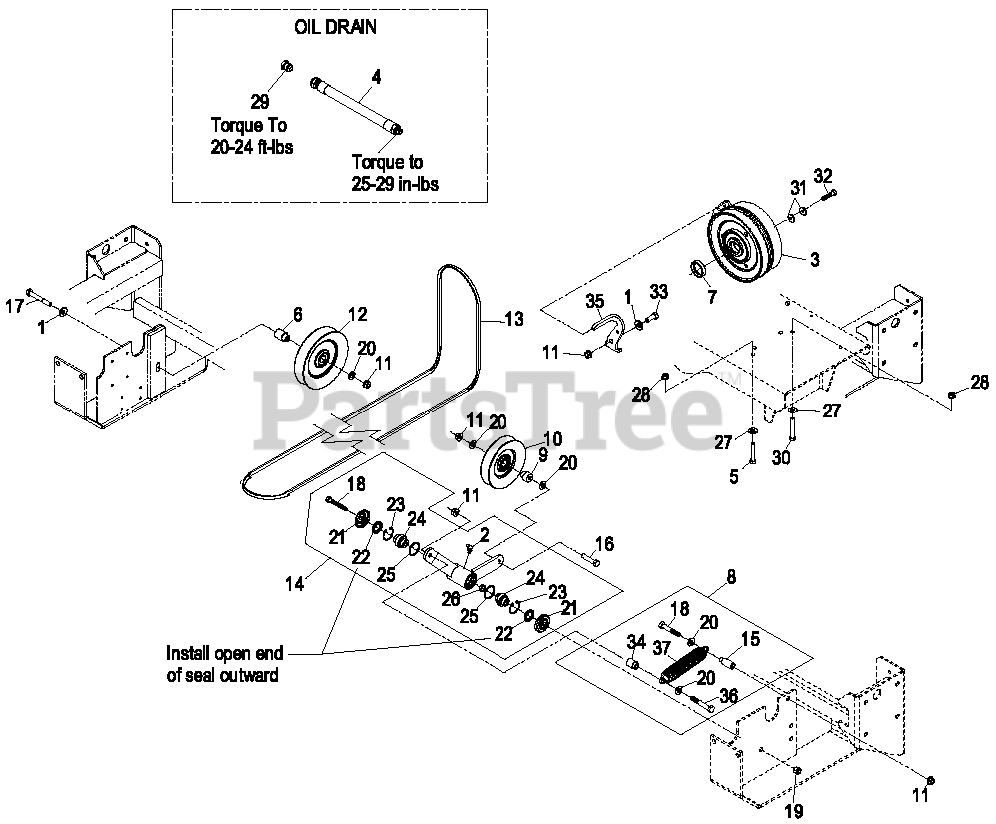

Engine Deck Group Parts Diagram

  • Title

1

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

2

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

3

Exmark 109-7667

116-1626
(Superseded to 116-1626)

$747.99

$

Usually ships in 3-6 days

0

4

Exmark 109-4324

ASM,HOSE OIL DRAIN BVG W/
(Superseded to 116-5329)

$

$

Not available

5

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 5

0

6

Exmark 103-2627

BUSHING-IDLER

$3.49

$

In Stock, Qty 20+

0

7

Exmark 103-9891

SPACER,1.63 X1.14 X .18

$9.99

$

In Stock, only 2 left!

0

8

Exmark 109-3766

KIT,MULE DRIVE SPRING

Note: Kit includes components shown and item #11(2).

$109.99

$

Usually ships in 3-6 days

0

9

Exmark 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

10

Exmark 1-603805

PULLEY-IDLER

$54.99

$

In Stock, Qty 12

0

11

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

12

Exmark 1-633166

PULLEY-IDLER

$56.99

$

In Stock, only 3 left!

0

13

Exmark 103-6506

BELT-V B 118.75
(Superseded to 103-6506-SL)

$106.99

$

Usually ships in 3-6 days

0

14

Exmark 103-5695

KIT,MULE IDLER LZ

Note: 103-5695 kit includes components shown and nyloc nut item #19.

$125.99

$

In Stock, only 1 left!

0

15

Exmark 109-3141

SPACER,SPRING MOUNT

$

$

Not available

16

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

17

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, only 4 left!

0

18

Exmark 1-800805

SCREW-HH

$5.49

$

In Stock, only 2 left!

0

19

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

20

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

21

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

22

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 19

0

23

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

24

Exmark 103-3504

BEARING-SPHERICAL

$25.99

$

In Stock, Qty 20+

0

25

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

26

Exmark 103-5677

SPACER

$2.99

$

In Stock, only 3 left!

0

27

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 4 left!

0

28

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

29

Exmark 109-1012

PLUG

$8.49

$

Usually ships in 3-6 days

0

30

Exmark 322-11

SCREW-HH
(Superseded to 120-9738)

$1.49

$

In Stock, Qty 20+

0

31

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 5

0

32

Exmark 3212-8

SCREW-HH

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on clutch bolt.

$6.49

$

In Stock, only 4 left!

0

33

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

34

Exmark 1-633456

BUSHING-IDLER

$5.49

$

In Stock, Qty 20+

0

35

Exmark 116-0197-03

ANCHOR,CLUTCH

$44.99

$

Usually ships in 3-6 days

0

36

Exmark 323-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

37

Exmark 116-0608

116-6316
(Superseded to 116-6316)

$23.99

$

In Stock, only 3 left!

0
