LXS29LKA725 - Exmark 72" Lazer Z XS Liquid Cooled Zero-Turn Mower, 29hp Kawasaki (SN: 720000 - 789999) (2008) Main Frame Group Parts Diagram

72" Lazer Z XS Liquid Cooled Zero-Turn Mower, 29hp Kawasaki

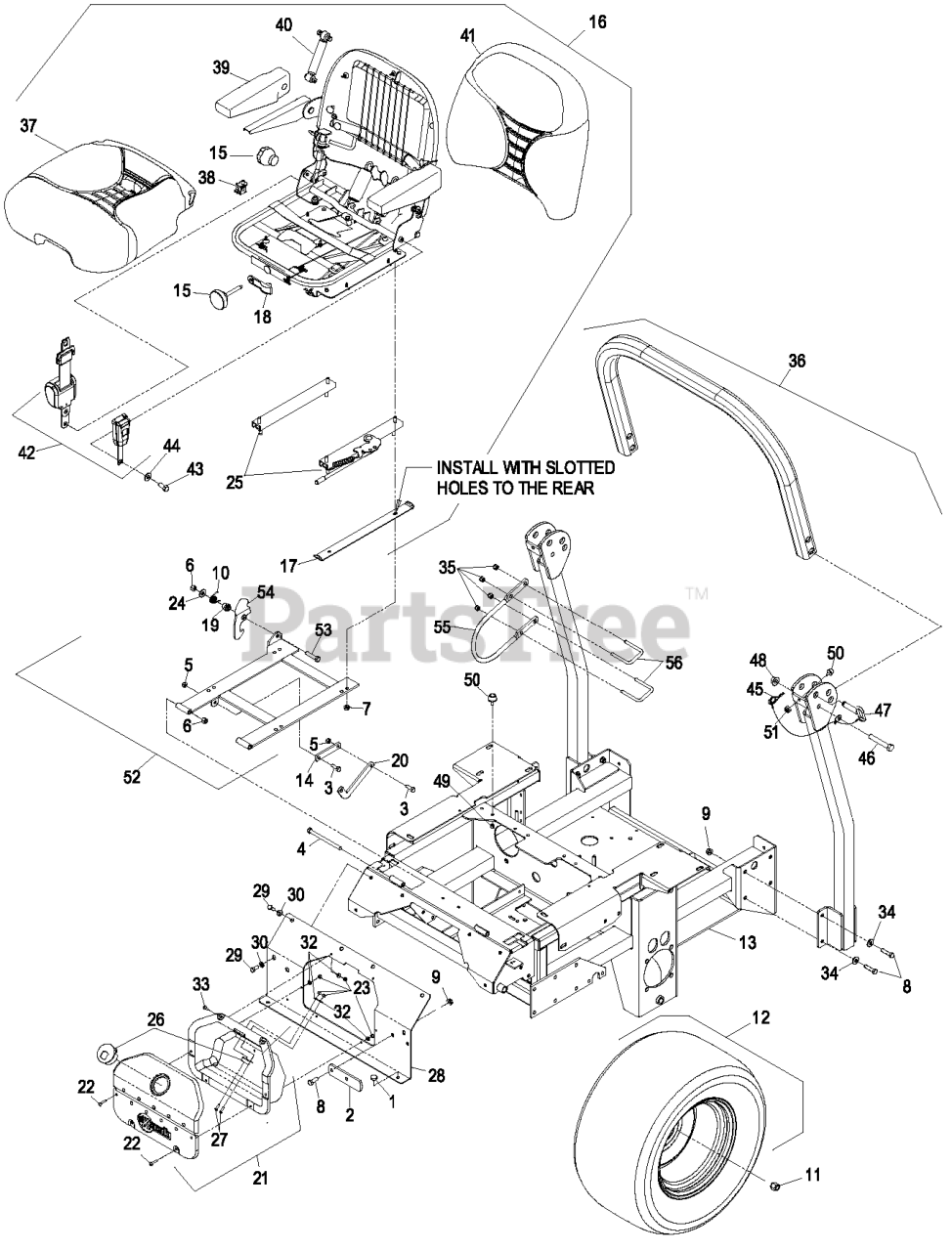

Main Frame Group Parts Diagram

  • Title

1

Exmark 1-513658

BUMPER

$6.49

$

In Stock, only 4 left!

0

2

Exmark 1-633964-03

STOP-BRAKE, PARK

$12.99

$

Usually ships in 3-6 days

0

3

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

4

Exmark 323-39

SCREW-HH

$11.99

$

In Stock, Qty 20+

0

5

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

6

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

7

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

8

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

9

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

10

Exmark 103-5519

SPRING-TORSION, LATCH

$8.49

$

Usually ships in 3-6 days

0

11

Exmark 242-50

NUT-LUG
(Superseded to 139-2564)

$1.49

$

Usually ships in 3-6 days

0

12

Exmark 109-3157

WHEEL AND TIRE ASM

$583.99

$

Usually ships in 3-6 days

0

Exmark 103-4963

TIRE

$369.99

$

Usually ships in 3-6 days

0

Exmark 109-3156

RIM

$243.99

$

In Stock, Qty 10

0

13

Exmark 109-3972

ASM,XS ENGINE DECK W/DECA

$

$

Not available

14

Exmark 103-5161

LINK-STOP, SEAT

$22.99

$

Usually ships in 3-6 days

0

15

Exmark 107-1881

KNOB KIT

$219.99

$

Usually ships in 3-6 days

0

16

Seat, Suspension

Note: Includes seat assembly plus tracks item #25, seat stops item #17, and seat wiring harness (item #39 pg. 23). Does not include seat belt assembly item #42.

$

$

Not available

Exmark 109-3343

SPRING AND SADDLE KIT

$176.99

$

Usually ships in 3-6 days

0

Exmark 109-3344

BACK PANEL KIT

$170.99

$

Usually ships in 3-6 days

0

Exmark 109-3345

WEIGHT ADJUST KIT

$176.99

$

Usually ships in 3-6 days

0

17

Exmark 1-653282-03

STOP/SPACER-SEAT

$54.99

$

Usually ships in 3-6 days

0

18

Exmark 107-1885

WEIGHT INDICATOR KIT

$57.99

$

In Stock, only 1 left!

0

19

Exmark 107-0075

BUSHING-LATCH, SEAT

$5.49

$

Usually ships in 3-6 days

0

20

Exmark 109-2759

LINK-STOP, SEAT

$21.99

$

Usually ships in 3-6 days

0

21

Exmark 103-3666

ASM,CUBBY

$181.99

$

Usually ships in 3-6 days

0

22

Exmark 32122-28

SCREW

$5.99

$

Usually ships in 3-6 days

0

23

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

25

Exmark 107-1880

SEAT TRACK KIT

$384.99

$

Usually ships in 3-6 days

0

26

Exmark 103-3790

LATCH,CUBBY

$50.99

$

Usually ships in 3-6 days

0

27

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

28

Exmark 109-2075

ASM, CONSOLE W/DECALS

$255.99

$

Usually ships in 3-6 days

0

29

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

30

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

31

P/N 492932 Oil Filter

Note: (not shown) Refer to Engine Owner's Manual.

$

$

Not available

32

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

33

Exmark 1-803075

SCREW-HEAD, TRUSS

$1.49

$

In Stock, Qty 5

0

34

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

35

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

36

Exmark 109-0060

KIT, 06 XS ROPS

Note: Rollover protection frame is serviced as a complete assembly only. Includes complete ROPS frame, mounting hardware, fold pivot and locking hardware, seat frame assembly item #52, and seat belt assembly item #42. Items #35, 55, & 56 are not included.

$512.99

$

Usually ships in 3-6 days

0

37

Exmark 107-1883

BOTTOM CUSHION KIT

$476.99

$

Usually ships in 3-6 days

0

38

Exmark 82-2190

SWITCH-BAIL

$14.99

$

In Stock, Qty 20+

0

39

Exmark 107-1887

PAD-ARMREST

$120.99

$

In Stock, only 2 left!

0

40

Exmark 107-1884

SHOCK ABSORBER KIT

$313.99

$

Usually ships in 3-6 days

0

41

Exmark 107-1882

BACK CUSHION KIT

$481.99

$

Usually ships in 3-6 days

0

42

Exmark 110-0883

RETRACTABLE SEATBELT KIT

$274.99

$

Usually ships in 3-6 days

0

43

Exmark 3212-4

SCREW-HH

$3.49

$

In Stock, Qty 20+

0

44

Exmark 1-603610

WASHER-SPRING

$5.49

$

In Stock, Qty 20+

0

45

Exmark 107-3155

HAIRPIN

$6.49

$

Usually ships in 3-6 days

0

46

Exmark 325-13

SCREW-HH

$0.99

$

In Stock, only 2 left!

0

47

Exmark 103-4553

PIN-FOLD, ROPS

Note: Includes ROPS fold pin plus hairpin, item #45.

$79.99

$

In Stock, only 2 left!

0

48

Exmark 32128-23

NUT-HF

$1.99

$

In Stock, only 2 left!

0

49

Exmark 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 20+

0

50

Exmark 109-2365

BUMPER-RUBBER

$5.49

$

In Stock, Qty 13

0

51

Exmark 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 8

0

52

Exmark 109-9228

KIT,SEAT FRAME SERVICE

$

$

Not available

53

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

54

Exmark 103-5520

CATCH-LATCH, SINGLE

$170.99

$

Usually ships in 3-6 days

0

55

Exmark 103-7599-03

GUARD

$54.99

$

Usually ships in 3-6 days

0

56

Exmark 109-2394

U-BOLT

$13.99

$

Usually ships in 3-6 days

0
