LXS29LKA725 - Exmark 72" Lazer Z XS Liquid Cooled Zero-Turn Mower, 29hp Kawasaki (SN: 720000 - 789999) (2008) Cooling Group Parts Diagram

72" Lazer Z XS Liquid Cooled Zero-Turn Mower, 29hp Kawasaki

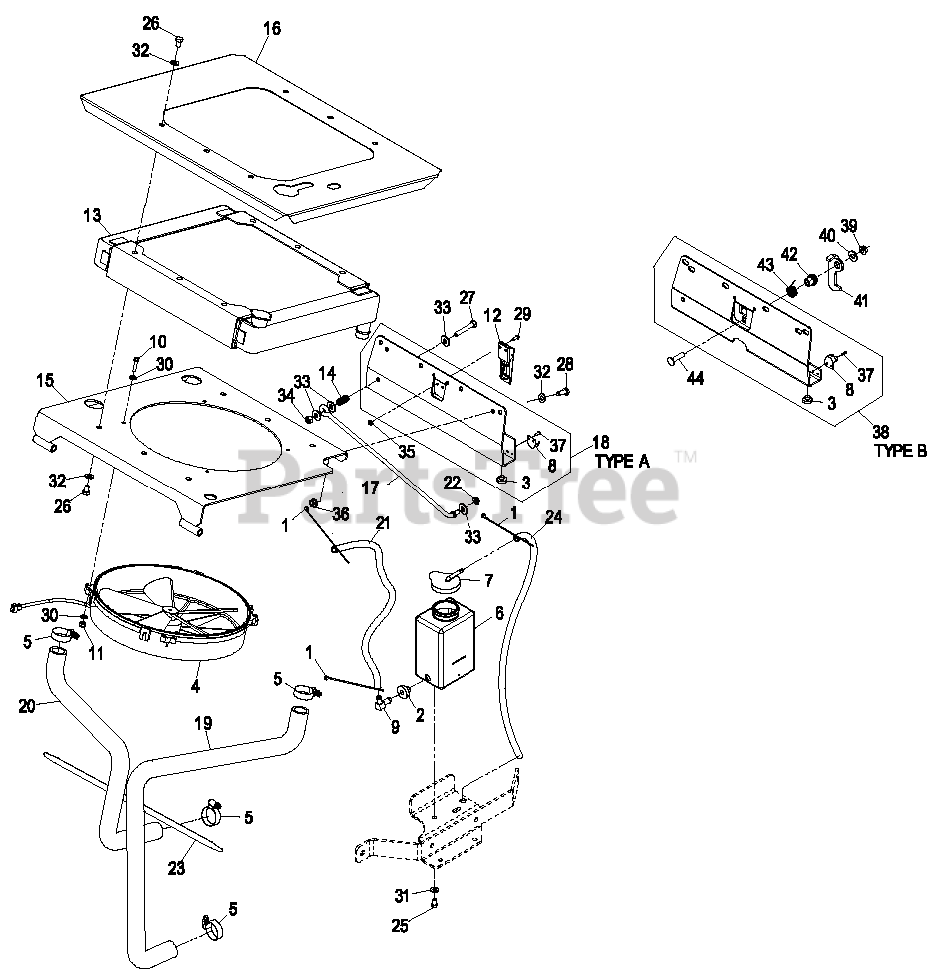

Cooling Group Parts Diagram

  • Title

1

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

2

Exmark 1-513645

46-6560
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

3

Exmark 1-513658

BUMPER

$6.49

$

In Stock, Qty 9

0

4

Exmark 1-633831

FAN

$615.99

$

Usually ships in 3-6 days

0

5

Exmark 1-633989

2412-34
(Superseded to 2412-34)

$2.49

$

In Stock, only 3 left!

0

6

Exmark 1-643163

TANK-OVERFLOW

$96.99

$

Usually ships in 3-6 days

0

7

Exmark 1-643164

CAP-TANK, OVERFLOW

$19.99

$

In Stock, only 3 left!

0

8

Exmark 1-643189

249-40
(Superseded to 249-40)

$11.99

$

Usually ships in 3-6 days

0

9

Exmark 1-643259

46-6550
(Superseded to 46-6550)

$41.99

$

Usually ships in 3-6 days

0

10

Exmark 1-803067

SCREW

$1.49

$

Usually ships in 3-6 days

0

11

Exmark 1-804254

NUT-LOCK, HH

$1.49

$

In Stock, Qty 20+

0

12

Exmark 69-3020

LATCH-CAMLOC

Note: Used with Type A radiator latch

$54.99

$

Usually ships in 3-6 days

0

13

Exmark 103-1046

RADIATOR-MOUNT

$868.99

$

Usually ships in 3-6 days

0

Exmark 1-643161

CAP-RADIATOR

$84.99

$

In Stock, only 3 left!

0

14

Exmark 103-6643

SPRING,LOCK PIN

$2.99

$

Usually ships in 3-6 days

0

15

Exmark 103-9093-03

DISCONTINUED

$

$

Not available

16

Exmark 109-0063

DISCONTINUED

$

$

Not available

17

Exmark 103-9207

ROD,PROP

$41.99

$

Usually ships in 3-6 days

0

18

Exmark 109-2805

109-8540
(Superseded to 109-8540)

Note: Used with Type A radiator latch

$215.99

$

Usually ships in 3-6 days

0

19

Exmark 103-9865

DISCONTINUED

$

$

Not available

20

Exmark 109-0040

HOSE, RADIATOR

$162.99

$

Usually ships in 3-6 days

0

21

Exmark 109-0041

HOSE, OVERFLOW

$

$

Not available

22

Exmark 109-0917

32112-11
(Superseded to 32112-11)

$1.49

$

In Stock, only 3 left!

0

23

Exmark 109-2232

DISCONTINUED

$

$

Not available

24

Exmark 109-2669

HOSE

$12.99

$

In Stock, only 1 left!

0

25

Exmark 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

26

Exmark 322-1

SCREW-HH

$0.99

$

In Stock, Qty 9

0

27

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

28

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Exmark 3250-26

SCREW-PPH

Note: Used with Type A radiator latch

$7.99

$

Usually ships in 3-6 days

0

30

Exmark 3256-16

WASHER-FLAT

$0.99

$

In Stock, Qty 14

0

31

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

32

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

33

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

34

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

35

Exmark 3296-54

NUT-LOCK

Note: Used with Type A radiator latch

$5.49

$

Usually ships in 3-6 days

0

36

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

37

Exmark 923786

3269-24
(Superseded to 3269-24)

$2.99

$

In Stock, Qty 12

0

38

Exmark 109-8545

DISCONTINUED

Note: Used with Type B radiator latch

$

$

Not available

39

Exmark 32128-25

NUT-HF

Note: Used with Type B radiator latch

$3.49

$

In Stock, Qty 12

0

40

Exmark 3256-3

WASHER-FLAT

Note: Used with Type B radiator latch

$0.99

$

In Stock, Qty 20+

0

41

Exmark 109-8431

HOOK,LATCH

Note: Used with Type B radiator latch

$17.99

$

Usually ships in 3-6 days

0

42

Exmark 107-0075

BUSHING-LATCH, SEAT

Note: Used with Type B radiator latch

$5.49

$

Usually ships in 3-6 days

0

43

Exmark 109-8430

SPRING,LATCH

Note: Used with Type B radiator latch

$8.49

$

Usually ships in 3-6 days

0

44

Exmark 112-6950

SCREW-CARR

Note: Used with Type B radiator latch

$0.99

$

In Stock, Qty 10

0
