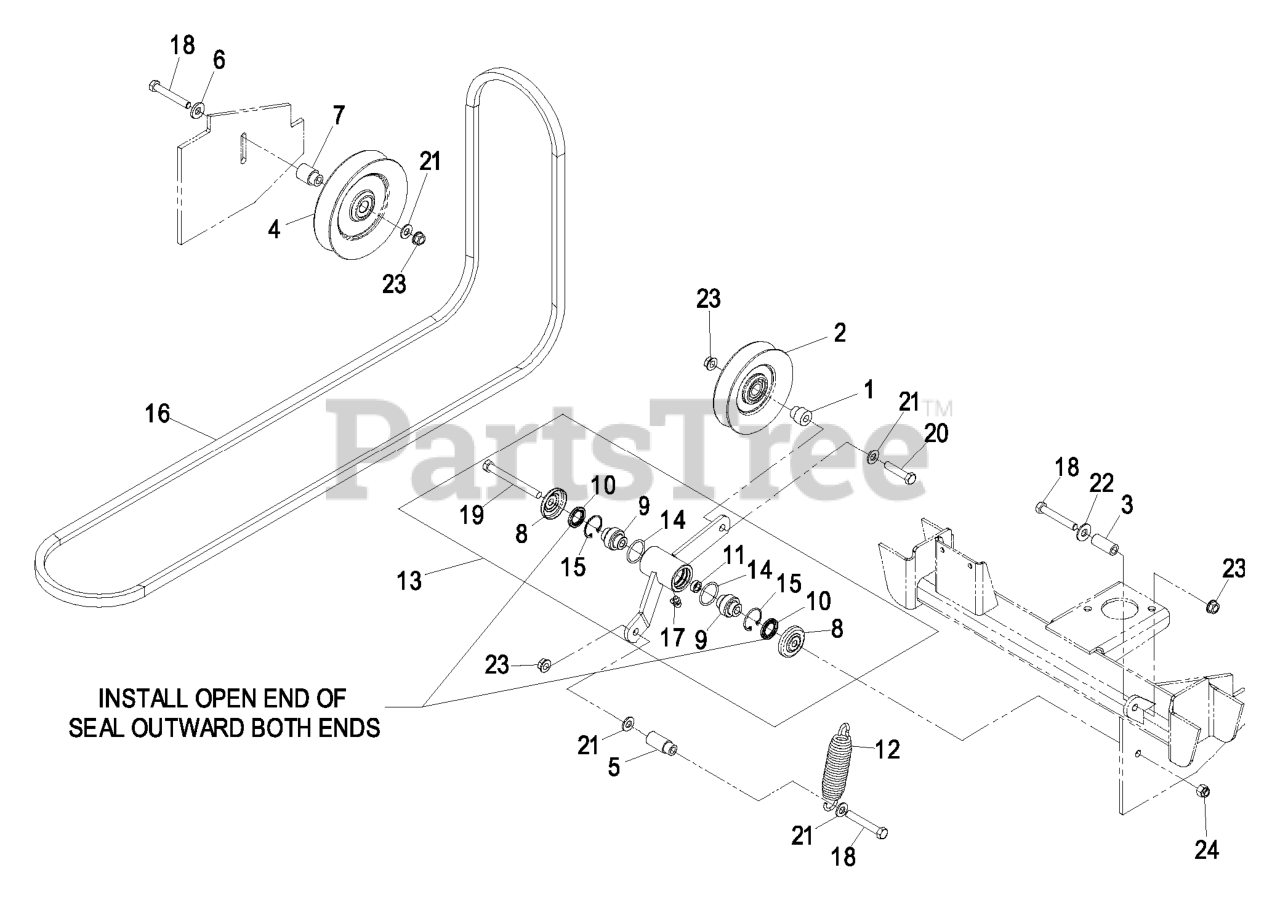

LXS25KD725 XS - Exmark 72" Lazer Z XS Diesel Zero-Turn Mower, 25hp Kubota (SN: 600000 - 669999) (2006) Engine Deck Group Parts Diagram

72" Lazer Z XS Diesel Zero-Turn Mower, 25hp Kubota

Engine Deck Group Parts Diagram

  • Title

1

Exmark 1-603496

BUSHING-IDLER

$7.49

$

In Stock, Qty 20+

0

2

Exmark 1-603805

PULLEY-IDLER

$54.99

$

In Stock, Qty 14

0

3

Exmark 1-633082

BUSHING-LEVER, LIFT

$11.99

$

Usually ships in 3-6 days

0

4

Exmark 1-633166

PULLEY-IDLER

$56.99

$

In Stock, only 4 left!

0

5

Exmark 1-653366

HUB

$25.99

$

In Stock, only 1 left!

0

6

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

7

Exmark 103-2627

BUSHING-IDLER

$3.49

$

In Stock, Qty 20+

0

8

Exmark 103-2916

GUARD-TOP

$2.99

$

In Stock, Qty 9

0

9

Exmark 103-3504

BEARING-SPHERICAL

$25.99

$

In Stock, Qty 20+

0

10

Exmark 103-3506

SEAL-LIP, SINGLE

$5.49

$

In Stock, Qty 19

0

11

Exmark 103-5677

SPACER

$2.99

$

In Stock, only 3 left!

0

12

Exmark 103-8599

116-6316
(Superseded to 116-6316)

$23.99

$

In Stock, only 3 left!

0

13

Exmark 103-9250

116-5042
(Superseded to 116-5042)

$298.99

$

Usually ships in 3-6 days

0

14

Exmark 106-7159

O-RING

$1.49

$

In Stock, Qty 20+

0

15

Exmark 32120-10

RING-SNAP

$1.49

$

In Stock, Qty 20+

0

16

Exmark 109-2994

109-4199
(Superseded to 109-4199)

$112.99

$

In Stock, only 1 left!

0

17

Exmark 302-40

FITTING-GREASE, 90 DEG

$3.49

$

In Stock, Qty 20+

0

18

Exmark 3231-2

BOLT-CARR

$1.99

$

In Stock, Qty 16

0

19

Exmark 323-42

SCREW-HH

$8.49

$

Usually ships in 3-6 days

0

20

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

22

Exmark 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

23

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

24

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 19

0

Exmark 103-9250

116-5042
(Superseded to 116-5042)

Note: includes components shown and nyloc nut item #24.

$298.99

$

Usually ships in 3-6 days

0

Exmark 1-840022

PRO-LOCK,NUT TYPE

$18.99

$

Usually ships in 3-6 days

0

Exmark 103-9229-03

$

$

Currently unavailable
