LXS25KD725 XS - Exmark 72" Lazer Z XS Diesel Zero-Turn Mower, 25hp Kubota (SN: 600000 - 669999) (2006) Electrical Group Parts Diagram

72" Lazer Z XS Diesel Zero-Turn Mower, 25hp Kubota

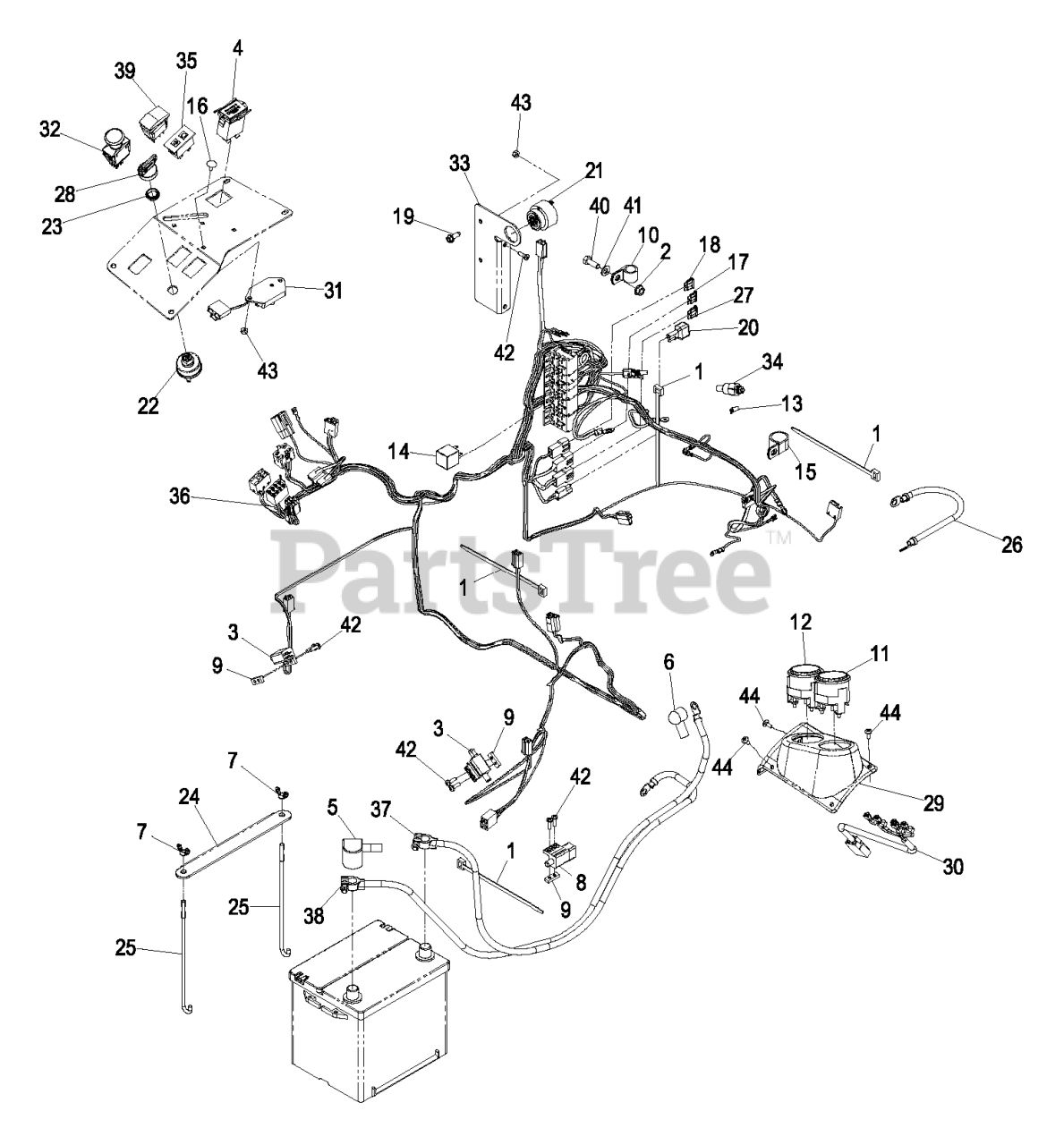

Electrical Group Parts Diagram

  • Title

1

Exmark 1-303335

TIE-PLASTIC
(Superseded to 3290-378)

$0.99

$

In Stock, Qty 8

0

2

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

3

Exmark 1-513051

SWITCH-OPEN, NORMALLY

$19.99

$

In Stock, Qty 20+

0

4

Exmark 1-513374

METER-HOUR
(Superseded to 120-2244)

$69.99

$

In Stock, only 1 left!

0

5

Exmark 1-543391

109-2407
(Superseded to 109-2407)

$5.49

$

In Stock, only 3 left!

0

6

Exmark 1-543393

INSULATOR-SOLENOID

$5.49

$

In Stock, only 2 left!

0

7

Exmark 1-543792

WINGNUT

$6.49

$

In Stock, Qty 15

0

8

Exmark 1-633111

SWITCH

$21.99

$

In Stock, Qty 19

0

9

Exmark 1-633181

PLATE-TAPPED

$6.49

$

In Stock, only 2 left!

0

10

Exmark 1-633396

CLIP-LOOM

$5.49

$

Usually ships in 3-6 days

0

11

Exmark 1-643021

GAUGE-TEMPERATURE

$142.99

$

In Stock, only 2 left!

0

12

Exmark 1-643037

GAUGE-VOLTMETER

$210.99

$

In Stock, only 1 left!

0

13

Exmark 1-643145

TAB

$2.99

$

In Stock, Qty 5

0

14

Exmark 1-643275

RELAY

$23.99

$

In Stock, Qty 6

0

15

Exmark 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

0

16

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

17

Exmark 1-816001

FUSE-BLADE TYPE, 20 AMP

$6.49

$

In Stock, Qty 13

0

18

Exmark 1-816003

FUSE-BLADE TYPE, 30 AMP

$5.99

$

Usually ships in 3-6 days

0

19

Exmark 49-2040

SCREW-HWHTF

$2.49

$

In Stock, Qty 20+

0

20

Exmark 100-4918

DIODE

$21.99

$

In Stock, only 1 left!

0

21

Exmark 103-0205

ALARM-TONE, DUAL

$67.99

$

In Stock, only 2 left!

0

22

Exmark 103-0206

109-4736
(Superseded to 109-4736)

$42.99

$

In Stock, Qty 15

0

23

Exmark 103-0498

NUT-SWITCH, IGNITION

$3.49

$

In Stock, Qty 6

0

24

Exmark 103-1311-03

HOLDDOWN-BATTERY

$27.99

$

Usually ships in 3-6 days

0

25

Exmark 103-1312

BOLT-HOLDDOWN

$6.49

$

Usually ships in 3-6 days

0

26

Exmark 103-1349

CABLE-ENGINE NEGATIVE

$18.99

$

Usually ships in 3-6 days

0

27

Exmark 103-1368

FUSE-40 AMP

$5.49

$

Usually ships in 3-6 days

0

28

Exmark 103-2106

KEY-IGNITION

$5.49

$

In Stock, Qty 7

0

29

Exmark 103-3684

BEZEL, GAGE XP LH TANK

$95.99

$

Usually ships in 3-6 days

0

30

Exmark 103-4399

ROD,LINKAGE BRAKE (PLATED

Note: Use dielectric grease on all wiring harness connectors.

$

$

Not available

31

Exmark 103-5218

MODULE-DELAY, SEAT

$45.99

$

In Stock, Qty 5

0

32

Exmark 103-5221

SWITCH-PTO

$58.99

$

In Stock, Qty 20+

0

33

Exmark 109-3495

ASM,RELAY BRKT W/ DECALS

$60.99

$

Usually ships in 3-6 days

0

34

Exmark 103-7886

SENDER,TEMPERATURE

Note: Use Teflon pipe sealant on pipe threads on temperature sending unit.

$79.99

$

Usually ships in 3-6 days

0

35

Exmark 109-2488

LAMP-WARNING

$67.99

$

In Stock, only 1 left!

0

36

Exmark 109-3073

HARNESS, WIRE KD902

Note: Use dielectric grease on all wiring harness connectors.

$

$

Not available

37

Exmark 109-3074

CABLE-BATTERY NEGATIVE

$66.99

$

Usually ships in 3-6 days

0

38

Exmark 109-3075

CABLE-BATTERY POSITIVE

$

$

Not available

39

Exmark 110-0811

SWITCH-ROCKER

$70.99

$

Usually ships in 3-6 days

0

40

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

41

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

42

Exmark 3290-500

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

43

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

44

Exmark 109-2661

SCREW-PPH

$1.49

$

In Stock, Qty 11

0
