LXS25KD725 - Exmark 72" Lazer Z XS Diesel Zero-Turn Mower, 25hp Kubota (SN: 670000 - 719999) (2007) Deck Group (cont.) Parts Diagram

72" Lazer Z XS Diesel Zero-Turn Mower, 25hp Kubota

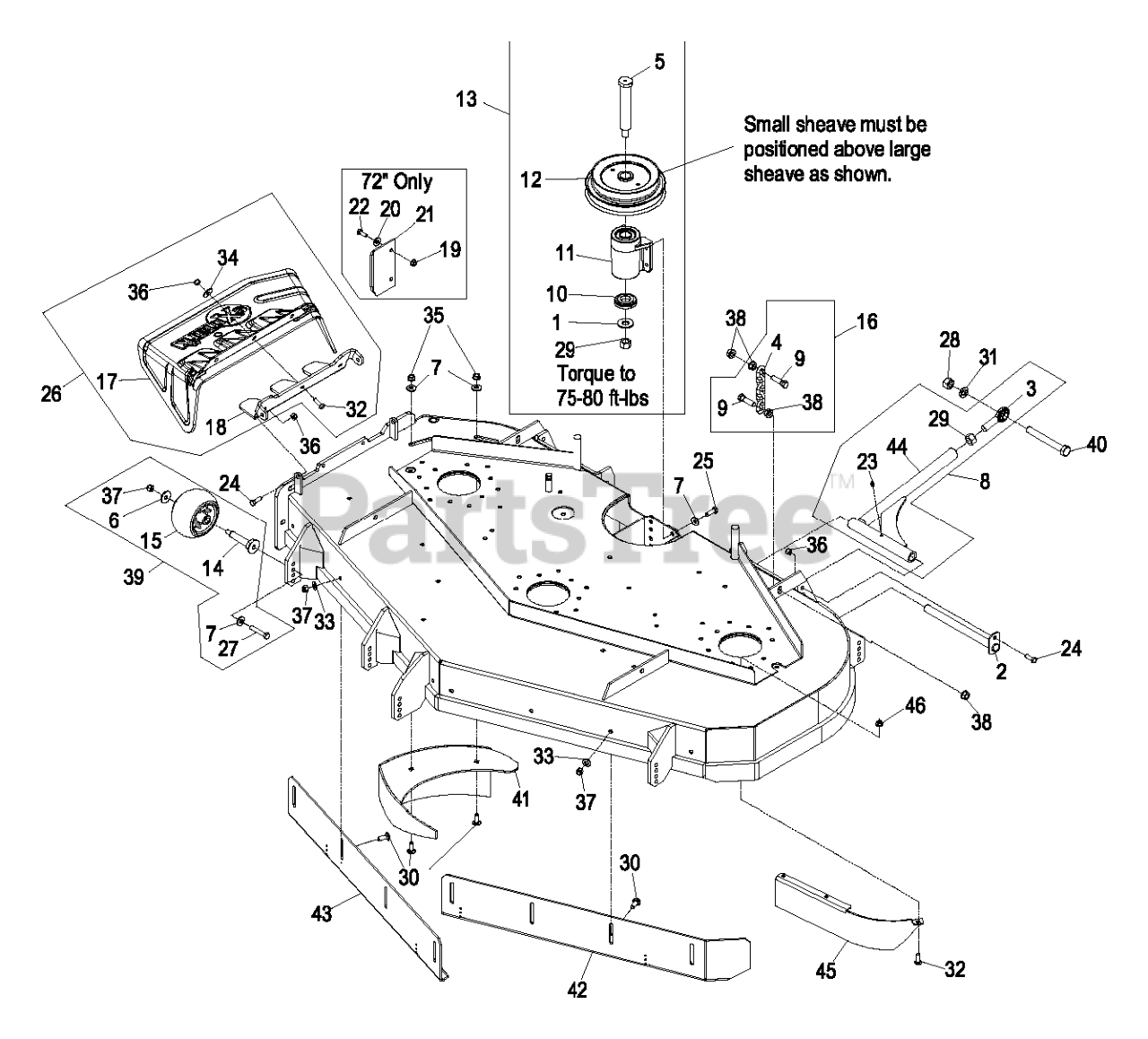

Deck Group (cont.) Parts Diagram

  • Title

1

Exmark 1-513208

WASHER-SPRING

$8.99

$

In Stock, only 2 left!

0

2

Exmark 1-632199-01

PIN-STRUT

$35.99

$

In Stock, Qty 12

0

3

Exmark 1-633029

BALLJOINT-SPHERICAL

$66.99

$

In Stock, Qty 12

0

4

Exmark 1-633447

CHAIN-LIFT, DECK

$10.99

$

In Stock, Qty 16

0

5

Exmark 1-643393

JACKSHAFT

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings and jackshaft and sheaves. DO NOT use a copper or nickel based antisieze.

$33.99

$

Usually ships in 3-6 days

0

6

Exmark 63-8410

WASHER

$1.99

$

In Stock, Qty 14

0

7

Exmark 98-5975

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 20+

0

8

Exmark 103-8543

ASM,DECK STRUT XS 60

$201.99

$

Usually ships in 3-6 days

0

Exmark 103-8544

ASM,DECK STRUT XS 72

$354.99

$

Usually ships in 3-6 days

0

9

Exmark 103-1898

SCREW-HH

$1.99

$

In Stock, Qty 20+

0

10

Exmark 103-2535

SPACER-GUARD, BOTTOM

$12.99

$

In Stock, only 3 left!

0

11

Exmark 103-9746

KIT, JACKSHAFT ASSY

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings and jackshaft and sheaves. DO NOT use a copper or nickel based antisieze.

$263.99

$

In Stock, only 1 left!

0

12

Exmark 103-3046

SHEAVE, JACKSHAFT DOUBLE

Note: Apply Mobil HTS grease (P/N 103-5217 1.5 oz packet) (or a food-grade antisieze) between the jackshaft and bearings and jackshaft and sheaves. DO NOT use a copper or nickel based antisieze.

$111.99

$

In Stock, only 3 left!

0

13

Exmark 103-3249

KIT,JACKSHAFT 60/72-3750

$464.99

$

In Stock, only 1 left!

0

14

Exmark 103-5364

116-9981
(Superseded to 116-9981)

$52.99

$

In Stock, Qty 20+

0

15

Exmark 103-8415

ROLLER-SCALP, ANTI

$23.99

$

In Stock, Qty 5

0

16

Exmark 103-9792

DECK CHAIN ASM

$13.99

$

In Stock, only 1 left!

0

17

Exmark 109-2739

CHUTE,DISCHARGE LZ

$91.99

$

Usually ships in 3-6 days

0

18

Exmark 109-0498-01

HINGE,DISCHARGE CHUTE

$92.99

$

Usually ships in 3-6 days

0

19

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

20

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

21

Exmark 103-9423-01

DEFLECTOR,DISCHARGE

$28.99

$

Usually ships in 3-6 days

0

22

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

23

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 8

0

24

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

25

Exmark 323-6

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

26

Exmark 109-2099

ASM, DISCHARGE CHUTE

$215.99

$

In Stock, only 1 left!

0

27

Exmark 3211-46

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

28

Exmark 3217-11

NUT-HEX

$3.49

$

In Stock, Qty 14

0

29

Exmark 3219-6

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

30

Exmark 3231-22

SCREW-CARR

$3.49

$

In Stock, Qty 20+

0

31

Exmark 3253-8

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

32

Exmark 3230-22

SCREW-CARR
(Superseded to 3230-22)

$2.49

$

In Stock, only 2 left!

0

33

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0

34

Exmark 3256-82

WASHER-FLAT

$0.99

$

In Stock, Qty 7

0

35

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

36

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

37

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 8

0

38

Exmark 32128-37

NUT-HF

$4.49

$

In Stock, Qty 17

0

39

Exmark 109-2098

116-9981
(Superseded to 116-9981)

$52.99

$

In Stock, Qty 20+

0

40

Exmark 327-28

SCREW-HH

$18.99

$

Usually ships in 3-6 days

0

41

Exmark 109-0694-01

WLD,DOGLEG 605

$183.99

$

Usually ships in 3-6 days

0

Exmark 109-0821-01

WLD,DOGLEG 665

$

$

Not available

Exmark 109-1039-01

WLD,DOGLEG 725

$227.99

$

Usually ships in 3-6 days

0

42

Exmark 109-0701-01

WLD,BAFFLE FRT ADJ LH 605

$200.99

$

Usually ships in 3-6 days

0

Exmark 109-0822-01

WLD,BAFFLE FRONT ADJ LH 6

$

$

Not available

Exmark 109-1044-01

WLD,BAFFLE FRT ADJ LH 725

$290.99

$

Usually ships in 3-6 days

0

43

Exmark 109-0704-01

WLD,BAFFLE FRT ADJ RH 605

$200.99

$

Usually ships in 3-6 days

0

Exmark 109-0823-01

WLD,BAFFLE FRONT ADJ RH 6

$

$

Not available

Exmark 109-1047-01

WLD,BAFFLE FRT ADJ RH 725

$290.99

$

Usually ships in 3-6 days

0

44

Exmark 103-1355-01

109-1184
(Superseded to 109-1184)

$124.99

$

In Stock, only 1 left!

0

Exmark 103-0100-01

103-0840
(Superseded to 103-0840)

$331.99

$

In Stock, only 1 left!

0

45

Exmark 109-5424-01

BAFFLE,SCROLL 605

$

$

Not available

Exmark 109-5531-01

BAFFLE,SCROLL 665

$

$

Not available

Exmark 109-5532-01

BAFFLE,SCROLL 725

$132.99

$

Usually ships in 3-6 days

0

46

Exmark 104-8300

NUT-HF, NI

$1.49

$

In Stock, Qty 17

0

Exmark 1-850337

PAINT,SPRAY RED

$27.99

$

In Stock, Qty 16

0

Exmark 103-9140

PAINT, TOUCH UP

$21.99

$

In Stock, only 1 left!

0
