LXS25KD665 XS - Exmark 66" Lazer Z XS Diesel Zero-Turn Mower, 25hp Kubota (SN: 600000 - 669999) (2006) Cooling Group Parts Diagram

66" Lazer Z XS Diesel Zero-Turn Mower, 25hp Kubota

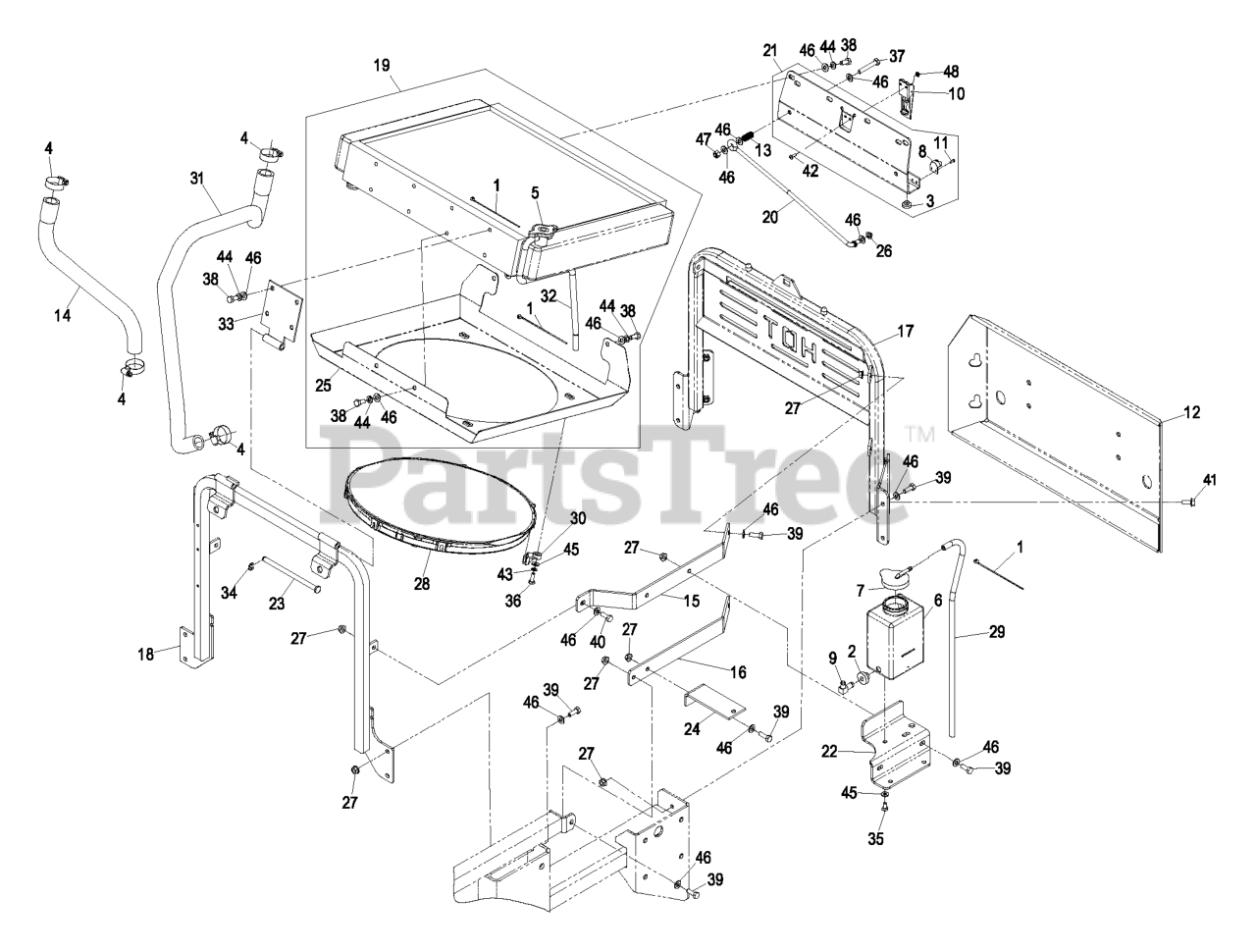

Cooling Group Parts Diagram

  • Title

1

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

2

Exmark 1-513645

46-6560
(Superseded to 46-6560)

$6.49

$

In Stock, Qty 20+

0

3

Exmark 1-513658

BUMPER

$6.99

$

In Stock, Qty 20+

0

4

Exmark 1-633989

2412-34
(Superseded to 2412-34)

$2.49

$

In Stock, only 3 left!

0

5

Exmark 1-643161

CAP-RADIATOR

$88.99

$

In Stock, only 3 left!

0

6

Exmark 1-643163

TANK-OVERFLOW

$102.99

$

Usually ships in 3-6 days

0

7

Exmark 1-643164

CAP-TANK, OVERFLOW

$20.99

$

In Stock, only 2 left!

0

8

Exmark 1-643189

249-40
(Superseded to 249-40)

$12.99

$

Usually ships in 3-6 days

0

9

Exmark 1-643259

46-6550
(Superseded to 46-6550)

$44.99

$

Usually ships in 3-6 days

0

10

Exmark 69-3020

LATCH-CAMLOC

$57.99

$

Usually ships in 3-6 days

0

11

Exmark 923786

3269-24
(Superseded to 3269-24)

$2.99

$

In Stock, Qty 11

0

12

Exmark 103-1479-03

WLD,REAR BUMPER

$242.99

$

Usually ships in 3-6 days

0

13

Exmark 103-6643

SPRING,LOCK PIN

$3.49

$

Usually ships in 3-6 days

0

14

Exmark 103-7532

HOSE,RADIATOR UPPER D902(

$132.99

$

Usually ships in 3-6 days

0

15

Exmark 103-7558-03

RIB, TOP

$

$

Not available

16

Exmark 103-7579-03

RIB, BOTTOM

$

$

Not available

17

Exmark 103-7581-03

109-8546-03
(Superseded to 109-8546-03)

$689.99

$

Usually ships in 3-6 days

0

18

Exmark 109-2804

ASM, RAD. MOUNT W/ DECALS

$

$

Not available

19

Exmark 103-7715

109-7547
(Superseded to 109-7547)

Note: Radiator assembly does not include items, #1 or #32.

$1924.99

$

Usually ships in 3-6 days

0

20

Exmark 103-9207

ROD,PROP

$44.99

$

Usually ships in 3-6 days

0

21

Exmark 109-3312

ASM,LATCH PLATE W/DECALS

$

$

Not available

22

Exmark 103-9214-03

BRACKET,BOTTLE

$

$

Not available

23

Exmark 103-9218

PIN

$20.99

$

In Stock, only 1 left!

0

24

Exmark 109-0089-03

BRACKET, HYDRAULIC TANK

$

$

Not available

25

Exmark 109-0796-03

SHROUD,FAN

$

$

Not available

26

Exmark 109-0917

32112-11
(Superseded to 32112-11)

$1.49

$

In Stock, Qty 20+

0

27

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

28

Exmark 109-2479

109-8541
(Superseded to 109-8541)

Note: Includes item, #30.

$568.99

$

Usually ships in 3-6 days

0

29

Exmark 109-2669

HOSE

$13.99

$

In Stock, only 1 left!

0

30

Exmark 109-2950

MOUNT,FAN

$6.49

$

Usually ships in 3-6 days

0

31

Exmark 109-3142

HOSE,RADIATOR LOWER D902

$164.99

$

Usually ships in 3-6 days

0

32

Exmark 109-3143

HOSE,OVERFLOW

$

$

Not available

33

Exmark 109-3179-03

WLD,HINGE PLATE

$

$

Not available

34

Exmark 32120-18

E-RING

$1.49

$

In Stock, Qty 20+

0

35

Exmark 321-2

SCREW-HH

$3.99

$

In Stock, only 3 left!

0

36

Exmark 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

37

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

38

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

39

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

40

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

41

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

42

Exmark 3250-26

SCREW-PPH

$8.49

$

Usually ships in 3-6 days

0

43

Exmark 325-33

SCREW-HH

$14.99

$

In Stock, only 4 left!

0

44

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

45

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

46

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

47

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

48

Exmark 3296-54

NUT-LOCK

$5.49

$

Usually ships in 3-6 days

0
