LXS25KD665 - Exmark 66" Lazer Z XS Diesel Zero-Turn Mower, 25hp Kubota (SN: 790000 - 849999) (2009) Front Frame Group Parts Diagram

66" Lazer Z XS Diesel Zero-Turn Mower, 25hp Kubota

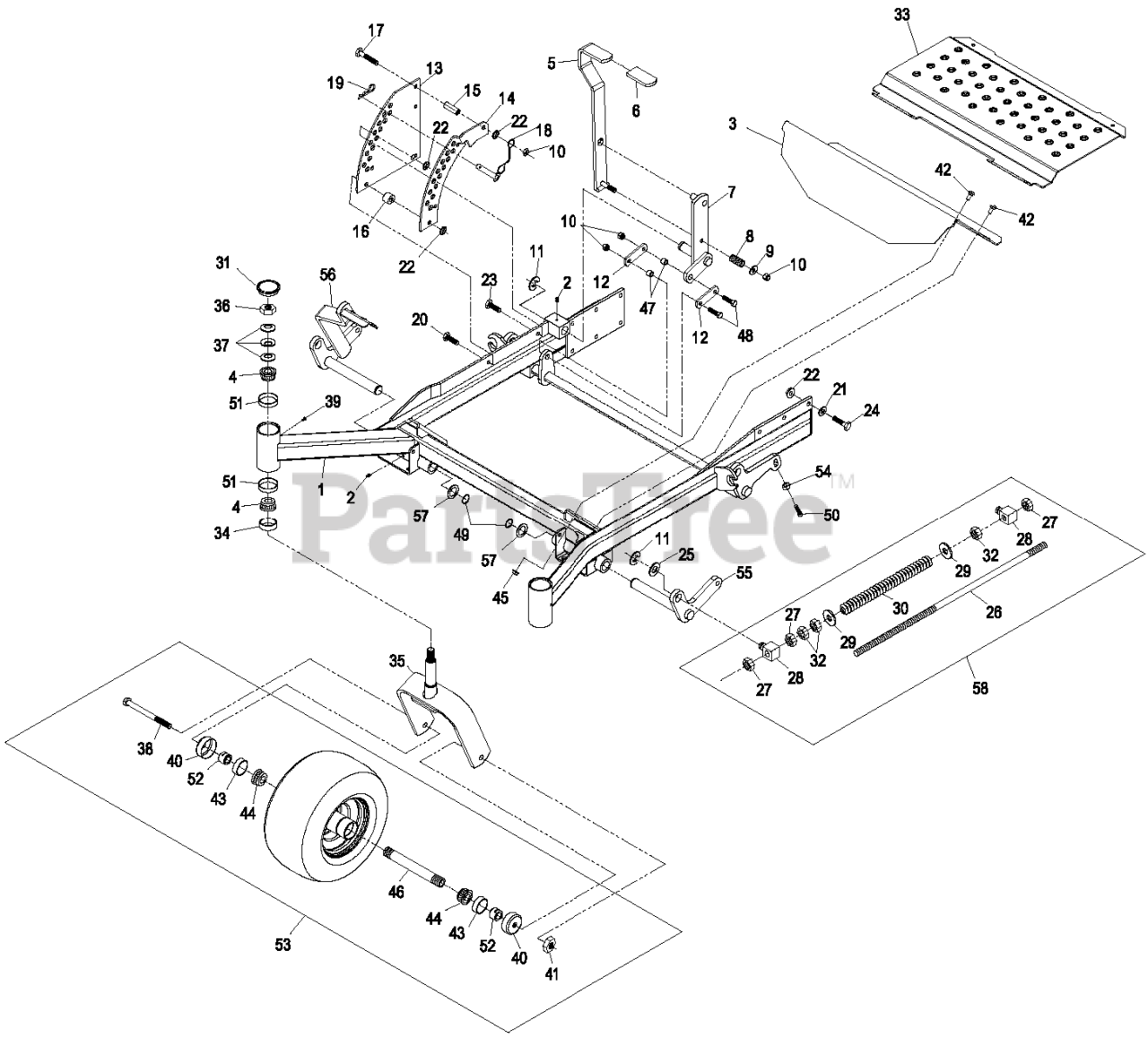

Front Frame Group Parts Diagram

  • Title

1

Exmark 109-2072

ASM, FRONT FRAME 60"

Note: Includes frame weldment plus items #2, #31, #34, #39, #49, #51, #55, #56 and #57.

$3686.99

$

Usually ships in 3-6 days

0

Exmark 109-2073

ASM, FRONT FRAME 66"

Note: Includes frame weldment plus items #2, #31, #34, #39, #49, #51, #55, #56 and #57.

$

$

Not available

Exmark 109-2074

ASM, FRONT FRAME 72"
(Superseded to 116-9499)

Note: Includes frame weldment plus items #2, #31, #34, #39, #49, #51, #55, #56 and #57.

$

$

Not available

2

Exmark 302-19

FITTING-GREASE

$2.49

$

In Stock, Qty 20+

0

3

Exmark 109-1903

ASM, FLOORPAN FRONT W/DEC

$

$

Not available

4

Exmark 1-543509

Cone-Bearing Tapered Roller

$14.99

$

In Stock, Qty 20+

0

5

Exmark 103-2084

LIFT LEVER/GRIP ASM

$82.99

$

Usually ships in 3-6 days

0

6

Exmark 1-633295

GRIP-LEVER, LIFT

$8.49

$

In Stock, Qty 12

0

7

Exmark 103-9529-03

109-4487
(Superseded to 109-4487)

$

$

Not available

8

Exmark 1-633325

SPRING-COMPRESSION

$5.49

$

Usually ships in 3-6 days

0

9

Exmark 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

10

Exmark 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

11

Exmark 32151-103

RING-RETAINING, EXT

$3.49

$

In Stock, Qty 20+

0

12

Exmark 1-633068

ARM-LIFT, DECK

$12.99

$

Usually ships in 3-6 days

0

13

Exmark 1-633889-01

PLATE-LIFT, DECK

$

$

Not available

14

Exmark 109-1900

PLATE-LIFT,DECK W/DECAL L

$

$

Not available

15

Exmark 1-633082

BUSHING-LEVER, LIFT

$12.99

$

In Stock, only 2 left!

0

16

Exmark 109-3193

Stop, Deck Height

$

$

Currently unavailable

17

Exmark 323-13

SCREW-HH

$3.99

$

In Stock, Qty 20+

0

18

Exmark 1-633097

PIN-HITCH (W/LANYARD)

$25.99

$

In Stock, only 2 left!

0

19

Exmark 1-806005

PIN-COTTER

$2.99

$

In Stock, Qty 20+

0

20

Exmark 323-9

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

21

Exmark 98-5975

WASHER-BELLEVILLE

$3.99

$

In Stock, Qty 20+

0

22

Exmark 3290-357

NUT-HHF, WHIZ

$0.99

$

In Stock, Qty 20+

0

23

Exmark 323-6

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

24

Exmark 323-7

SCREW-HH

$2.99

$

In Stock, Qty 20+

0

25

Exmark 3256-29

WASHER-FLAT

$2.99

$

In Stock, only 2 left!

0

26

Exmark 1-633096

ROD-LIFT, DECK

$25.99

$

In Stock, Qty 6

0

27

Exmark 3217-11

NUT-HEX

$3.99

$

In Stock, Qty 20+

0

28

Exmark 1-633441

SWIVEL-DECK MOUNT, REAR

$28.99

$

Usually ships in 3-6 days

0

29

Exmark 3256-7

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

30

Exmark 109-4963

SPRING,DECK SUPPORT

$

$

Not available

31

Exmark 103-4882

CAP-GREASE

$8.49

$

In Stock, Qty 20+

0

32

Exmark 3218-6

NUT-JAM

$6.99

$

In Stock, Qty 19

0

33

Exmark 109-1902

ASM, FLOORPAN LIFTOUT W/D

$

$

Not available

34

Exmark 1-543511

SEAL-GREASE

$12.99

$

In Stock, Qty 20+

0

35

Exmark 103-1474-01

116-8888
(Superseded to 116-8888)

$197.99

$

In Stock, Qty 20+

0

36

Exmark 3296-51

NUT-LOCK, NI

$6.49

$

In Stock, Qty 20+

0

37

Exmark 1-633508

WASHER-BELLVILLE

$3.99

$

In Stock, Qty 20+

0

38

Exmark 325-39

SCREW-HH

$19.99

$

In Stock, Qty 20+

0

39

Exmark 1-811010

PLUG

$5.49

$

In Stock, Qty 10

0

40

Exmark 103-2768

GUARD-SEAL

$3.99

$

In Stock, Qty 20+

0

41

Exmark 3296-23

NUT-LOCK, NI

$1.49

$

In Stock, Qty 20+

0

42

Exmark 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

43

Exmark 103-0063

SEAL-CASTER

$9.49

$

In Stock, Qty 20+

0

44

Exmark 1-633585

BEARING-CONE, TAPERED ROLLER

$22.99

$

In Stock, Qty 20+

0

45

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

46

Exmark 103-5156

126-5361
(Superseded to 126-5361)

$20.99

$

In Stock, Qty 13

0

47

Exmark 103-1918

BUSHING

$8.49

$

In Stock, Qty 6

0

48

Exmark 323-29

SCREW-HH

$0.99

$

In Stock, Qty 14

0

49

Exmark 32151-29

RING-RETAINING

$5.49

$

In Stock, Qty 15

0

50

Exmark 3274-18

SCREW-HSH

$9.99

$

In Stock, Qty 7

0

51

Exmark 1-543508

CUP-BEARING

$8.49

$

In Stock, Qty 18

0

52

Exmark 103-3051

SPACER-NUT

Note: Use Pro-Lock, Nut Type (P/N 1-840022, .5ml tube) on spacer nut, Item #52.

$9.49

$

In Stock, Qty 20+

0

53

Exmark 109-9127

WHEEL & TIRE ASM

$362.99

$

In Stock, Qty 20+

0

54

Exmark 3218-2

NUT-JAM

$0.99

$

In Stock, Qty 20+

0

55

Exmark 103-9741-01

WLD,FRONT LIFT SHAFT-LH

$147.99

$

Usually ships in 3-6 days

0

56

Exmark 103-9740-01

WLD,FRONT LIFT W/LEVER

$242.99

$

Usually ships in 3-6 days

0

57

Exmark 1-523157

WASHER-SPACER

$1.99

$

In Stock, Qty 20+

0

58

Exmark 109-4995

ASM,FRONT FRAME SPRING

$123.99

$

In Stock, only 1 left!

0
