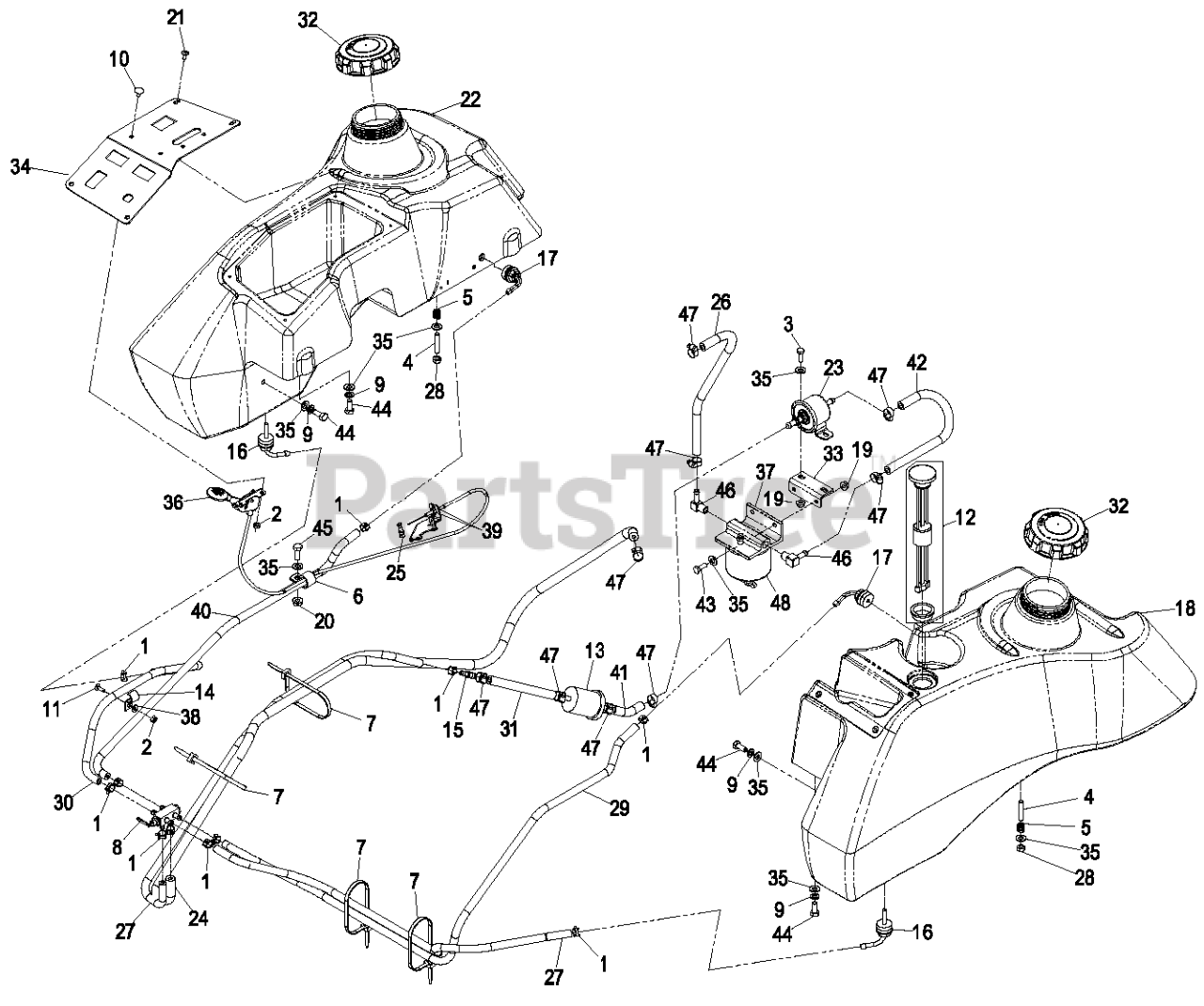

LXS25KD665 - Exmark 66" Lazer Z XS Diesel Zero-Turn Mower, 25hp Kubota (SN: 720000 - 789999) (2008) Fuel Group Parts Diagram

66" Lazer Z XS Diesel Zero-Turn Mower, 25hp Kubota

Fuel Group Parts Diagram

  • Title

1

Exmark 1-303077

CLAMP

$1.49

$

In Stock, Qty 8

0

2

Exmark 3296-2

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

3

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

4

Exmark 1-633023

STUD

Note: Use Pro-Lock, Retaining type (Part No. 1-840023), .5cc tube on stud threads going into the tank.

$6.49

$

Usually ships in 3-6 days

0

5

Exmark 1-633349

SPRING-TANK, FUEL

$5.49

$

In Stock, only 2 left!

0

6

Exmark 1-643312

CLIP-LOOM

$6.49

$

Usually ships in 3-6 days

0

7

Exmark 1-643115

TIE-PLASTIC

$2.99

$

Usually ships in 3-6 days

0

8

Exmark 1-643234

VALVE-FUEL, DUAL FLOW

$201.99

$

In Stock, only 1 left!

0

9

Exmark 1-805005

WASHER-LOCK

$1.49

$

In Stock, Qty 12

0

10

Exmark 1-807513

BOLT-CARR

$2.99

$

In Stock, Qty 15

0

11

Exmark 1-807533

BOLT-CARR

$1.49

$

In Stock, Qty 6

0

12

Exmark 103-6564

KIT, CT FUEL GAGE REPL.

$65.99

$

In Stock, Qty 8

0

13

Exmark 98-7612

FILTER-FUEL

$8.49

$

In Stock, Qty 20+

0

14

Exmark 103-1193

CLIP-HALF, LOOM

$2.99

$

Usually ships in 3-6 days

0

15

Exmark 103-2595

CONNECTOR

$6.49

$

Usually ships in 3-6 days

0

16

Exmark 103-2605

FITTING-FUEL, BULKHEAD

Note: Use Prolock, Nut type (Part No. 1-840022), .5ml tube on fuel fitting.

$36.99

$

In Stock, only 2 left!

0

Exmark 103-2784

O-RING,BULKHEAD FITTING

$13.99

$

In Stock, only 3 left!

0

17

Exmark 103-2615

FITTING-FUEL, BULKHEAD

Note: Use Prolock, Nut type (Part No. 1-840022), .5ml tube on fuel fitting.

$41.99

$

In Stock, only 1 left!

0

Exmark 103-2785

SPINDLE,SHORT

$115.99

$

In Stock, only 2 left!

0

18

Exmark 109-3611

116-0141
(Superseded to 116-0141)

Note: Includes tank, cap, fittings, and studs. LH tank also includes fuel gauge.

$829.99

$

Usually ships in 3-6 days

0

19

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

20

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

21

Exmark 109-2661

SCREW-PPH

Note: Snug fit only on slotted holes, Do Not Overtighten, tank must be able to expand.

$1.49

$

In Stock, Qty 11

0

22

Exmark 109-3612

ASM,DIESEL FUEL TANK RH
(Superseded to 116-0142)

Note: Includes tank, cap, fittings, and studs. LH tank also includes fuel gauge.

$774.99

$

In Stock, only 1 left!

0

23

Exmark KUBOTA

P/N 1G639-5203-0 Pump, Fuel

Note: Refer to Engine Owner's Manual.

$

$

Currently unavailable

24

Exmark 108-3682

HOSE-FUEL

$30.99

$

Usually ships in 3-6 days

0

25

Exmark 108-5928

SWIVEL-STOP, CABLE

$15.99

$

In Stock, only 1 left!

0

26

Exmark 109-0274

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

27

Exmark 109-0275

HOSE-FUEL

$13.99

$

Usually ships in 3-6 days

0

28

Exmark 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 8

0

29

Exmark 109-0289

HOSE-FUEL

$35.99

$

Usually ships in 3-6 days

0

30

Exmark 109-0302

HOSE-FUEL

$12.99

$

In Stock, Qty 5

0

31

Exmark 109-0310

HOSE-FUEL

$6.49

$

Usually ships in 3-6 days

0

32

Exmark 109-0347

CAP-FUEL, DIESEL

$41.99

$

Usually ships in 3-6 days

0

33

Exmark 109-0792-03

BRACKET,FUEL PUMP

$

$

Not available

34

Exmark 109-7875

ASM, CONTROL PANEL W/DECA

$86.99

$

Usually ships in 3-6 days

0

35

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

36

Exmark 109-6652

CABLE,THROTTLE

$49.99

$

In Stock, only 1 left!

0

37

Exmark 109-2678

FILTER HEAD ASM

$205.99

$

Usually ships in 3-6 days

0

38

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

39

Exmark 3220-1

NUT-JAM

$1.49

$

In Stock, only 2 left!

0

40

Exmark 109-3491

HOSE-FUEL

$26.99

$

Usually ships in 3-6 days

0

41

Exmark 110-0047

HOSE-FUEL

$14.99

$

Usually ships in 3-6 days

0

42

Exmark 110-4104

HOSE-FUEL

$10.99

$

Usually ships in 3-6 days

0

43

Exmark 321-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

44

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

45

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

46

Exmark 353-707

FITTING-HYD, 90 DEG

$51.99

$

Usually ships in 3-6 days

0

47

Exmark 2412-108

CLAMP-WORM

$3.99

$

In Stock, only 1 left!

0

48

Exmark 109-3117

63-8300
(Superseded to 63-8300)

$31.99

$

Usually ships in 3-6 days

0
