LXS25KD605 - Exmark 60" Lazer Z XS Diesel Zero-Turn Mower, 25hp Kubota (SN: 720000 - 789999) (2008) Hood And Panel Group Parts Diagram

60" Lazer Z XS Diesel Zero-Turn Mower, 25hp Kubota

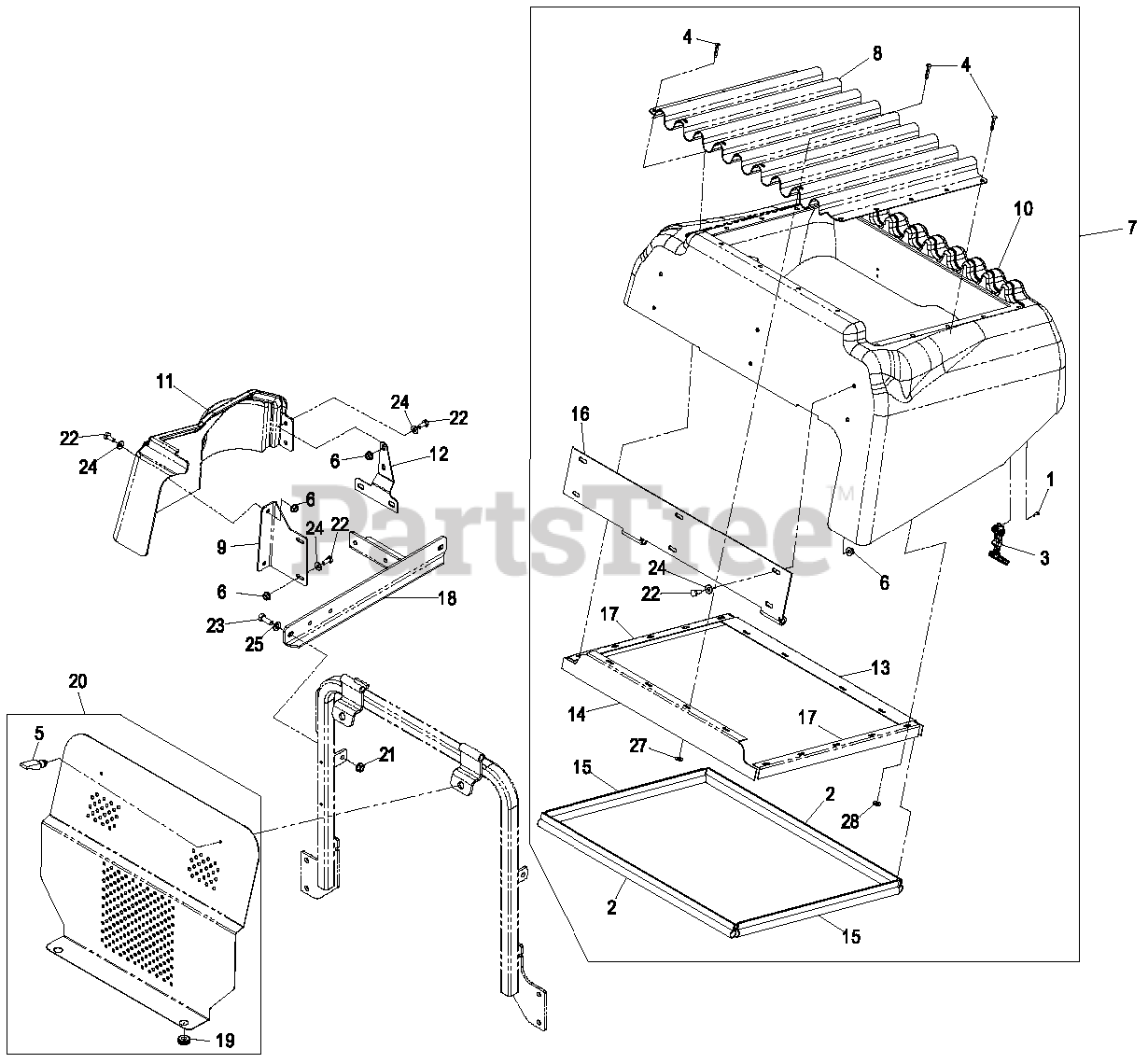

Hood And Panel Group Parts Diagram

  • Title

1

Exmark 923786

3269-24
(Superseded to 3269-24)

$2.99

$

In Stock, Qty 12

0

2

Exmark 1-643187

SEAL-TRIM

$22.99

$

Usually ships in 3-6 days

0

3

Exmark 1-643188

LATCH-RUBBER

$22.99

$

In Stock, only 2 left!

0

4

Exmark 1-803072

RIVET

$2.99

$

Usually ships in 3-6 days

0

5

Exmark 74-5950

LATCH-SWELL

$22.99

$

In Stock, Qty 10

0

6

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

7

Exmark 103-9200

116-6394
(Superseded to 116-6394)

Note: Hood assembly comes with back logo decal, side decals need to be ordered separately.

$1061.99

$

Usually ships in 3-6 days

0

8

Exmark 103-9201-03

SCREEN, RADIATOR

$251.99

$

Usually ships in 3-6 days

0

9

Exmark 103-9206-03

BRACKET,FRONT COVER

$25.99

$

Usually ships in 3-6 days

0

10

Exmark 103-9220

116-6394
(Superseded to 116-6394)

$1061.99

$

Usually ships in 3-6 days

0

11

Exmark 103-9221

PANEL, SIDE

$410.99

$

Usually ships in 3-6 days

0

12

Exmark 103-9222-03

BRACKET,REAR COVER

$26.99

$

Usually ships in 3-6 days

0

13

Exmark 103-9223-03

MOUNT,SEAL REAR

$

$

Not available

14

Exmark 103-9224-03

MOUNT,SEAL FRONT

$

$

Not available

15

Exmark 103-9225

SEAL,TRIM 17.1

$18.99

$

Usually ships in 3-6 days

0

16

Exmark 103-9226-03

WLD, HINGE

$94.99

$

Usually ships in 3-6 days

0

17

Exmark 103-9228-03

MOUNT,SEAL SIDE

$

$

Not available

18

Exmark 109-3257

ASM,AIR CLNR BRKT W/DECAL

$142.99

$

Usually ships in 3-6 days

0

19

Exmark 109-0023

GROMMET

$5.99

$

In Stock, Qty 11

0

20

Exmark 116-0136

ASM,PANEL W/ DECALS LXS L

$178.99

$

Usually ships in 3-6 days

0

21

Exmark 32128-33

NUT-HF

$0.99

$

In Stock, Qty 6

0

22

Exmark 321-3

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

23

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

24

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

25

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

26

Exmark 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0

27

Exmark 1-303435

WASHER-SPRING

$1.49

$

In Stock, Qty 14

0

28

Exmark 3256-14

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0
