LXS25KD605 - Exmark 60" Lazer Z XS Diesel Zero-Turn Mower, 25hp Kubota (SN: 720000 - 789999) (2008) Cooling Group Parts Diagram

60" Lazer Z XS Diesel Zero-Turn Mower, 25hp Kubota

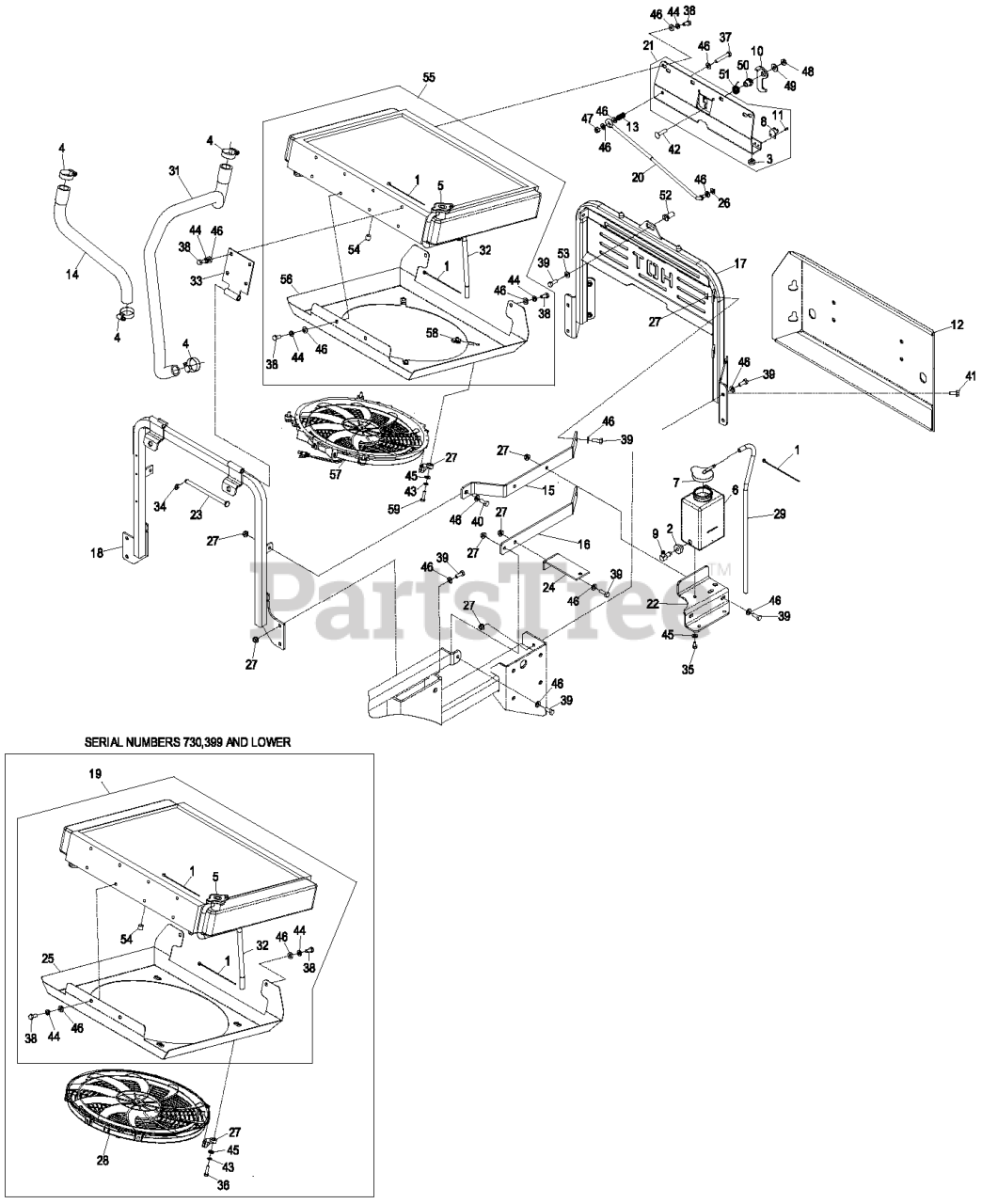

Cooling Group Parts Diagram

  • Title
1

Exmark 1-303287

TIE-CABLE

$1.49

$

Usually ships in 3-6 days

0

2

Exmark 1-513645

46-6560
(Superseded to 46-6560)

$5.99

$

In Stock, Qty 20+

0

3

$6.49

$

In Stock, Qty 9

0

4

Exmark 1-633989

2412-34
(Superseded to 2412-34)

$2.49

$

In Stock, only 3 left!

0

5

Exmark 1-643161

CAP-RADIATOR

$84.99

$

In Stock, only 3 left!

0

6

Exmark 1-643163

TANK-OVERFLOW

$96.99

$

Usually ships in 3-6 days

0

7

Exmark 1-643164

CAP-TANK, OVERFLOW

$19.99

$

In Stock, only 3 left!

0

8

Exmark 1-643189

249-40
(Superseded to 249-40)

$11.99

$

Usually ships in 3-6 days

0

9

Exmark 1-643259

46-6550
(Superseded to 46-6550)

$41.99

$

Usually ships in 3-6 days

0

10

Exmark 109-8431

HOOK,LATCH

$17.99

$

Usually ships in 3-6 days

0

11

Exmark 923786

3269-24
(Superseded to 3269-24)

$2.99

$

In Stock, Qty 12

0

12

Exmark 103-1479-03

WLD,REAR BUMPER

$229.99

$

Usually ships in 3-6 days

0

13

Exmark 103-6643

SPRING,LOCK PIN

$2.99

$

Usually ships in 3-6 days

0

14

Exmark 103-7532

HOSE,RADIATOR UPPER D902(

$124.99

$

Usually ships in 3-6 days

0

15

$346.99

$

Usually ships in 3-6 days

0

16

Exmark 103-7579-03

RIB, BOTTOM

$332.99

$

Usually ships in 3-6 days

0

17

Exmark 109-8546-03

WLD,REAR GUARD

$650.99

$

Usually ships in 3-6 days

0

18

Exmark 109-2804

ASM, RAD. MOUNT W/ DECALS

$638.99

$

Usually ships in 3-6 days

0

19

Exmark 109-7547

ASM,RADIATOR

Note: Radiator assembly does not include items, #1 or #32.

$1814.99

$

Usually ships in 3-6 days

0

20

Exmark 103-9207

ROD,PROP

$41.99

$

Usually ships in 3-6 days

0

21

Exmark 109-8539

ASM,LATCH PLATE S.O.

$217.99

$

Usually ships in 3-6 days

0

22

Exmark 103-9214-03

BRACKET,BOTTLE

$

$

Not available

$19.99

$

In Stock, only 1 left!

0

24

Exmark 109-0089-03

BRACKET, HYDRAULIC TANK

$36.99

$

Usually ships in 3-6 days

0

25

Exmark 109-0796-03

SHROUD,FAN

$

$

Not available

26

Exmark 109-0917

32112-11
(Superseded to 32112-11)

$1.49

$

In Stock, only 3 left!

0

27

$1.49

$

In Stock, Qty 20+

0

28

Exmark 109-8541

KIT,16' FAN SERVICE

Note: Includes item #30.

$536.99

$

Usually ships in 3-6 days

0

29

$12.99

$

In Stock, only 1 left!

0

30

Exmark 109-2950

MOUNT,FAN

$5.99

$

Usually ships in 3-6 days

0

31

Exmark 109-3142

HOSE,RADIATOR LOWER D902

$154.99

$

Usually ships in 3-6 days

0

32

Exmark 109-3143

HOSE,OVERFLOW

$17.99

$

Usually ships in 3-6 days

0

33

Exmark 109-3179-03

WLD,HINGE PLATE

$47.99

$

Usually ships in 3-6 days

0

34

$1.49

$

In Stock, Qty 20+

0

35

Exmark 321-2

SCREW-HH

$3.49

$

In Stock, only 3 left!

0

36

Exmark 33113-025

SCREW-HH

$2.49

$

Usually ships in 3-6 days

0

37

Exmark 322-10

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

38

Exmark 322-3

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

39

Exmark 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

40

Exmark 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

41

Exmark 3234-47

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

42

Exmark 112-6950

SCREW-CARR

$0.99

$

In Stock, Qty 10

0

43

Exmark 325-33

SCREW-HH

$14.99

$

In Stock, only 4 left!

0

44

Exmark 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

45

Exmark 3256-22

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

46

Exmark 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

47

Exmark 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

48

$3.49

$

In Stock, Qty 12

0

49

Exmark 3256-3

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

50

Exmark 107-0075

BUSHING-LATCH, SEAT

$5.49

$

Usually ships in 3-6 days

0

51

Exmark 109-8430

SPRING,LATCH

$8.49

$

Usually ships in 3-6 days

0

52

Exmark 109-8432

PIN,LATCH

$30.99

$

Usually ships in 3-6 days

0

53

Exmark 1-303334

WASHER-SPRING

$2.99

$

In Stock, only 3 left!

0

54

Exmark 99-8551

PLUG-PIPE

$5.49

$

Usually ships in 3-6 days

0

55

Exmark 109-8733

116-6464
(Superseded to 116-6464)

Note: Radiator assembly does not include items, #1 or #32.

$1814.99

$

Usually ships in 3-6 days

0

56

Exmark 109-8732-03

SHROUD,FAN

$844.99

$

Usually ships in 3-6 days

0

57

Exmark 109-9195

116-6427
(Superseded to 116-6427)

$834.99

$

Usually ships in 3-6 days

0

58

Exmark 10706-9

Nut, Retainer Panel

$2.99

$

In Stock, Qty 20+

0

59

Exmark 321-6

SCREW-HH

$0.99

$

In Stock, Qty 20+

0
