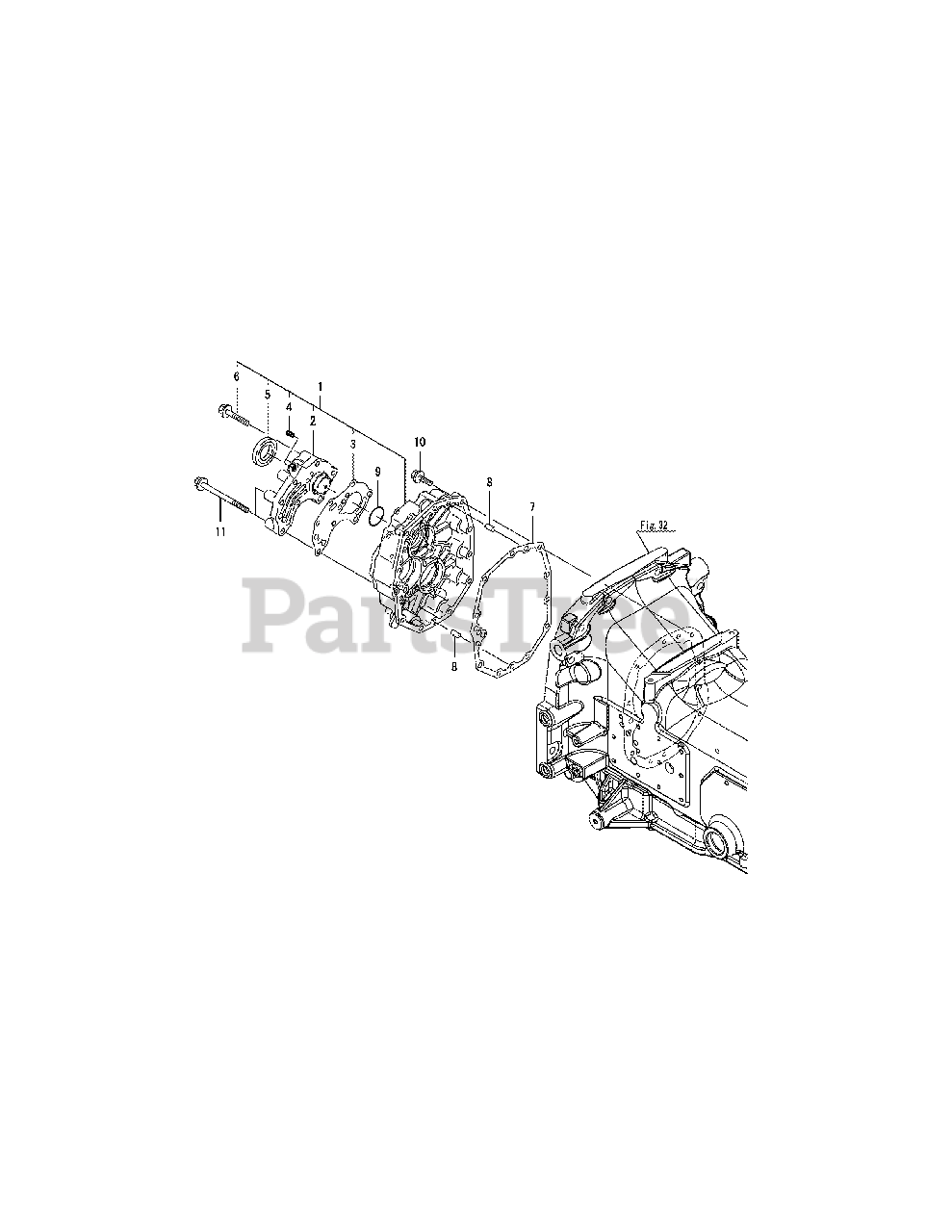

Lx490 (54AIE9W2727) - Cub Cadet Yanmar Lx Series Compact Tractor Front Cover Parts Diagram

Lx Series Compact Tractor

Front Cover Parts Diagram

  • Title
1

Cub Cadet CY-1A8275-24700

COVER ASSY, FRONT

$

$

Not available

2

$

$

Not available

3

$

$

Not available

4

Cub Cadet CY-23871-010000

PLUG PT1/8,SCREW

$

$

Not available

5

$

$

Not available

6

Cub Cadet CY-26106-080502

BOLT M 8X 50 PLATED

$

$

Not available

7

Cub Cadet CY-198212-25720

GASKET, FRONT COVER

$

$

Not available

8

Cub Cadet CY-22312-080180

PARALLEL PIN, M8X16

$

$

Not available

9

Cub Cadet CY-24341-000350

O-RING 1A S-35.0

$

$

Not available

10

Cub Cadet CY-26106-080352

BOLT M 8X 35 PLATED

$

$

Not available

11

Cub Cadet CY-26106-081102

BOLT M 8X110 PLATED

$

$

Not available

Fig.32

Refers to Clutch Housing

$

$

Not available
