Lx490 (54AHE9W2727) - Cub Cadet Yanmar Lx Series Compact Tractor Lx490 Suction Manifold Parts Diagram

Lx Series Compact Tractor

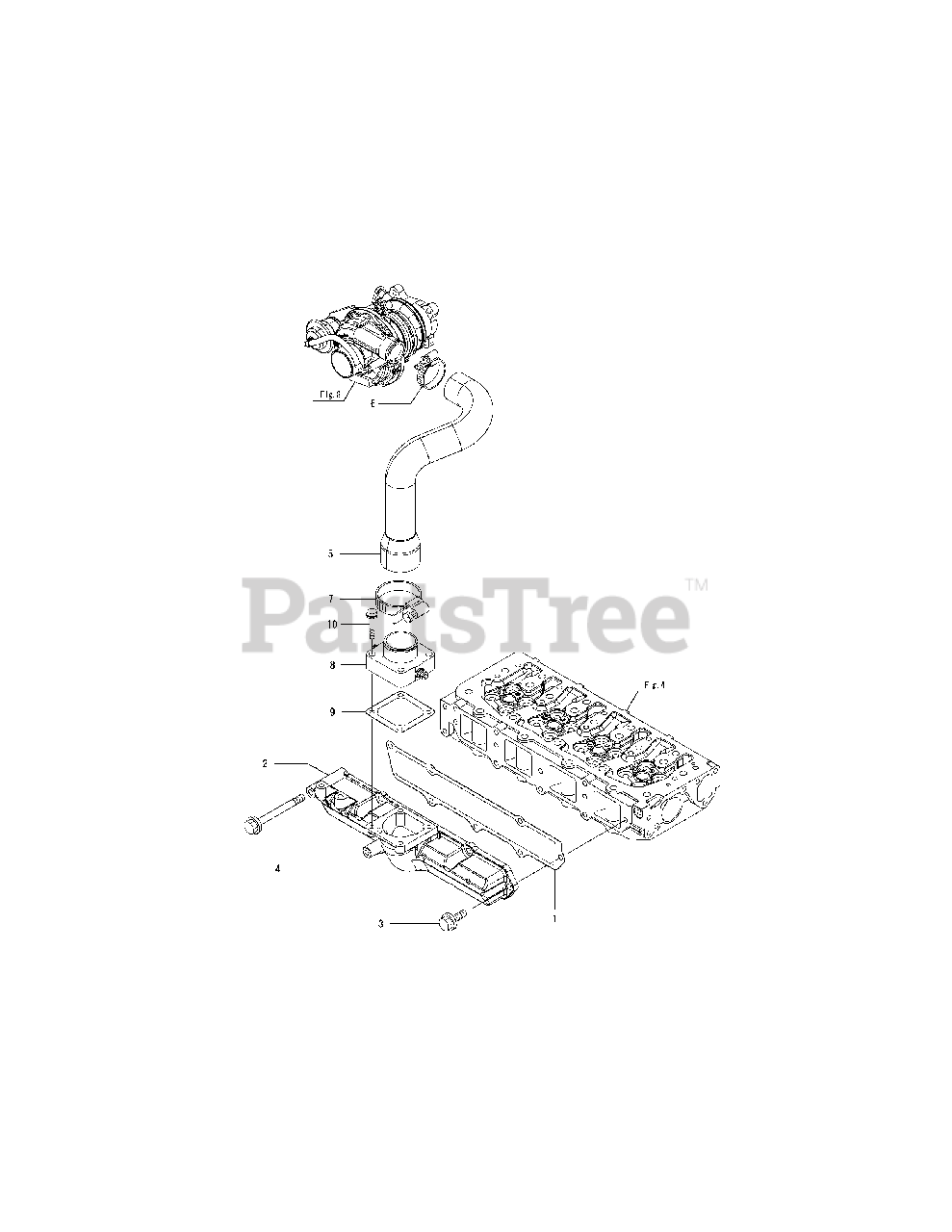

Lx490 Suction Manifold Parts Diagram

  • Title

1

Cub Cadet CY-129508-12110

GASKET, MANIFOLD

$

$

Not available

2

Cub Cadet CY-129508-12120

MANIFOLD, AIR INTAKE

$

$

Not available

3

Cub Cadet CY-26106-080202

BOLT M 8X 20 PLATED

$

$

Not available

4

Cub Cadet CY-26106-080802

BOLT M 8X 80 PLATED

$

$

Not available

5

Cub Cadet CY-129558-12090

HOSE,INTAKE

$

$

Not available

6

Cub Cadet CY-23000-048000

CLAMP 48

$

$

Not available

7

Cub Cadet CY-23000-060000

CLAMP 60

$

$

Not available

8

Cub Cadet CY-129120-77502

HEATER, AIR

$

$

Not available

9

Cub Cadet CY-129150-77511

GASKET, AIR HEATER

$

$

Not available

10

Cub Cadet CY-26106-080352

BOLT M 8X 35 PLATED

$

$

Not available

Fig.4

Refers to Lx490 Cylinder Head & Bonnet Page

$

$

Not available

Fig.8

Refers to Lx490 Turbine Page

$

$

Not available
