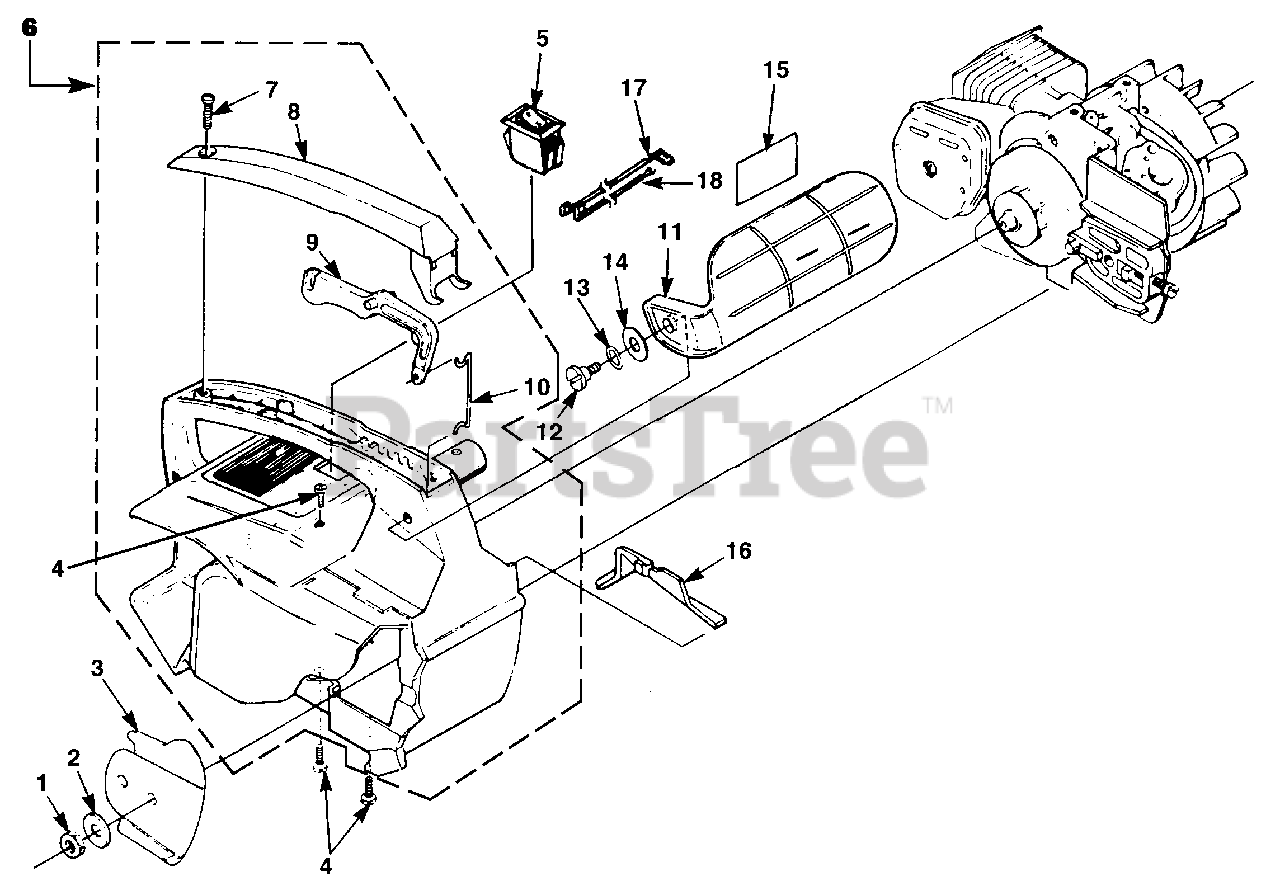

LX 30 (UT-10705-E) - Homelite Bandit Chainsaw Engine Housing External Parts Diagram

Bandit Chainsaw

Engine Housing External Parts Diagram

  • Title

1

Homelite 810652

NUT - Guide Bar
(Superseded to UP03514)

Note: (Torque Specs: Hand Tight)

$5.49

$

In Stock, only 1 left!

0

2

Homelite 69309A

WASHER - Flat

$

$

Not available

3

Homelite 04440

PLATE - Guide Bar

$9.99

$

Usually ships in 3-7 days

0

4

Homelite 82538

SCREW - Pan Hd. (10-24 X 3/4")

Note: (Torque Specs: 55-65 In/Lbs, 6.3-7.5 Nm)

$1.99

$

Usually ships in 3-7 days

0

5

Homelite 02497

SWITCH - Rocker
(Superseded to 985703001)

$

$

Not available

6

Homelite A07551

ENGINE HOUSING KIT

$

$

Not available

7

Homelite 82312

SCREW - Pan Hd. (#10 X 5/8")

Note: (Torque Specs: 15-20 In/Lbs, 1.7-2.3 Nm)

$

$

Not available

8

Homelite 69872A

COVER - Handle

$

$

Currently unavailable

9

Homelite 69874D

TRIGGER

$

$

Currently unavailable

10

Homelite 00138

ROD - Throttle

$

$

Not available

11

Homelite A70796C

HANDGUARD
(Superseded to UP06581)

$

$

Currently unavailable

12

Homelite 95714

SCREW - Shoulder (#10 X .560)
(Superseded to UP06845)

Note: (Torque Specs: 40-50 In/Lbs, 4.6-5.7 Nm)

$5.99

$

Usually ships in 3-7 days

0

13

Homelite 95694

WASHER - Curved Spring

$

$

Not available

14

Homelite 96102

WASHER - Flat

$

$

Not available

15

Homelite 02661

DECAL - Handguard

$

$

Not available

16

Homelite 69263

COVER - Air Filter

$

$

Not available

17

Homelite A02484

LEAD - Ring Term.

$

$

Not available

18

Homelite A02482

LEAD - Double Flag
(Superseded to UP07635)

$4.99

$

Usually ships in 3-7 days

0
