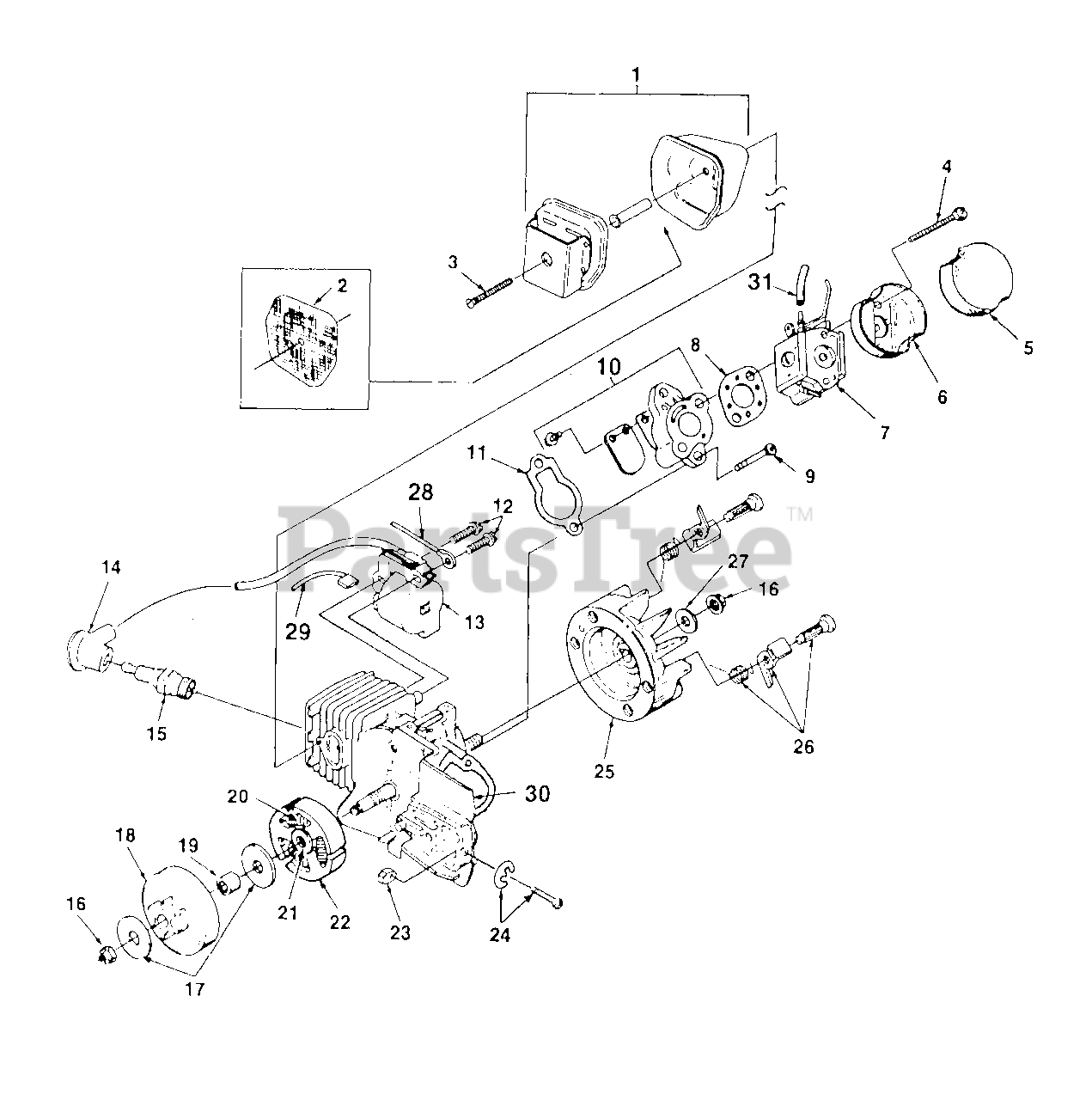

LX 30 (UT-10705-D) - Homelite Bandit Chainsaw Intake, Clutch, Muffler And Ignition Parts Diagram

Bandit Chainsaw

Intake, Clutch, Muffler And Ignition Parts Diagram

  • Title
1

Homelite A94051C

MUFFLER-Complete
(Superseded to A06374)

$

$

Currently unavailable

2

Homelite 93991A

SCREEN-Spark Arrestor
(Superseded to A00072)

$

$

Currently unavailable

3

Homelite 93460

SCREW-Sems (10-24 X 1 7/8")

$

$

Not available

4

Homelite 00167

SCREW-Thd. Form. (#8 X 1.65)

$

$

Not available

5

Homelite 69141

FILTER-Air
(Superseded to D92702B)

$

$

Not available

6

Homelite 69148

CUP-Filter

$

$

Not available

7

Homelite A02138A

CARBURETOR

Note: (Walbro WTA-20A)

$

$

Not available

8

Homelite 02488

GASKET-Carburetor
(Superseded to UP05880)

$4.99

$

Usually ships in 3-7 days

0

9

Homelite 82537

SCREW-Plastite (#10 X 7/8")

$1.99

$

Usually ships in 3-7 days

0

10

Homelite A02153

HEAT DAM & REED

$

$

Not available

11

Homelite 02453

GASKET-Heat Dam

$5.49

$

Usually ships in 3-7 days

0

12

Homelite 82540

SCREW-Taptite (8-32 X 1")

$2.49

$

Usually ships in 3-7 days

0

13

Homelite 94711CS

MODULE-ignition

Note: Includes Ref. #14.

$

$

Not available

14

Homelite A33055

TERMINAL

$

$

Not available

15

Homelite 96169S

SPARK PLUG
(Superseded to UP03883)

$5.49

$

In Stock, only 3 left!

0

Homelite 79252

SPARK PLUG (Int'l)
(Superseded to UP03883)

Note: (UT-10716-B)

$5.49

$

In Stock, only 3 left!

0

16

Homelite 81229

NUT-(5/16-24)
(Superseded to 81229A)

$4.99

$

Usually ships in 3-7 days

0

17

Homelite 95299

WASHER-Thrust

$

$

Not available

18

Homelite A95653C

SPROCKET & DRUM
(Superseded to A95653E)

Note: Includes Ref. #19.

$

$

Not available

19

Homelite 70277

BEARING
(Superseded to UP05641)

$12.99

$

Usually ships in 3-7 days

0

20

Homelite 03961

SPRING-Clutch

$

$

Not available

21

Homelite 79221

SPIDER-Clutch

$30.99

$

Usually ships in 3-7 days

0

22

Homelite 79222A

SHOE-Clutch

$

$

Currently unavailable

23

Homelite 692542

PIN-Adjusting

$26.99

$

In Stock, only 1 left!

0

24

Homelite A00440

SCREW & E RING KIT

$

$

Not available

25

Homelite A95007

ROTOR & STARTER PAWLS
(Superseded to UP04242)

Note: Includes Ref. #26.

$

$

Not available

26

Homelite A70285E

STARTER PAWL KIT

$101.99

$

Usually ships in 3-7 days

0

27

Homelite 84065

WASHER-(5/16")
(Superseded to UP04241)

$

$

Not available

28

Homelite A02484

LEAD-Ring Term.

$

$

Not available

29

Homelite A02482

LEAD-Double Flag
(Superseded to UP07635)

$4.99

$

Usually ships in 3-7 days

0

30

Homelite A00132

SHORT BLOCK

$

$

Currently unavailable

31

Homelite 7031009

TUBING- Rubber (2 1/4")
(Superseded to 0745411)

$

$

Not available
