LX 30 (UT-10705-A) - Homelite Bandit Chainsaw Housing & Handles Parts Diagram

Bandit Chainsaw

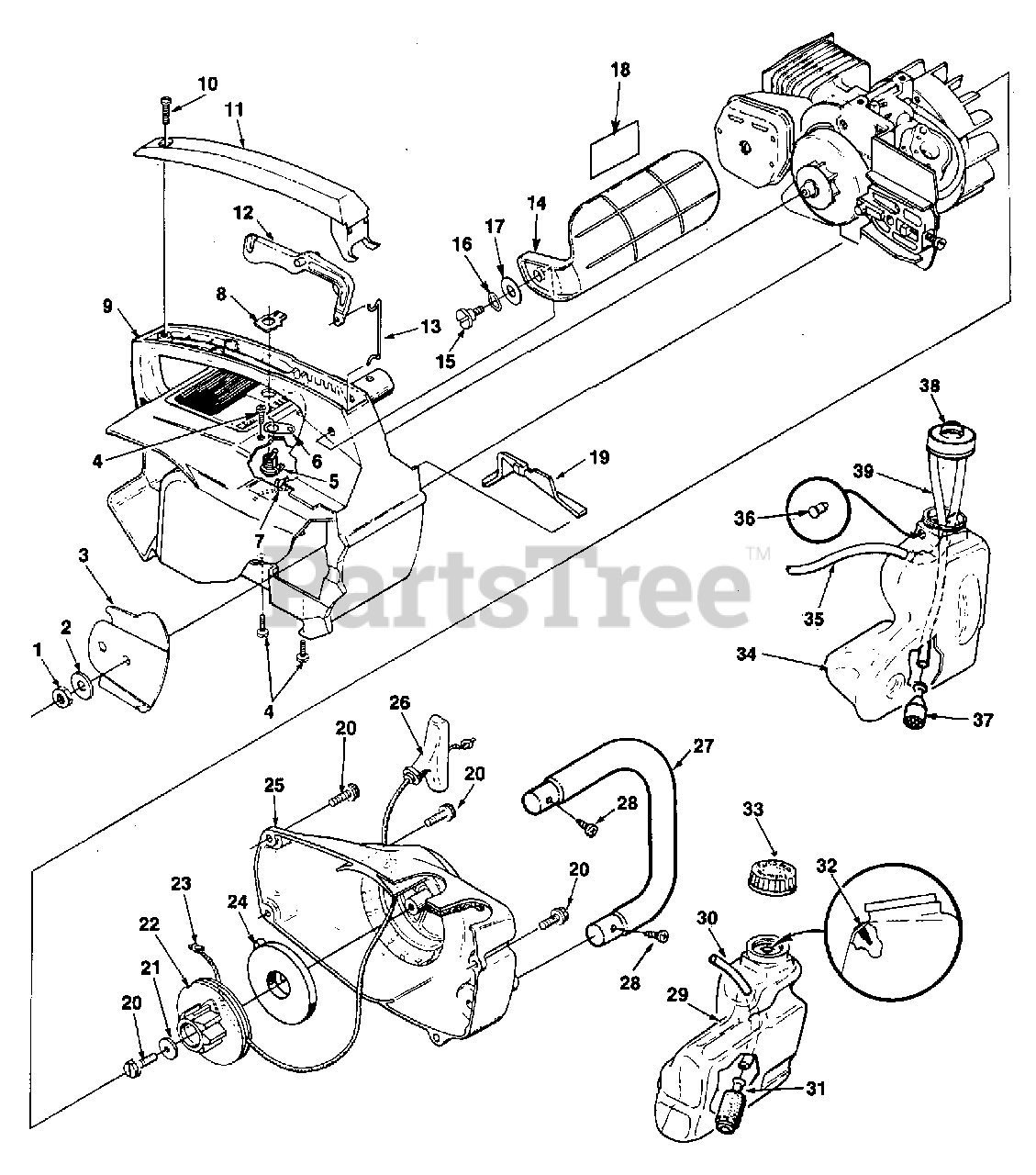

Housing & Handles Parts Diagram

  • Title

1

Homelite 810652

NUT- Guide Bar
(Superseded to UP03514)

$5.49

$

In Stock, only 1 left!

0

2

Homelite 69309A

WASHER- Flat

$

$

Not available

3

Homelite 69360A

PLATE- Guide Bar

$

$

Currently unavailable

4

Homelite 82538

SCREW- Pan hd. (10-24 x 3/4")

$1.99

$

Usually ships in 3-7 days

0

5

Homelite A63938

SWITCH- Toggle
(Superseded to UP06871)

$

$

Not available

6

Homelite 96417

STRAP- Ground

$

$

Not available

7

Homelite A94721

GROUND LEAD

$

$

Currently unavailable

8

Homelite 70834

PLATE-"On-Off"

$

$

Not available

9

Homelite A01517

HOUSING- Engine

$

$

Currently unavailable

10

Homelite 82312

SCREW- Pan hd. (#10 x 5/8")

$

$

Not available

11

Homelite 69872A

COVER- Handle

$

$

Currently unavailable

12

Homelite 69874C

TRIGGER
(Superseded to 69874D)

$

$

Currently unavailable

13

Homelite 69255C

ROD- Throttle (UT-10705)

$

$

Currently unavailable

Homelite 00138

ROD- Throttle (UT-10705-A)

$

$

Not available

14

Homelite A70796C

HAND GUARD
(Superseded to UP06581)

$

$

Currently unavailable

15

Homelite 95714

SCREW- Shoulder (#10 x .560)
(Superseded to UP06845)

$5.99

$

Usually ships in 3-7 days

0

16

Homelite 95694

WASHER- Curved spring

$

$

Not available

17

Homelite 96102

WASHER- Flat

$

$

Not available

18

Homelite 02661

DECAL- Handguard

$

$

Not available

19

Homelite 69263

COVER- Air filter

$

$

Not available

20

Homelite 82563

SCREW- Thd. form (10-14 x 3/4")

$1.99

$

In Stock, Qty 6

0

21

Homelite 94062

WASHER- Retaining

$

$

Not available

22

Homelite 97768A

PULLEY- Starter

$

$

Currently unavailable

23

Homelite 9789901

ROPE- Starter
(Superseded to 900849001)

$1.99

$

In Stock, only 3 left!

0

24

Homelite A97908

SPRING- Rewind
(Superseded to 300982011)

$

$

Not available

25

Homelite A01573

HOUSING- Rewind Starter w/decals

$

$

Currently unavailable

26

Homelite 02264

GRIP- Starter
(Superseded to UP03832)

$

$

Not available

27

Homelite 94508A

HANDLE BAR

$

$

Currently unavailable

28

Homelite 94065

SCREW- Pan hd. (10-16 x 3/4")

$

$

Not available

29

Homelite A00174

FUEL TANK

$

$

Currently unavailable

30

Homelite 7031028

TUBING- Rubber (7")
(Superseded to UP04694)

$

$

Not available

31

Homelite 49422

FILTER- Fuel
(Superseded to PS03380)

$

$

Not available

32

Homelite 98819

VALVE- Duck bill

$

$

Not available

33

Homelite A97359A

FUEL CAP
(Superseded to DA92701C)

$

$

Currently unavailable

34

Homelite A00173

OIL TANK
(Superseded to A07552)

$

$

Currently unavailable

35

Homelite 7031040

TUBING- Rubber (10")

$

$

Currently unavailable

36

Homelite 98819

VALVE- Duck bill

$

$

Not available

37

Homelite A68593

OIL FILTER

$

$

Not available

38

Homelite A00133

OILER & CAP

$

$

Currently unavailable

39

Homelite 7031028

TUBING- Rubber (7")
(Superseded to UP04694)

$

$

Not available
