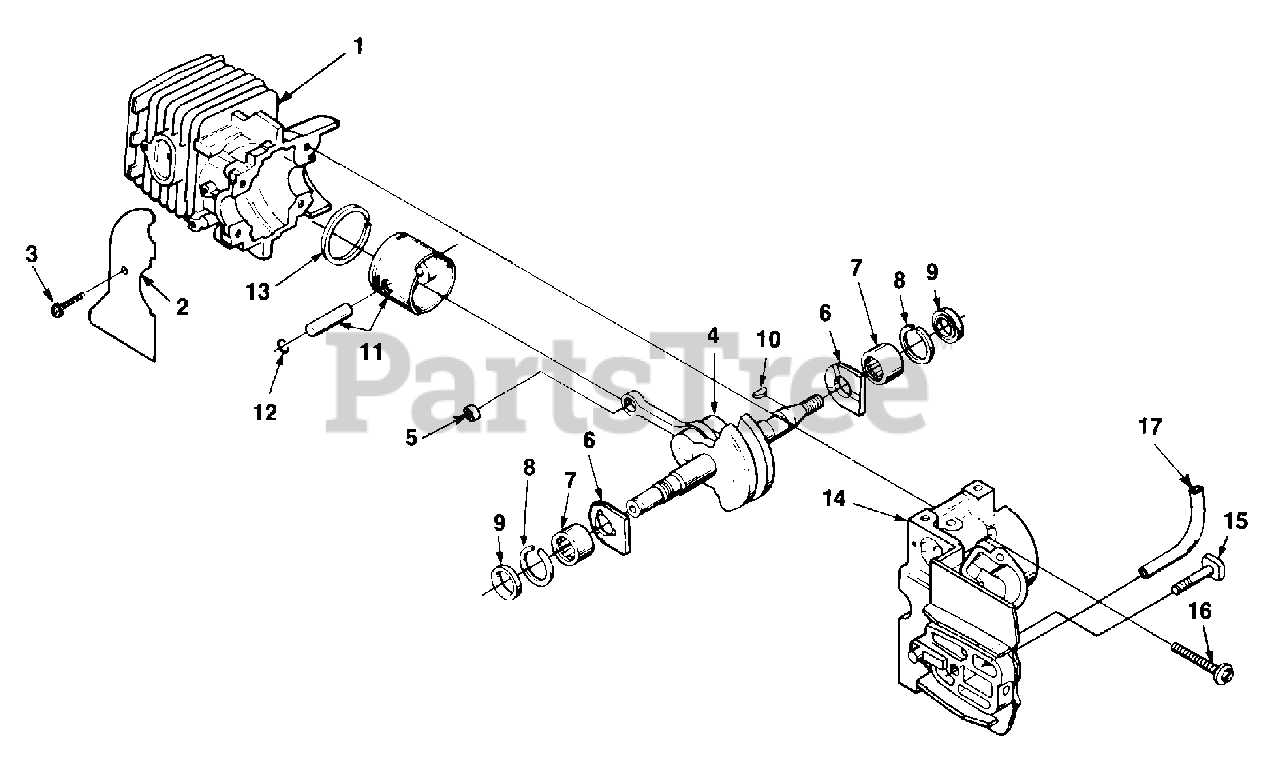

LX 30 (UT-10705-A) - Homelite Bandit Chainsaw Engine Internals Parts Diagram

Bandit Chainsaw

Engine Internals Parts Diagram

  • Title
1

Homelite 024855

CYLINDER

$

$

Not available

2

Homelite 02639

SHIELD- Sawdust

$

$

Not available

3

Homelite 93932

SCREW- Tapping (#6-32 x 5/16")

$

$

Not available

4

Homelite A01574

CRANKSHAFT

$

$

Currently unavailable

5

Homelite 02035

BEARING

$

$

Not available

6

Homelite 02464

WASHER- Thrust

$

$

Not available

7

Homelite 12530

BEARING- Needle

$

$

Not available

8

Homelite 69407

SPACER
(Superseded to 09108)

$

$

Not available

9

Homelite 94638

SEAL- Shaft
(Superseded to 09108)

$

$

Not available

10

Homelite 69250

KEY- Woodruff

$

$

Not available

11

Homelite A98967A

PISTON ASSEMBLY
(Superseded to UP07037)

$

$

Not available

12

Homelite 98096

RING- Retaining

$

$

Not available

13

Homelite 93165

RING- Piston

$

$

Not available

14

Homelite A03060A

CRANKCASE

$

$

Currently unavailable

15

Homelite 69195

BOLT- Guide bar

$8.49

$

In Stock, only 1 left!

0

16

Homelite 82567

SCREW- Pan hd. (10-24 x 1 1/8")

$

$

Not available

17

Homelite 7031040

TUBING- Rubber (10")

$

$

Currently unavailable
