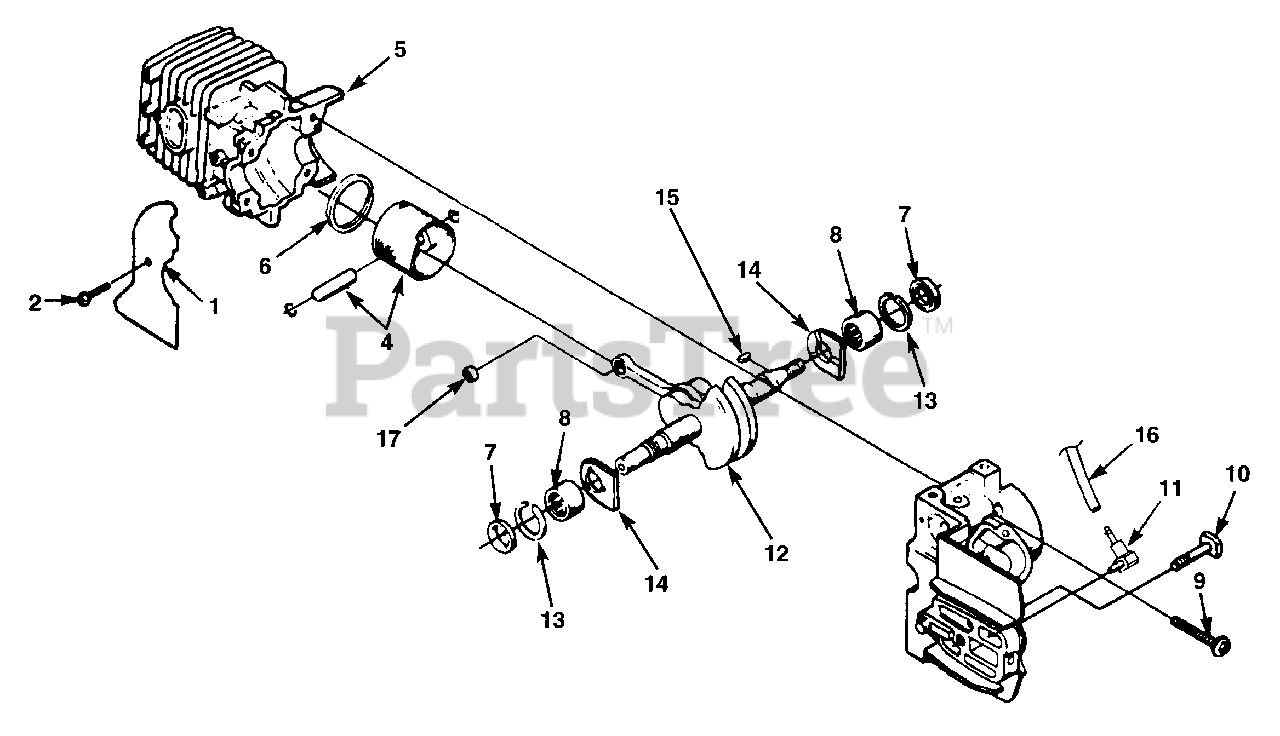

LX 30 (UT-10705-3B) - Homelite Bandit Chainsaw Engine Internal Parts Diagram

Bandit Chainsaw

Engine Internal Parts Diagram

  • Title

1

Homelite 02639

SAW DUST SHIELD

$

$

Not available

2

Homelite 93932

SCREW- Tapping (06-32 x 5/16")

Note: (Torque Specs: 18-24 In/Lbs, 2.0-2.8 Nm)

$

$

Not available

?3

Homelite A001321A

SHORT BLOCK

$

$

Not available

Homelite UP00068

SHORT BLOCK
(Superseded to A001321A)

Note: (After S/N HR0010001)

$

$

Not available

4

Homelite A04330

PISTON & PIN ASSY.

$

$

Not available

5

Homelite 024855

CYLINDER

$

$

Not available

Homelite UP00069

CYLINDER
(Superseded to 024855)

Note: (After S/N HR0010001)

$

$

Not available

6

Homelite 93165

RING - Piston

$

$

Not available

7

Homelite 07025

SEAL - Shaft
(Superseded to 09108)

$

$

Not available

8

Homelite 12530

BEARING - Needle

$

$

Not available

9

Homelite 82567

SCREW - Torx Pan Hd. (10-24 x 1 1/8")

Note: (Torque Specs: 65-75 In/Lbs, 7.5-8.6 Nm)

$

$

Not available

10

Homelite 69195

BOLT - Guide Bar

$8.49

$

In Stock, only 1 left!

0

11

Homelite 07510

VALVE - Check

$

$

Not available

12

Homelite A97611A

CRANKSHAFT - Rod and Bearing
(Superseded to A04602)

$

$

Not available

13

Homelite 69407

SPACER
(Superseded to 09108)

$

$

Not available

14

Homelite 03962

WASHER- Thrust

$

$

Not available

15

Homelite 69250

KEY-Woodruff

$

$

Not available

16

Homelite 0745432

TUBING - Rubber (Oil Line) (8")

$

$

Not available

17

Homelite 02035

BEARING - Wrist Pin

$

$

Not available
