LW 307T-2 (80052) - Snapper 19" Walk-Behind Mower, 3hp Handles, Blade Control Parts Diagram

19" Walk-Behind Mower, 3hp

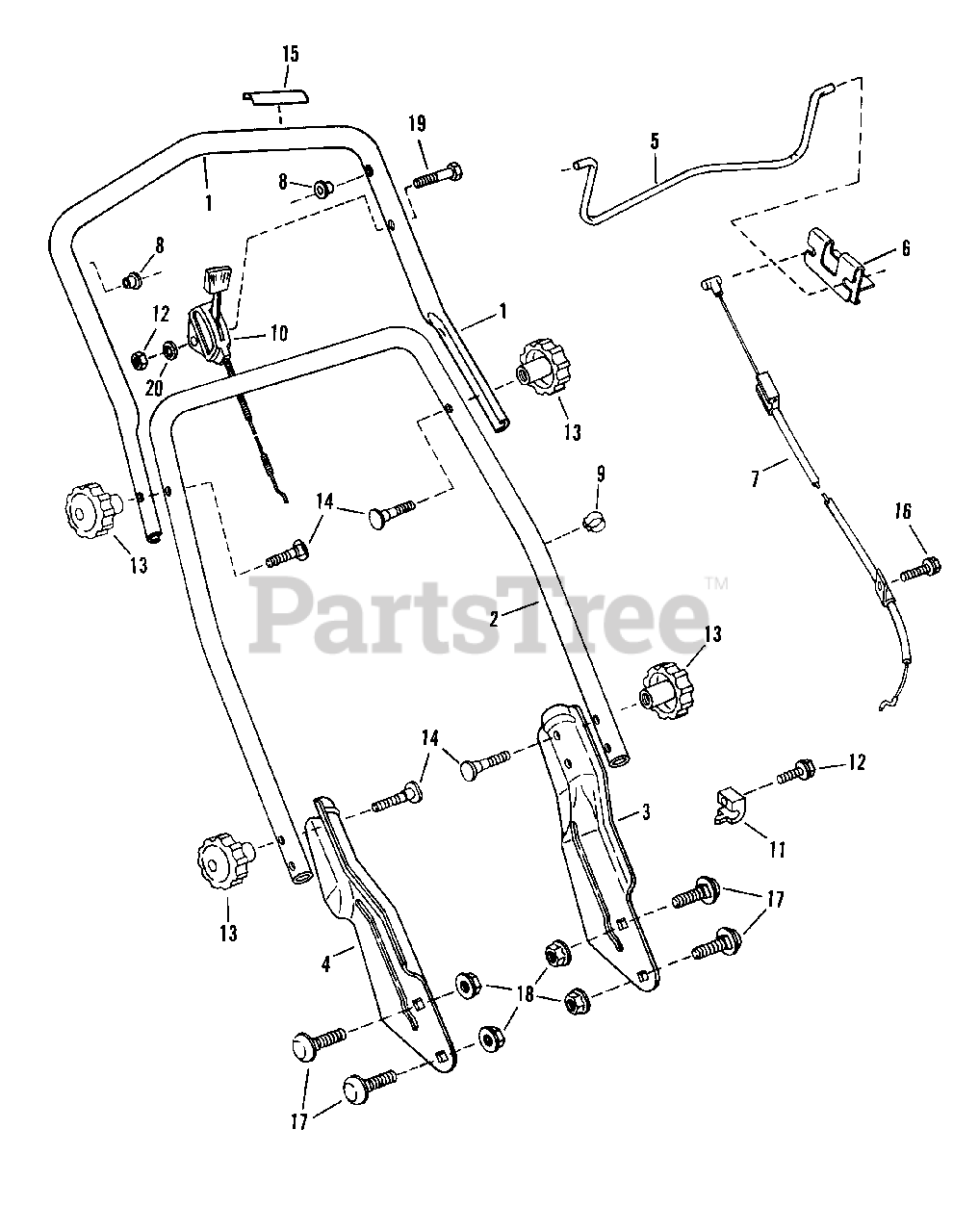

Handles, Blade Control Parts Diagram

  • Title

1

Snapper 7036353

HANDLE, Upper
(Superseded to 7036353YP)

Note: (Tecumseh)

$51.99

$

Usually ships in 2-12 days

0

Snapper 7036354

HANDLE, Upper
(Superseded to 7036354YP)

Note: (Briggs)

$42.99

$

Usually ships in 2-12 days

0

2

Snapper 7036350

HANDLE, Middle

$

$

Not available

3

Snapper 7046502

HANDLE, Lower Left Hand
(Superseded to 7046502YP)

Note: Was 38467

$56.99

$

In Stock, only 1 left!

0

4

Snapper 7035342

HANDLE, Lower Right Hand
(Superseded to 7035342YP)

Note: Was 38466

$43.99

$

In Stock, only 1 left!

0

5

Snapper 7017072

CONTROL, Blade
(Superseded to 7047011YP)

$

$

Not available

6

Snapper 7033904

CLIP, Blade Control
(Superseded to 7034872YP)

Note: Was 32829

$5.99

$

In Stock, Qty 5

0

7

Snapper 7023820

CABLE, Blade Control
(Superseded to 7023820YP)

Note: (Briggs) ('90 Models)

$18.99

$

Usually ships in 2-12 days

0

Snapper 7016121

CABLE, Blade Control

Note: (Tecumseh) ('90 Models)

$

$

Not available

Snapper 7016707

CABLE, Blade Control
(Superseded to 7016707YP)

Note: (Briggs 3.5 HP) ('91 Models & Later)

$16.99

$

In Stock, only 1 left!

0

Snapper 7023765

CABLE, Blade Control
(Superseded to 7023765YP)

Note: (Briggs 3.5 HP) (European Models)

$16.99

$

Usually ships in 2-12 days

0

Snapper 7016121

CABLE, Blade Control

Note: (Tecumseh 3 HP 2-CY.) ('91 Models & Later)

$

$

Not available

Snapper 7016709

CABLE, Blade Control
(Superseded to 7016709YP)

Note: (Tecumseh 4 HP 2-CY.) ('91 Models & Later)

$20.99

$

Usually ships in 2-12 days

0

8

Snapper 7014343

BUSHING
(Superseded to 7014343YP)

$3.99

$

In Stock, Qty 20+

0

9

Snapper 7023813

CLIP, Cable/Wiring
(Superseded to 7023813SM)

$3.49

$

In Stock, Qty 20+

0

10

Snapper 7019263

CONTROL, Throttle
(Superseded to 7019263YP)

Note: ('90 Models)

$21.99

$

Usually ships in 2-12 days

0

Snapper 7017274

CONTROL, Throttle

Note: ('91 Models & Later) (Briggs)

$

$

Not available

Snapper 7019254

CONTROL, Throttle
(Superseded to 7019254YP)

Note: ('91 Models & Later) (European Briggs)

$25.99

$

Usually ships in 2-12 days

0

Snapper 7016706

CONTROL, Throttle

Note: ('91 Models & later) (Tecumseh)

$

$

Not available

11

Snapper 7023153

CLAMP, Casing
(Superseded to 7023153YP)

$3.99

$

Usually ships in 2-12 days

0

12

Snapper 7023154

SCREW, #10-32 x 5/8" Self-Tapping
(Superseded to 7023154YP)

Note: (Briggs)

$

$

Not available

Snapper 7090898

SCREW, 310-32 x 9/32" Self-Tap Sems

Note: (Tecumseh)

$

$

Not available

13

Snapper 7023735

KNOB, 5/16-18
(Superseded to 7105085YP)

$3.99

$

In Stock, Qty 20+

0

14

Snapper 7091013

SCREW, 5/16-18 x 2" Curved Head
(Superseded to 7091013SM)

$5.49

$

In Stock, only 1 left!

0

15

Snapper 7023745

DECAL, Blade Control

$

$

Currently unavailable

Snapper 7023893

DECAL, Blade Control

Note: (European Models)

$

$

Not available

16

Snapper 7090816

SCREW, #10-32 x 3/8" Hex Head Cap,

Note: (Briggs)

$

$

Not available

17

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage, Grade 5
(Superseded to 703447)

$4.49

$

In Stock, Qty 20+

0

Snapper 7090799

BOLT, 5/16-18 x 5/8" Short Neck Carriage
(Superseded to 703447)

Note: Was 91026 ('91 Models & Later)

$4.49

$

In Stock, Qty 20+

0

18

Snapper 7091601

NUT, 5/16-18 Hex Flange Lock, Grade 5
(Superseded to 703409)

Note: Was 90585

$5.49

$

In Stock, Qty 20+

0

19

Snapper 7090122

SCREW, 1/4-28 x 1-3/4" Hex Head Cap, Grade 5
(Superseded to 703878)

$3.99

$

In Stock, Qty 20+

0

20

Snapper 7090053

WASHER, 1/4" Internal Tooth Lock
(Superseded to 703462)

Note: Was 91023

$4.49

$

In Stock, Qty 7

0

21

Snapper 7090095

NUT, 1/4-28 Hex, Grade 5 or B
(Superseded to 7090095FS)

Note: Was 91024

$3.49

$

Usually ships in 2-12 days

0
