LVT-1 - Lawn-Boy Tiller (SN: 100000001 - 199999999) (1961) Model C-72 Engine Parts List Parts Diagram

Tiller

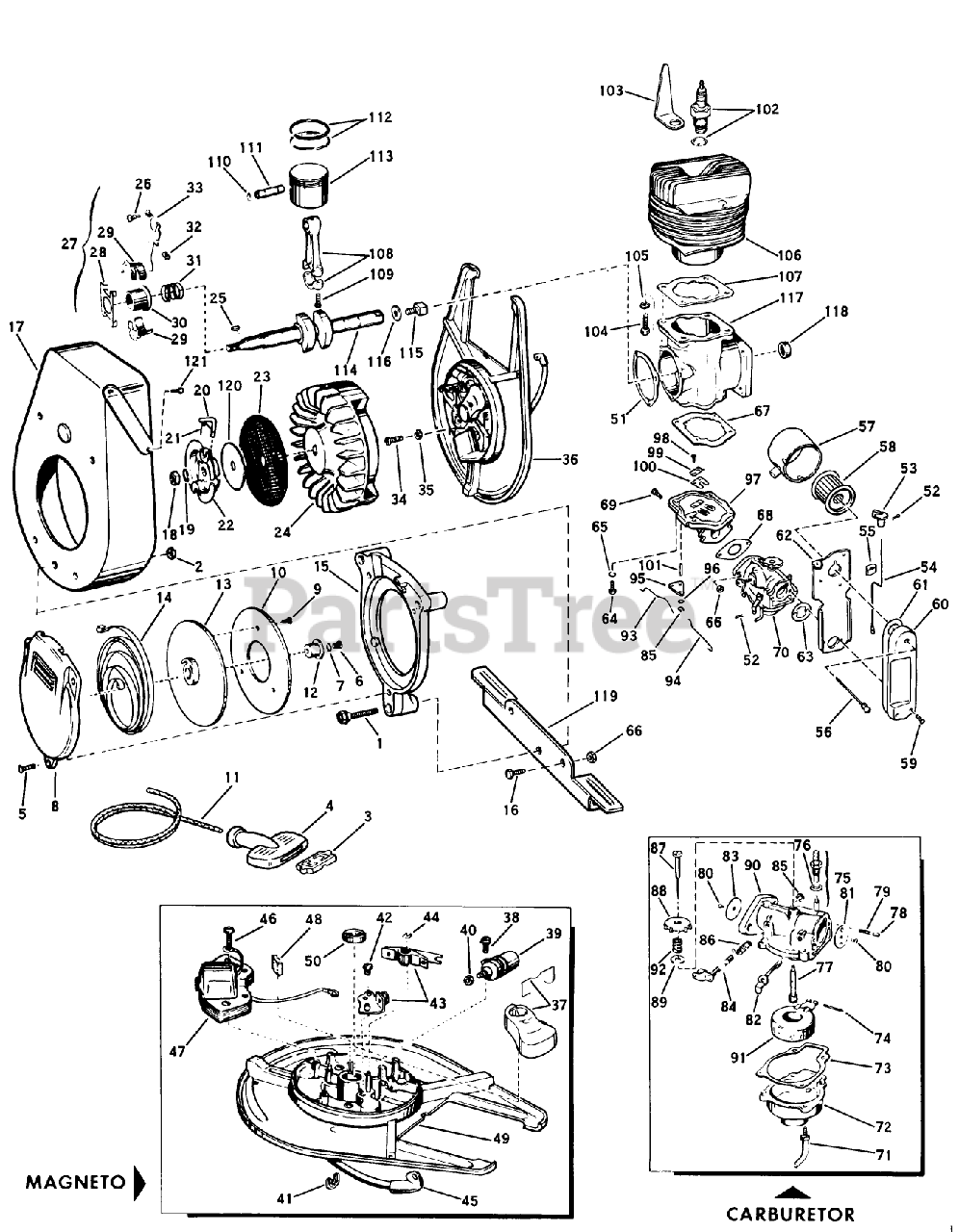

Model C-72 Engine Parts List Parts Diagram

  • Title

1

Lawn-Boy 602840

DISCONTINUED

$

$

Not available

2

Lawn-Boy 603477

DISCONTINUED

$

$

Not available

Lawn-Boy 677891

DISCONTINUED

$

$

Not available

3

Lawn-Boy 304325

DISCONTINUED

$

$

Not available

4

Lawn-Boy 602773

DISCONTINUED

$

$

Not available

5

Lawn-Boy 304381

DISCONTINUED

$

$

Not available

6

Lawn-Boy 306408

DISCONTINUED

$

$

Not available

7

Lawn-Boy 306396

Washer

$

$

Currently unavailable

8

Lawn-Boy 603802

DISCONTINUED

$

$

Not available

9

Lawn-Boy 602821

SCREW

$

$

Not available

10

Lawn-Boy 403084

Plate-Pulley

$

$

Currently unavailable

11

Lawn-Boy 603425

Rope-Starter

$

$

Currently unavailable

12

Lawn-Boy 602609

DISCONTINUED

$

$

Not available

13

Lawn-Boy 602819

DISCONTINUED

$

$

Not available

14

Lawn-Boy 602610

RECOIL SPRING

$

$

Not available

15

Lawn-Boy 402276

DISCONTINUED

$

$

Not available

16

Lawn-Boy 602848

SCREW S

$

$

Not available

17

Lawn-Boy 677890

DISCONTINUED

$

$

Not available

18

Lawn-Boy 130981

DISCONTINUED

$

$

Not available

19

Lawn-Boy 304161

DISCONTINUED

$

$

Not available

20

Lawn-Boy 602612

PIN - STARTER

$23.99

$

In Stock, only 2 left!

0

21

Lawn-Boy 602613

DISCONTINUED

$

$

Not available

22

Lawn-Boy 602615

DISCONTINUED

$

$

Not available

23

Lawn-Boy 602616

DISCONTINUED

$

$

Not available

24

Lawn-Boy 677242

DISCONTINUED

$

$

Not available

25

Lawn-Boy 120395

See Supercession: 607199
(Superseded to 607199)

$5.49

$

In Stock, Qty 9

0

26

Lawn-Boy 602640

DISCONTINUED

$

$

Not available

27

Lawn-Boy 677674

DISCONTINUED

$

$

Not available

28

Lawn-Boy 602635

YOKE S

$

$

Not available

29

Lawn-Boy 602636

DISCONTINUED

$

$

Not available

30

Lawn-Boy 602634

COLLAR S

$24.99

$

In Stock, only 3 left!

0

31

Lawn-Boy 603415

Spring-Governor

$

$

Currently unavailable

32

Lawn-Boy 602639

WEAR BLOCK S

$2.99

$

In Stock, only 2 left!

0

33

Lawn-Boy 677294

GOVERNER LEVER AY

$

$

Not available

34

Lawn-Boy 306408

DISCONTINUED

$

$

Not available

35

Lawn-Boy 306396

Washer

$

$

Currently unavailable

36

Lawn-Boy 677673

DISCONTINUED

$

$

Not available

37

Lawn-Boy 677755

DISCONTINUED

$

$

Not available

38

Lawn-Boy 602651

See Supercession: 604344
(Superseded to 604344)

$

$

Not available

39

Lawn-Boy 677299

DISCONTINUED

$

$

Not available

40

Lawn-Boy 133079

NUT S

$3.49

$

Usually ships in 3-6 days

0

41

Lawn-Boy 603466

DISCONTINUED

$

$

Not available

42

Lawn-Boy 302812

DISCONTINUED

$

$

Not available

43

Lawn-Boy 677254

BREAKER AY. S

$54.99

$

Usually ships in 3-6 days

0

44

Lawn-Boy 307594

DISCONTINUED

$

$

Not available

45

Lawn-Boy 677699

DISCONTINUED

$

$

Not available

46

Lawn-Boy 510195

DISCONTINUED

$

$

Not available

47

Lawn-Boy 580184

DISCONTINUED

$

$

Not available

48

Lawn-Boy 603754

DISCONTINUED

$

$

Not available

49

Lawn-Boy 677854

DISCONTINUED

$

$

Not available

50

Lawn-Boy 602632

See Supercession: 611396
(Superseded to 611396)

$6.99

$

In Stock, Qty 19

0

51

Lawn-Boy 602590

GASKET S

$

$

Not available

51

Lawn-Boy 602763

GASKET S

$2.49

$

In Stock, only 1 left!

0

52

Lawn-Boy 306370

Cotter Pin

$

$

Currently unavailable

53

Lawn-Boy 602623

KNOB, CHOKE BAR

$6.49

$

In Stock, Qty 6

0

54

Lawn-Boy 603883

Choke Rod

$

$

Currently unavailable

55

Lawn-Boy 603924

Spring Clip

$

$

Currently unavailable

56

Lawn-Boy 603882

Screw-Thumb

$

$

Currently unavailable

57

Lawn-Boy 677903

DISCONTINUED

$

$

Not available

58

Lawn-Boy 603787

DISCONTINUED

$

$

Not available

59

Lawn-Boy 603878

Screw-Sems

$

$

Currently unavailable

60

Lawn-Boy 603877

Chamber-Intake

$

$

Currently unavailable

61

Lawn-Boy 603876

Gasket-Intake Chamber

$

$

Currently unavailable

62

Lawn-Boy 603875

Plate-Filter Attachment

$

$

Currently unavailable

63

Lawn-Boy 402517

DISCONTINUED

$

$

Not available

64

Lawn-Boy 602192

SCREW S

$

$

Not available

65

Lawn-Boy 306396

Washer

$

$

Currently unavailable

66

Lawn-Boy 603477

DISCONTINUED

$

$

Not available

67

Lawn-Boy 603851

Gasket-Reed Plate to Crankcase

$

$

Currently unavailable

68

Lawn-Boy 602052

GASKET S

$3.99

$

In Stock, Qty 18

0

69

Lawn-Boy 602192

SCREW S

$

$

Not available

70

Lawn-Boy 677888

DISCONTINUED

$

$

Not available

71

Lawn-Boy 307045

Screw-Float Bowl to Carb.

$

$

Currently unavailable

72

Lawn-Boy 602712

DISCONTINUED

$

$

Not available

73

Lawn-Boy 602850

See Supercession: 98-1362
(Superseded to 98-1362)

$3.49

$

In Stock, Qty 20+

0

74

Lawn-Boy 300096

See Supercession: 92-6389
(Superseded to 92-6389)

$5.99

$

In Stock, only 1 left!

0

75

Lawn-Boy 486218

DISCONTINUED
(Superseded to 678736)

$

$

Not available

76

Lawn-Boy 301996

WASHER

$3.49

$

Usually ships in 3-6 days

0

77

Lawn-Boy 601096

DISCONTINUED

$

$

Not available

78

Lawn-Boy 601098

DISCONTINUED

$

$

Not available

79

Lawn-Boy 601097

DISCONTINUED

$

$

Not available

80

Lawn-Boy 53X220

Screw-Choke Disc

$

$

Currently unavailable

81

Lawn-Boy 603115

DISCONTINUED

$

$

Not available

82

Lawn-Boy 677090

DISCONTINUED

$

$

Not available

83

Lawn-Boy 602290

DISCONTINUED

$

$

Not available

84

Lawn-Boy 677889

DISCONTINUED

$

$

Not available

85

Lawn-Boy 603292

DISCONTINUED

$

$

Not available

86

Lawn-Boy 604013

Spring-Throttle Shaft

$

$

Currently unavailable

87

Lawn-Boy 677039

NEEDLE AY. S

$

$

Not available

88

Lawn-Boy 602495

KNOB S

$7.99

$

In Stock, only 1 left!

0

89

Lawn-Boy 306561

Washer

$

$

Currently unavailable

90

Lawn-Boy 603853

Carburetor Body

$

$

Currently unavailable

91

Lawn-Boy 375919

DISCONTINUED
(Superseded to 678113)

$

$

Not available

92

Lawn-Boy 602293

Spring-Ndl. Adj.

$

$

Currently unavailable

93

Lawn-Boy 603855

Rod-Governor

$

$

Currently unavailable

94

Lawn-Boy 603856

Link-Throttle

$

$

Currently unavailable

95

Lawn-Boy 603854

Bell Crank

$

$

Currently unavailable

96

Lawn-Boy 306561

Washer

$

$

Currently unavailable

97

Lawn-Boy 677930

DISCONTINUED

$

$

Not available

98

Lawn-Boy 303761

See Supercession: 612872
(Superseded to 612872)

$2.49

$

In Stock, Qty 5

0

99

Lawn-Boy 602587

PLATE-BACKUP, REED

$3.49

$

Usually ships in 3-6 days

0

100

Lawn-Boy 602588

DISCONTINUED

$

$

Not available

101

Lawn-Boy 603850

Roll Pin

$

$

Currently unavailable

102

Lawn-Boy 602721

Spark Plug

$

$

Currently unavailable

103

Lawn-Boy 603862

DISCONTINUED

$

$

Not available

104

Lawn-Boy 602657

DISCONTINUED

$

$

Not available

105

Lawn-Boy 306325

DISCONTINUED

$

$

Not available

106

Lawn-Boy 677226

Cylinder Sleeve Assembly

$

$

Currently unavailable

107

Lawn-Boy 603921

Gasket-Cylinder to Crankcase

$

$

Currently unavailable

Lawn-Boy 676077

DISCONTINUED

$

$

Not available

108

Lawn-Boy 676078

DISCONTINUED

$

$

Not available

109

Lawn-Boy 603148

Screw-Connecting Rod

$

$

Currently unavailable

110

Lawn-Boy 120110

DUP PART SEE $BOOK

$

$

Not available

111

Lawn-Boy 303333

DISCONTINUED

$

$

Not available

112

Lawn-Boy 601006

Ring-Piston

$

$

Currently unavailable

113

Lawn-Boy 601134

DISCONTINUED

$

$

Not available

114

Lawn-Boy 603229

Crankshaft

$

$

Currently unavailable

115

Lawn-Boy 603860

Screw-Square Head

$

$

Currently unavailable

116

Lawn-Boy 602627

DISCONTINUED

$

$

Not available

117

Lawn-Boy 677929

DISCONTINUED

$

$

Not available

118

Lawn-Boy 603101

DISCONTINUED

$

$

Not available

119

Lawn-Boy 603859

Bracket-Wheel Scraper

$

$

Currently unavailable

120

Lawn-Boy 602617

DISCONTINUED

$

$

Not available

121

Lawn-Boy 602192

SCREW S

$

$

Not available
