LV675-851515 - Kohler Aegis Engine, Made for Scag, 23hp, 17.2kW 03 Lubrication Parts Diagram

Aegis Engine, Made for Scag, 23hp, 17.2kW

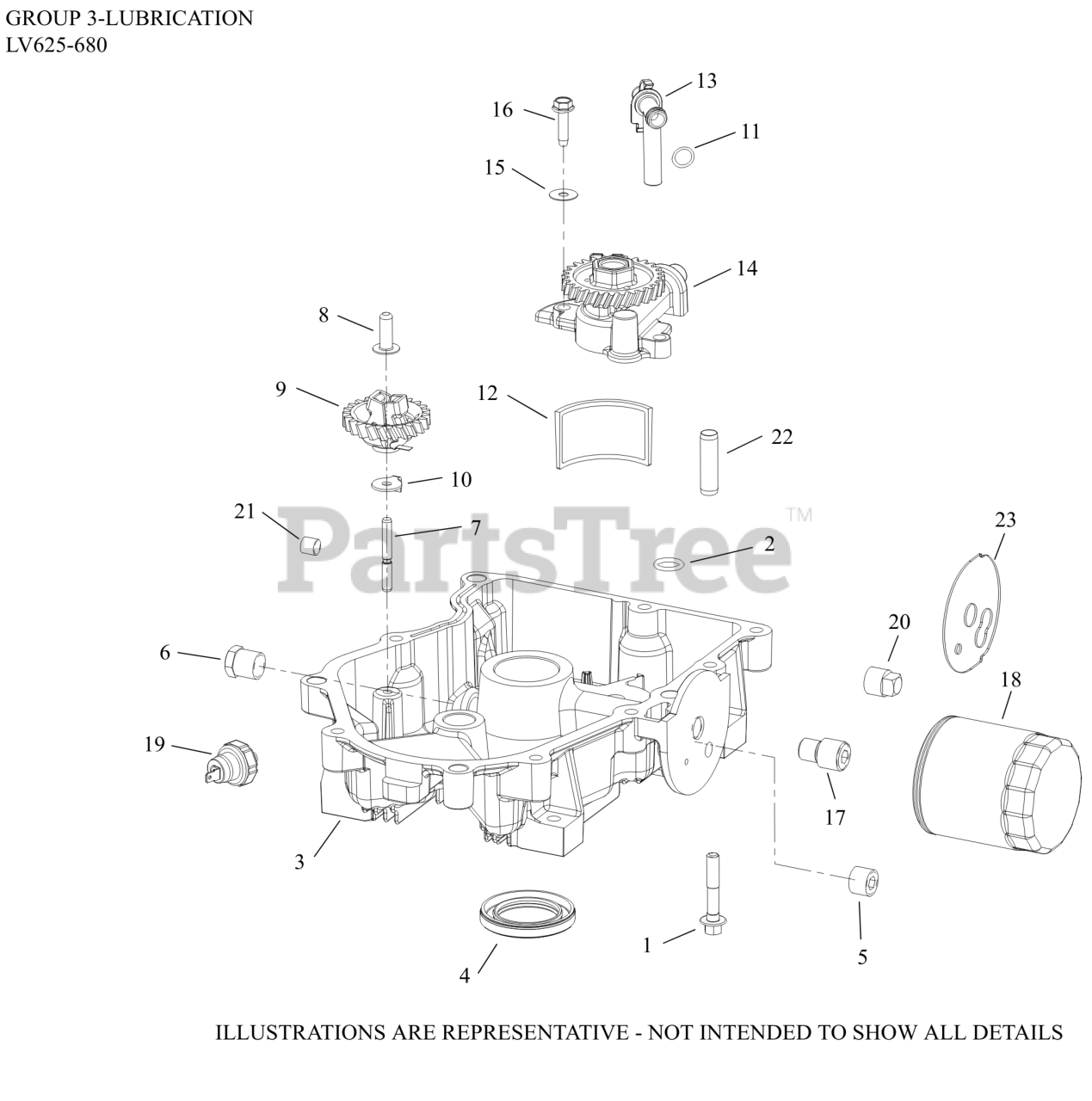

03 Lubrication Parts Diagram

  • Title

1

Kohler 24 086 17-S

SCREW, FLG M8X1.25X45

$2.49

$

In Stock, Qty 5

0

2

Kohler 24 153 08-S

O-RING

$6.99

$

In Stock, only 2 left!

0

3

Kohler 24 199 07-S

PAN , OIL ASSEMBLY-(#2419932S)
(Superseded to 24 199 35-S)

$337.99

$

In Stock, only 1 left!

0

4

Kohler 25 032 06-S

OIL SEAL

$10.99

$

In Stock, Qty 20+

0

5

Kohler 25 139 62-S

PLUG, PIPE CTSK 3/8"

$3.49

$

In Stock, only 2 left!

0

7

Kohler 12 144 02-S

SHAFT, GOVERNOR GEAR

$4.49

$

In Stock, Qty 8

0

8

Kohler 12 380 01-S

PIN, GOVERNOR REGULATING

$3.49

$

In Stock, Qty 10

0

9

Kohler 24 043 12-S

KIT, GOVERNOR GEAR W/PIN

$68.99

$

In Stock, Qty 12

0

10

Kohler 24 448 02-S

TAB, LOCKING

$2.49

$

In Stock, Qty 20+

0

11

Kohler 24 153 01-S

O-RING, OIL PICK-UP

$2.49

$

In Stock, Qty 8

0

12

Kohler 24 162 26-S

SCREEN, OIL

$17.99

$

In Stock, only 1 left!

0

13

Kohler 24 381 11-S

KIT, OIL PICK-UP TUBE-(#DSC)

$

$

Not available

14

Kohler 24 393 51-S

PUMP ASSEMBLY, OIL-USE 24 393 53-S
(Superseded to 24 393 53-S)

$

$

Not available

15

Kohler M-631005-S

WASHER, FLAT 6 MM

$2.49

$

Usually ships in 2-5 days

0

16

Kohler M-645025-S

SCREW,FLG THD FRM M6X1.0X25-(#25086395S)
(Superseded to 25 086 395-S)

$2.49

$

In Stock, only 1 left!

0

17

Kohler 24 136 01-S

NIPPLE, OIL FILTER-(#2413609S)
(Superseded to 24 136 09-S)

$5.99

$

Usually ships in 2-5 days

0

18

Kohler 12 050 01-S

OIL FILTER

$13.99

$

In Stock, Qty 20+

0

20

Kohler 25 139 57-S

PLUG, SQ HD PIPE 3/8"

$2.49

$

In Stock, only 3 left!

0

21

Kohler 25 139 60-S

PLUG, CTSK PIPE 1/8"

$3.49

$

In Stock, only 2 left!

0

NI

Kohler 25 597 06-S

SEALANT(LOCTITE 222 RETAIN CMPND 0.5ML)

$7.99

$

In Stock, only 1 left!

0
