LV675-851515 - Kohler Aegis Engine, Made for Metalcraft Of Mayville, 23hp, 17.2kW Ignition/Electrical (TP-2508) Parts Diagram

Aegis Engine, Made for Metalcraft Of Mayville, 23hp, 17.2kW

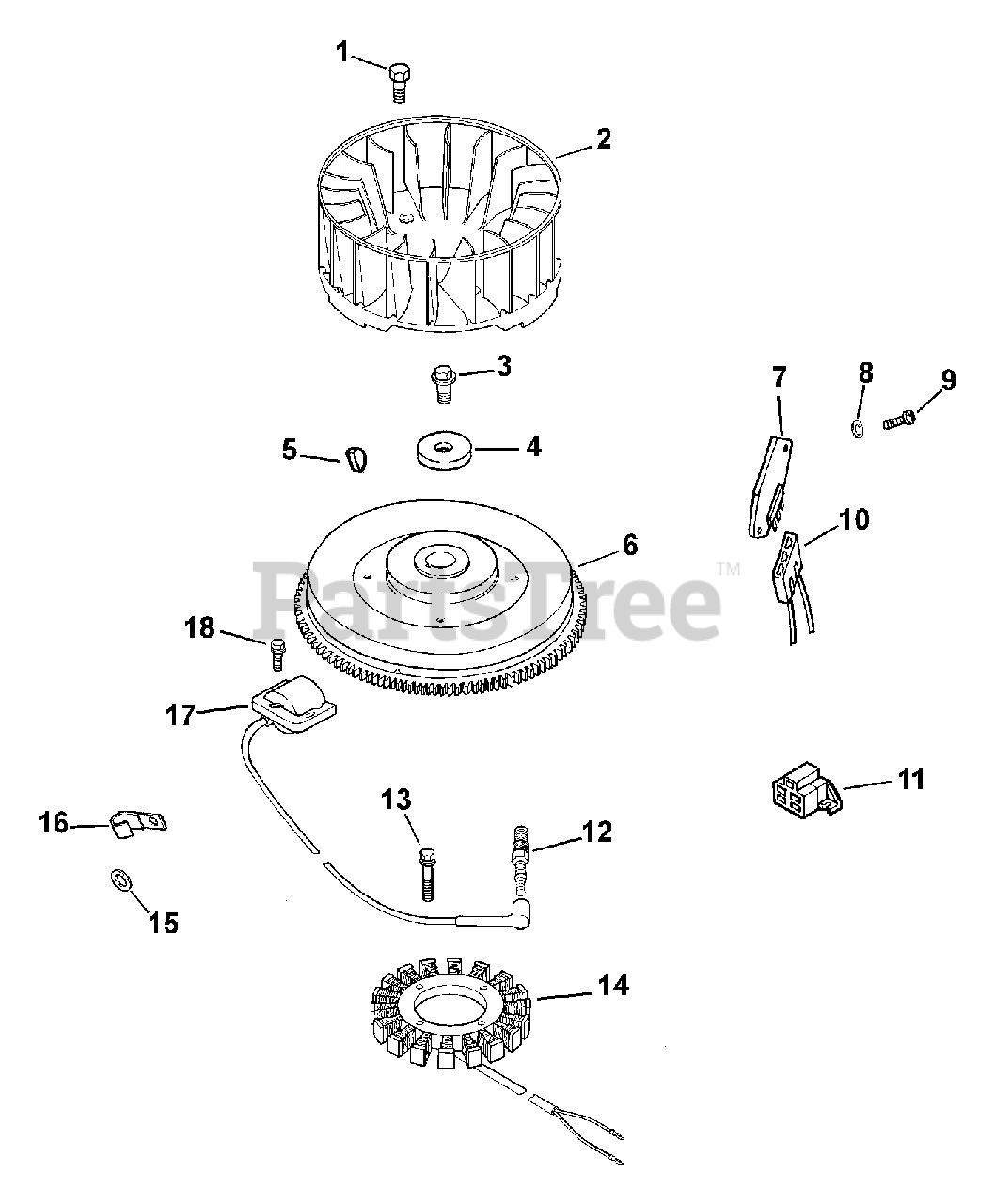

Ignition/Electrical (TP-2508) Parts Diagram

  • Title

1

Kohler 66 086 02-S

BOLT, SHOULDER

$2.49

$

Usually ships in 2-5 days

0

2

Kohler 66 157 01-S

FAN - DISCONTINUED

$

$

Not available

3

Kohler 12 086 14-S

SCREW, FLG M10X1.5X45 - (#25086361S)
(Superseded to 25 086 361-S)

$3.99

$

In Stock, Qty 12

0

4

Kohler 12 468 03-S

WASHER, FLAT 13/32"
(Superseded to 25 468 09-S)

$6.49

$

In Stock, only 2 left!

0

5

Kohler X-42-15-S

KEY, 3/16" X 5/8"

$2.99

$

In Stock, Qty 8

0

6

Kohler 66 025 01-S

FLYWHEEL (PAINTED)-USE 24 025 20-S
(Superseded to 24 025 20-S)

$235.99

$

Usually ships in 2-5 days

0

7

Kohler 25 403 03-S

USE 41 403 09-S REG/RECT
(Superseded to 41 403 09-S)

$

$

Not available

9

Kohler 66 086 04-S

SCREW, HEX WASHER HEAD

$

$

Not available

10

Kohler 236602-S

CONNECTOR, BODY (KM)-USE 25 155 41-S
(Superseded to 25 155 41-S)

Note: 3 contact

$24.99

$

In Stock, only 1 left!

0

11

Kohler 25 155 06-S

CONNECTOR

$8.49

$

Usually ships in 2-5 days

0

12

Kohler 66 132 01-S

SPARK PLUG

$8.99

$

Usually ships in 2-5 days

0

13

Kohler M-548025-S

SCREW, M5X0.8X25 - (#25086402S)
(Superseded to 25 086 402-S)

$2.49

$

In Stock, only 2 left!

0

14

Kohler 237878-S

KIT, 15 / 20 AMP STATOR

Note: Includes 25 452 01-S

$149.99

$

In Stock, Qty 15

0

15

Kohler X-25-63-S

WASHER, FLAT 1/4" (O.D. 1/2")

$2.49

$

In Stock, only 3 left!

0

16

Kohler 235173-S

CLIP, CABLE

$11.99

$

Usually ships in 2-5 days

0

17

Kohler 66 584 04-S

MODULE, IGNITION (#DSC)

$

$

Not available

18

Kohler M-545020-S

SCREW, FLG THD FRM M5X.8X20-(#25086399S)
(Superseded to 25 086 473-S)

$2.49

$

In Stock, Qty 6

0

2545201-S

Kohler 25 452 01-S

TERMINAL

Note: NOT ILLUSTRATED.

$5.49

$

In Stock, only 1 left!

0

X-22-11-S

Kohler X-22-11-S

WASHER, INT TOOTH LOCK 1/4"

Note: NOT ILLUSTRATED. to ground rectifier-regulator

$2.49

$

In Stock, only 3 left!

0

2417641-S

Kohler 24 176 41-S

LEAD, DUPLEX

Note: NOT ILLUSTRATED.

$6.49

$

In Stock, only 2 left!

0

6617601-S

Kohler 66 176 01-S

Harness, wiring assembly

Note: NOT ILLUSTRATED.

$

$

Not available

1245403-S

Kohler 12 454 03-S

TIE, CABLE

Note: NOT ILLUSTRATED.

$3.49

$

Usually ships in 2-5 days

0
