LV675-851515 - Kohler Aegis Engine, Made for Metalcraft Of Mayville, 23hp, 17.2kW Head/Valve/Breather (TP-2508) Parts Diagram

Aegis Engine, Made for Metalcraft Of Mayville, 23hp, 17.2kW

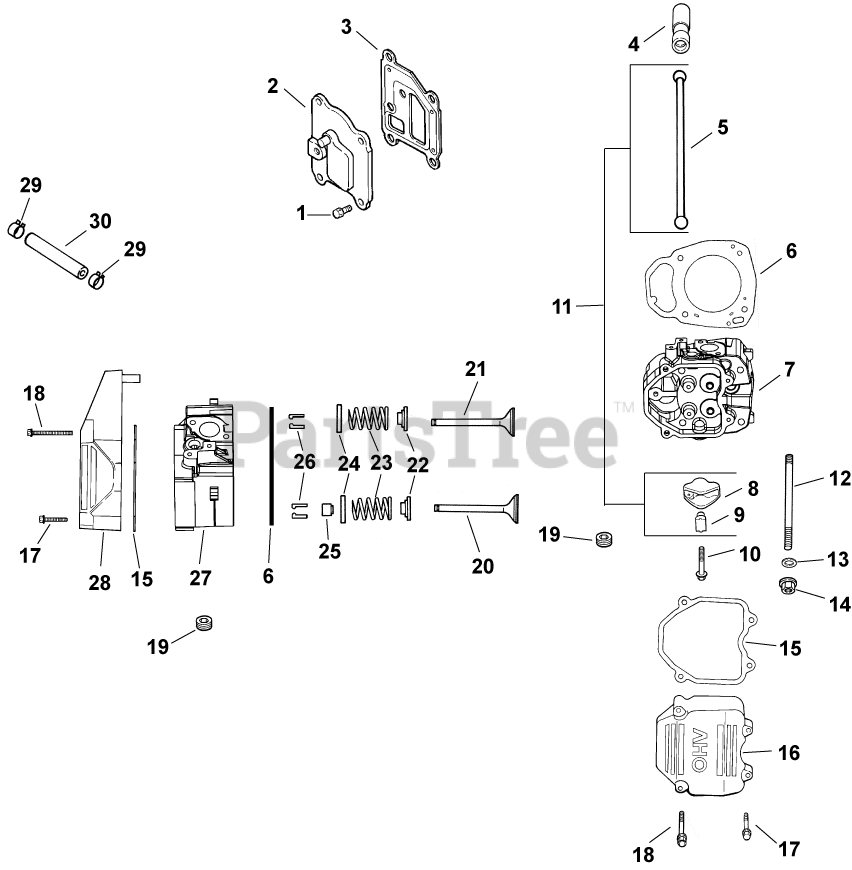

Head/Valve/Breather (TP-2508) Parts Diagram

  • Title

1

Kohler M-645020-S

SCREW,FLG THD FRM M6X1.0X20-(#25086396S)
(Superseded to 25 086 396-S)

$2.49

$

In Stock, only 1 left!

0

2

Kohler 24 096 87-S

COVER, BREATHER -USE 24 096 125-S
(Superseded to 24 033 03-S)

$32.99

$

In Stock, only 1 left!

0

3

Kohler 24 041 51-S

GASKET, BREATHER-USE 24 041 67-S
(Superseded to 24 041 67-S)

$13.99

$

In Stock, Qty 20+

0

4

Kohler 25 351 04-S

LIFTER, HYDRAULIC VALVE-USE 25 351 10-S
(Superseded to 25 351 11-S)

$23.99

$

In Stock, Qty 9

0

5

Kohler 24 411 05-S

ROD, PUSH

$5.49

$

In Stock, Qty 5

0

6

Kohler 66 841 02-S

KIT, CYLINDER HEAD GASKET

$47.99

$

In Stock, only 4 left!

0

7

Kohler 66 318 02-S

KIT,CYLINDER HEAD #2

$

$

Not available

8

Kohler 25 186 01-S

ARM, ROCKER

$12.99

$

In Stock, only 2 left!

0

9

Kohler 24 599 02-S

PIVOT, ROCKER ARM

$2.49

$

In Stock, Qty 8

0

10

Kohler 66 086 07-S

SCREW, ROCKER ARM PIVOT-USE M-640034-S
(Superseded to M-640034-S)

$2.49

$

In Stock, Qty 18

0

11

Kohler 24 755 66-S

KIT, VALVE TRAIN

Note: (includes 5,8,9)

$45.99

$

In Stock, Qty 5

0

12

Kohler 66 072 03-S

STUD

$9.49

$

Usually ships in 2-5 days

0

13

Kohler 220534-S

WASHER, FLAT 5/16"

$5.49

$

In Stock, Qty 5

0

14

Kohler 24 100 10-S

NUT, FLG M8X1.25

$4.49

$

Usually ships in 2-5 days

0

15

Kohler 66 041 09-S

GASKET, VALVE COVER

$6.49

$

In Stock, Qty 7

0

16

Kohler 66 096 11-S

KIT, ROCKER COVER

$36.99

$

In Stock, only 1 left!

0

17

Kohler M-651025-S

SCREW - USE 25 086 124-S
(Superseded to 25 086 124-S)

$2.49

$

In Stock, only 3 left!

0

18

Kohler M-651050-S

SCREW, FLG M6X1.0X50

$2.99

$

Usually ships in 2-5 days

0

19

Kohler 66 139 01-S

PLUG, PIPE

$7.99

$

Usually ships in 2-5 days

0

20

Kohler 24 016 01-S

VALVE, EXHAUST (STD) - USE 32 016 01-S
(Superseded to 32 016 01-S)

$15.99

$

In Stock, Qty 14

0

2401602-S

Kohler 24 016 02-S

VALVE, EXHAUST (.25)
(Superseded to 32 016 02-S)

$15.99

$

In Stock, only 3 left!

0

21

Kohler 24 017 01-S

VALVE, INTAKE (STD)

$30.99

$

In Stock, Qty 15

0

2401702-S

Kohler 24 017 02-S

VALVE, INTAKE (.25)

$

$

Not available

22

Kohler 12 173 01-S

RETAINER, VALVE SPRING - USE 25 173 28-S
(Superseded to 25 173 28-S)

$8.49

$

In Stock, only 3 left!

0

23

Kohler 24 089 02-S

SPRING, VALVE

$7.99

$

In Stock, only 4 left!

0

24

Kohler 66 018 02-S

RETAINER-USE 235011-S
(Superseded to 235011-S)

$6.49

$

In Stock, only 1 left!

0

25

Kohler 66 032 05-S

SEAL, VALVE STEM - (#2503214S)
(Superseded to 25 032 14-S)

$11.99

$

In Stock, Qty 20+

0

26

Kohler 12 755 03-S

KIT, RETAINER

$5.99

$

In Stock, Qty 8

0

27

Kohler 66 318 01-S

KIT,CYLINDER HEAD #1

$411.99

$

Usually ships in 2-5 days

0

28

Kohler 66 096 12-S

KIT, ROCKER COVER W/BREATHER - DISCONTINUED

$

$

Not available

29

Kohler 25 237 12-S

CLAMP, HOSE-USE 25 237 32-S
(Superseded to 25 237 32-S)

$6.49

$

Usually ships in 2-5 days

0

30

Kohler 66 326 10-S

HOSE, BREATHER - USE 66 326 32-S
(Superseded to 66 326 32-S)

$

$

Not available
