LV675-851515 - Kohler Aegis Engine, Made for Metalcraft Of Mayville, 23hp, 17.2kW Cooling System - Vertical 13-66-1 (TP-2508) Parts Diagram

Aegis Engine, Made for Metalcraft Of Mayville, 23hp, 17.2kW

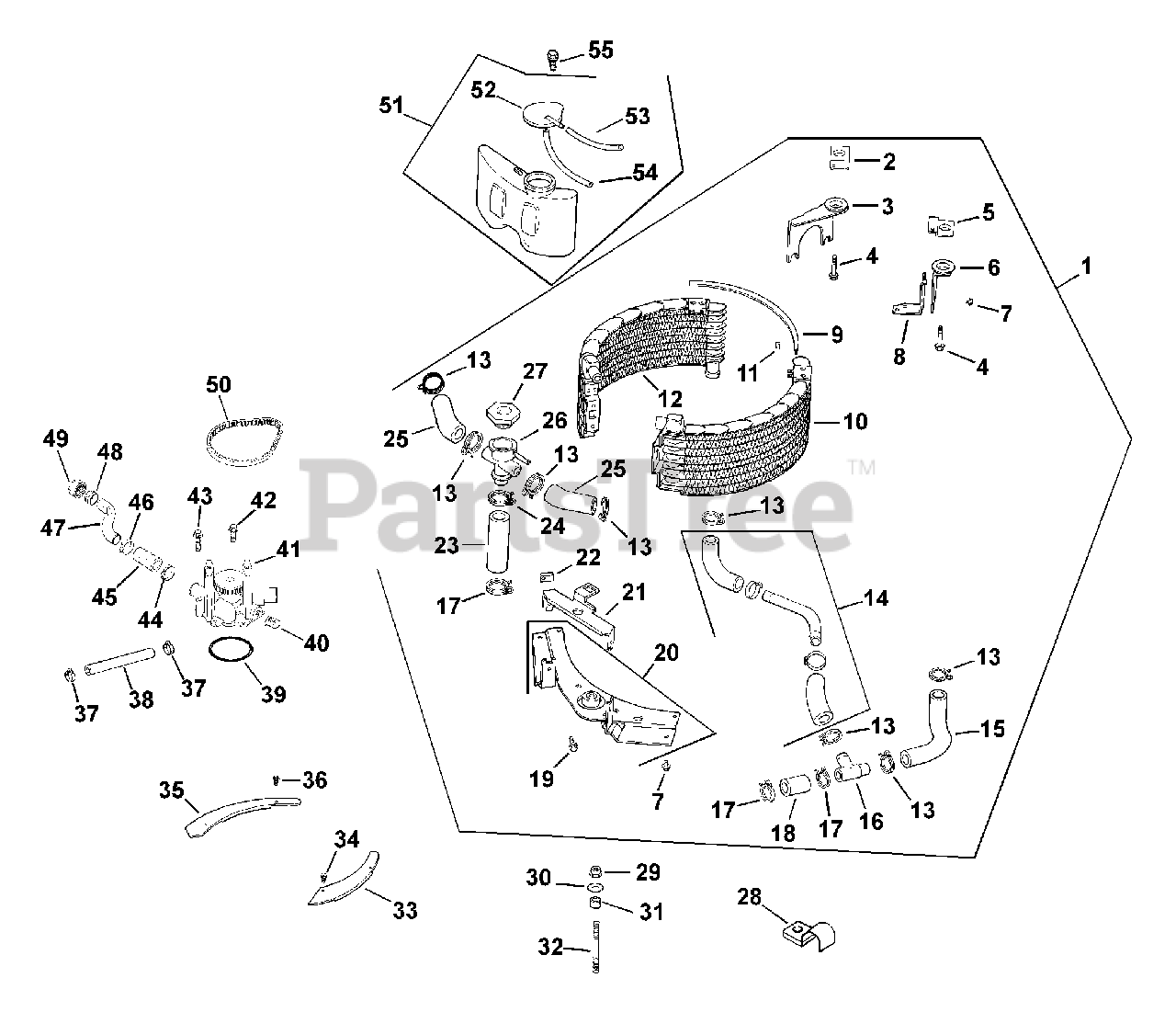

Cooling System - Vertical 13-66-1 (TP-2508) Parts Diagram

  • Title

1

Kohler 66 398 01-S

RADIATOR ASSEMBLY - DISCONTINUED

Note: Includes 2-27

$

$

Not available

2

Kohler 66 126 23-S

BRACKET, LEFT KIDNEY

$47.99

$

Usually ships in 2-5 days

0

3

Kohler 66 126 01-S

BRACKET, SOLENOID ATTACHING

Note: Includes isolator

$87.99

$

Usually ships in 2-5 days

0

4

Kohler 66 086 09-S

SCREW, RADIATOR ISOLATOR

$

$

Not available

5

Kohler 66 126 24-S

BRACKET, RIGHT KIDNEY

$47.99

$

Usually ships in 2-5 days

0

6

Kohler 66 126 06-S

BRACKET, UPPER Z ATTACHING

Note: Includes isolator

$

$

Not available

7

Kohler M-639010-S

SCREW, FLG M6X1.0X10

$2.49

$

Usually ships in 2-5 days

0

8

Kohler 66 126 02-S

BRACKET, LOWER Z ATTACHING

Note: Includes isolator

$

$

Not available

9

Kohler 66 442 01-S

TOP TIE BAR

$

$

Not available

10

Kohler 66 397 02-S

RADIATOR CORE - (#DSC)

$

$

Not available

11

Kohler M-647060-S

NUT, LOCK M6X1.0

$2.49

$

In Stock, only 3 left!

0

12

Kohler 66 397 01-S

RADIATOR CORE-DISCONTINUED

$

$

Not available

13

Kohler 66 237 09-S

CLAMP

$15.99

$

Usually ships in 2-5 days

0

14

Kohler 66 326 03-S

HOSE, OUTLET - (#DSC)

$

$

Not available

15

Kohler 66 326 04-S

HOSE, OUTLET - (#DSC)

$

$

Not available

16

Kohler 66 451 01-S

TEE, HOSE CONNECTOR (#DSC)

$

$

Not available

17

Kohler 66 237 18-S

CLAMP, THERMOSTAT HSG OUTLET

$7.49

$

Usually ships in 2-5 days

0

18

Kohler 66 326 05-S

HOSE, OUTLET

$

$

Not available

19

Kohler M-639016-S

SCREW, FLG M6X1.0X16

$2.49

$

In Stock, Qty 6

0

20

Kohler 66 126 08-S

BRACKET, BOTTOM ATTACHING

$

$

Not available

21

Kohler 66 126 07-S

BRACKET, TOP ATTACHING

$47.99

$

Usually ships in 2-5 days

0

22

Kohler 66 154 02-S

U CLIP - DISCONTINUED

$

$

Not available

23

Kohler 66 326 01-S

HOSE, INLET - (#DSC)

$

$

Not available

24

Kohler 66 237 17-S

CLAMP - DISCONTINUED

$

$

Not available

25

Kohler 66 326 02-S

HOSE, INLET-DISCONTINUED

$

$

Not available

26

Kohler 66 440 01-S

FILLER NECK - (#DSC)

$

$

Not available

27

Kohler 66 173 01-S

CAP, RADIATOR - (#6617309S)
(Superseded to 66 173 09-S)

$48.99

$

In Stock, only 2 left!

0

28

Kohler 66 154 04-S

CLIP,LWR RADIATOR HOSE HALF-DISC.

$

$

Not available

29

Kohler M-647060-S

NUT, LOCK M6X1.0

$2.49

$

In Stock, only 3 left!

0

30

Kohler X-25-52-S

WASHER, FLAT 1/4"

$3.99

$

In Stock, only 1 left!

0

31

Kohler 66 431 02-S

SLEEVE, INTAKE MANIFOLD - DISC.

$

$

Not available

32

Kohler 66 072 02-S

STUD, M6X1.0X53 - DISCONTINUED

$

$

Not available

33

Kohler 66 146 16-S

PLATE, LEFT BLOCK OFF

$8.49

$

Usually ships in 2-5 days

0

34

Kohler 66 086 05-S

SCREW, CAP M6X1.0X10

$

$

Not available

35

Kohler 66 146 17-S

PLATE, RIGHT BLOCK OFF - DISC.

$

$

Not available

36

Kohler M-650012-S

SCREW, FLG M6X1.0X12

$3.49

$

In Stock, only 3 left!

0

37

Kohler 25 237 14-S

CLAMP, HOSE (KM)-USE 25 237 31-S
(Superseded to 25 237 31-S)

$4.99

$

In Stock, only 3 left!

0

38

Kohler 66 326 24-S

HOSE, BY-PASS (12.00")

$10.99

$

In Stock, only 1 left!

0

39

Kohler 66 153 01-S

O-RING

$2.49

$

In Stock, only 2 left!

0

40

Kohler 45 155 01-S

CONNECTOR

$10.99

$

Usually ships in 2-5 days

0

41

Kohler 66 393 01-S

PUMP ASSEMBLY, WATER - USE 66 393 10-S
(Superseded to 66 393 10-S)

$304.99

$

In Stock, only 1 left!

0

42

Kohler M-651020-S

SCREW, FLG M6x1.0x20

$2.49

$

In Stock, Qty 6

0

43

Kohler M-639040-S

SCREW, FLG M6X1.0X40 - DISCONTINUED

$

$

Not available

44

Kohler 66 237 08-S

CLAMP - USE 25 237 32-S
(Superseded to 25 237 32-S)

$6.49

$

Usually ships in 2-5 days

0

45

Kohler 66 123 01-S

HOSE, CROSSOVER - USE 66 755 16-S
(Superseded to 66 755 16-S)

$69.99

$

Usually ships in 2-5 days

0

46

Kohler 66 237 07-S

CLAMP

$3.99

$

Usually ships in 2-5 days

0

47

Kohler 66 123 03-S

TUBE, CROSSOVER - USE 66 755 16-S
(Superseded to 66 755 16-S)

$69.99

$

Usually ships in 2-5 days

0

48

Kohler 66 431 03-S

SLEEVE

$5.99

$

Usually ships in 2-5 days

0

49

Kohler 66 100 01-S

NUT

$19.99

$

Usually ships in 2-5 days

0

50

Kohler 66 203 01-S

BELT, WATER PUMP

$21.99

$

In Stock, only 2 left!

0

51

Kohler 66 065 01-S

TANK, OVERFLOW (BOTTLE) - DISCONTINUED

Note: Includes 52-54

$

$

Not available

52

Kohler 66 173 03-S

CAP, OVERFLOW BOTTLE - (#DSC)

$

$

Not available

53

Kohler 66 326 23-S

HOSE, WATER BOTTLE - DISCONTINUED

Note: outer

$

$

Not available

54

Kohler 66 326 22-S

HOSE, WATER BOTTLE

Note: inner

$8.99

$

Usually ships in 2-5 days

0

55

Kohler 24 086 42-S

SCREW,FLG THD FRM M6X1.0X16-(#25086404S)
(Superseded to 25 086 404-S)

$3.99

$

Usually ships in 2-5 days

0

6645401-S

Kohler 66 454 01-S

TIE STRAP, LWR RADIATOR HOSE

Note: NOT ILLUSTRATED.

$

$

Not available
