LV675-851515 - Kohler Aegis Engine, Made for Metalcraft Of Mayville, 23hp, 17.2kW Air Intake Group 10-66-4 (TP-2508) Parts Diagram

Aegis Engine, Made for Metalcraft Of Mayville, 23hp, 17.2kW

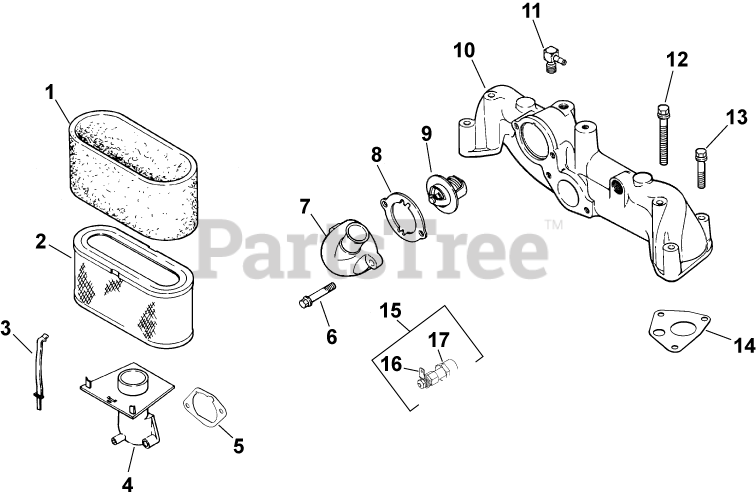

Air Intake Group 10-66-4 (TP-2508) Parts Diagram

  • Title

1

Kohler 66 083 03-S

PRE-CLEANER

$7.99

$

In Stock, only 1 left!

0

2

Kohler 66 083 01-S

ELEMENT, AIR FILTER

$64.99

$

In Stock, only 1 left!

0

3

Kohler 66 445 02-S

STRAP, RETAINING

$2.49

$

Usually ships in 2-5 days

0

4

Kohler 66 054 01-S

ELBOW, AIR INTAKE

$29.99

$

Usually ships in 2-5 days

0

5

Kohler 24 041 14-S

GASKET, AIR CLEANER BASE

$2.99

$

In Stock, Qty 9

0

6

Kohler M-651025-S

SCREW - USE 25 086 124-S
(Superseded to 25 086 124-S)

$2.49

$

In Stock, only 3 left!

0

7

Kohler 66 081 01-S

HOUSING, THERMOSTAT

$31.99

$

Usually ships in 2-5 days

0

8

Kohler 66 041 01-S

GASKET, THERMOSTAT

$2.49

$

In Stock, only 2 left!

0

9

Kohler 66 453 01-S

KIT, THERMOSTAT - USE 66 453 02-S
(Superseded to 66 453 02-S)

$54.99

$

Usually ships in 2-5 days

0

10

Kohler 66 164 01-S

MANIFOLD, INTAKE-DISCONTINUED

$

$

Not available

11

Kohler 45 155 01-S

CONNECTOR

$10.99

$

Usually ships in 2-5 days

0

12

Kohler M-651090-S

SCREW, FLG M6X1.0X90

$2.99

$

Usually ships in 2-5 days

0

13

Kohler M-651050-S

SCREW, FLG M6X1.0X50

$2.99

$

Usually ships in 2-5 days

0

14

Kohler 66 041 05-S

GASKET, INTAKE MANIFOLD

$2.49

$

In Stock, only 3 left!

0

15

Kohler 66 418 02-S

SENSOR ASSY, TEMPERATURE

$61.99

$

Usually ships in 2-5 days

0

16

Kohler 25 452 22-S

TERMINAL, EYELET/SPADE

$12.99

$

Usually ships in 2-5 days

0

17

Kohler 25 158 18-S

BUSHING, REDUCING

$6.99

$

Usually ships in 2-5 days

0
