LTX 8 (UT-33004-C) - Homelite Lawn Tractor Cowlings, Rear Fender And Seat Assembly Parts Diagram

Lawn Tractor

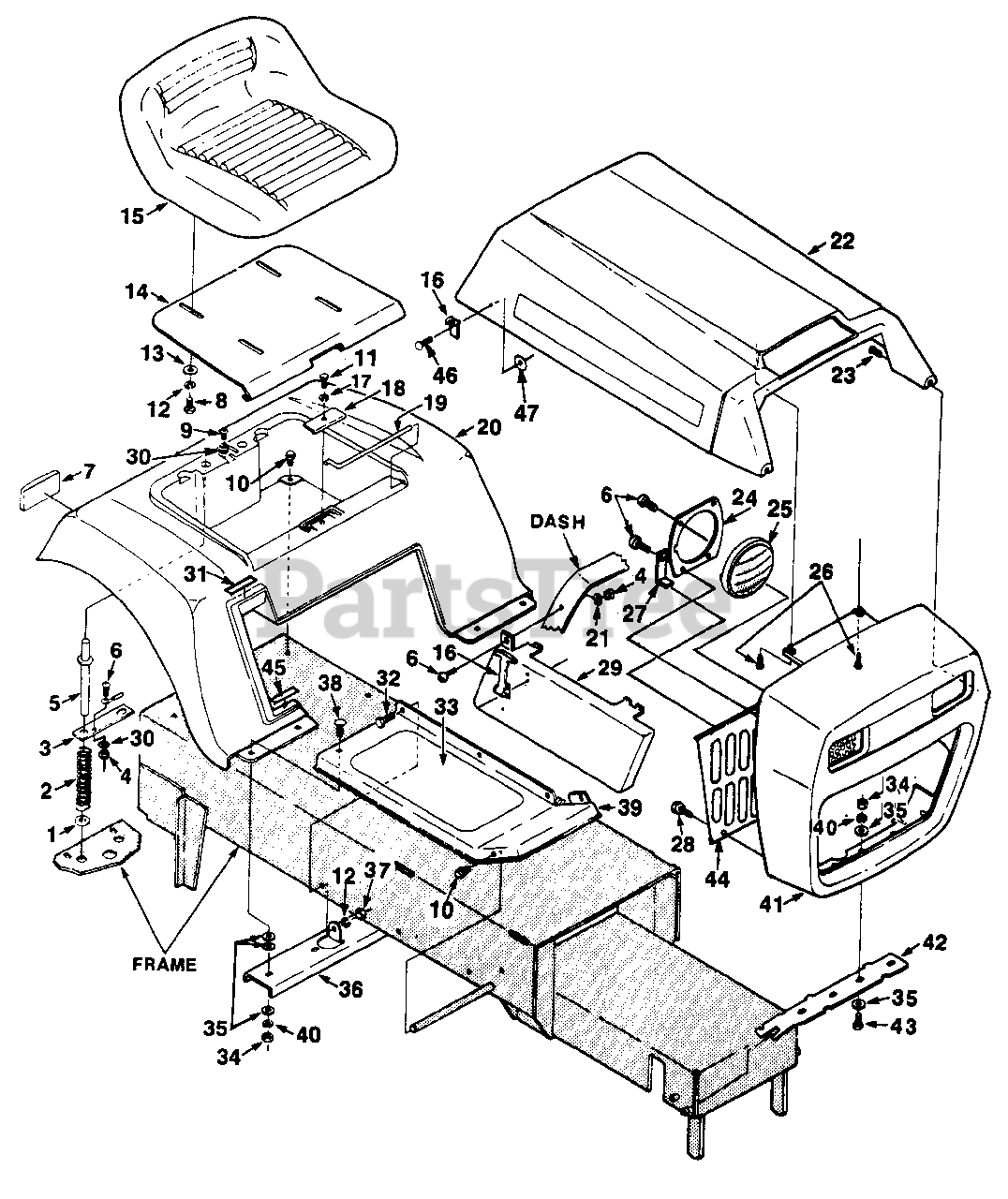

Cowlings, Rear Fender And Seat Assembly Parts Diagram

  • Title

1

Homelite JA376122

WASHER- Insulation

$

$

Currently unavailable

2

Homelite JA376118

SPRING- Compression

$

$

Currently unavailable

3

Homelite JA376116

CONTACT- Interlock

$

$

Currently unavailable

4

Homelite JA444310

NUT- Hex 10-24
(Superseded to 81092)

$

$

Not available

5

Homelite JA376117

PIN- Seat Support

$

$

Currently unavailable

6

Homelite JA403908

SCREW- 10-24 x 3/8

$

$

Currently unavailable

7

Homelite JA335757

REFLECTOR- Reflex

$

$

Currently unavailable

8

Homelite JA400182

SCREW- Hex hd. 5/16-18 x 5/8

$

$

Not available

9

Homelite JA409254

SCREW- #10 x 1/2

$2.49

$

Usually ships in 3-7 days

0

10

Homelite JA375978

BOLT- 1/4-14 x .44

$

$

Not available

11

Homelite JA400108

SCREW- Cap 1/4-20 x 3/4
(Superseded to 80052)

$

$

Not available

12

Homelite JA446136

WASHER- Lock 5/16
(Superseded to UP03791)

$

$

Not available

13

Homelite JA453009

WASHER- 5/16
(Superseded to UP07173)

$

$

Not available

14

Homelite JA991241

PAN- Seat

$

$

Currently unavailable

15

Homelite JA124072

SEAT- Jacobsen

$

$

Currently unavailable

16

Homelite JA990290

LATCH

$

$

Currently unavailable

17

Homelite JA446130

WASHER- Lock 1/4

$

$

Not available

18

Homelite JA376120

BRACKET- Hitch

$

$

Currently unavailable

19

Homelite JA376119

ROD- Hinge

$

$

Currently unavailable

20

Homelite JA991191

FENDER

$

$

Currently unavailable

21

Homelite JA453002

WASHER

$

$

Currently unavailable

22

Homelite JA991321

HOOD

$1135.99

$

Usually ships in 3-7 days

0

23

Homelite JA408406

SCREW- 1/4 x 14 x 1

$6.99

$

Usually ships in 3-7 days

0

24

Homelite JA339626

RETAINER- Light

$

$

Currently unavailable

25

Homelite JA376091

LIGHT- Head

$

$

Currently unavailable

26

Homelite JA408404

SCREW- Tap hex 1/4-14 x 3/4

$

$

Currently unavailable

27

Homelite JA994470

CLIP

$

$

Currently unavailable

28

Homelite JA408405

SCREW- 1/4-14 x 1/2

$

$

Currently unavailable

29

Homelite JA993343

PANEL- Side R.H.

Note: Incl. #6, 46 & 47

$

$

Not available

Homelite JA993345

PANEL- Side L.H.

$

$

Currently unavailable

30

Homelite JA446118

WASHER- Lock #10

$

$

Currently unavailable

31

Homelite JA991014

DECAL- Hi-Lift Pos.

$

$

Currently unavailable

32

Homelite JA400188

BOLT- Hex 5/16-18 x 1
(Superseded to 80085)

$2.49

$

Usually ships in 3-7 days

0

33

Homelite JA339612

PAD- Footboard

$

$

Currently unavailable

34

Homelite JA443102

NUT- Hex 1/4-20
(Superseded to JA993730)

$

$

Not available

35

Homelite JA453023

WASHER- Plain 1/4
(Superseded to 678013001)

$1.99

$

Usually ships in 3-7 days

0

36

Homelite JA339627

BRACKET- Footboard

$

$

Currently unavailable

37

Homelite JA443106

NUT- Hex 5/16-18
(Superseded to 81018)

$

$

Not available

38

Homelite JA441604

BOLT- 1/4-20 x 1

$

$

Currently unavailable

39

Homelite JA991301

FOOTBOARD, R.H.

Note: Includes Item #33

$

$

Currently unavailable

Homelite JA991271

FOOTBOARD L.H.

Note: Includes item #33

$

$

Currently unavailable

40

Homelite JA446128

WASHER- Lock 1/4
(Superseded to UP03409)

$8.49

$

Usually ships in 3-7 days

0

41

Homelite JA991291

COWLING

$

$

Currently unavailable

42

Homelite JA392600

HINGE- Grille

$

$

Currently unavailable

43

Homelite JA400106

SCREW- 1/4-20 x 5/8

$

$

Currently unavailable

44

Homelite JA990397

GRILLE SCREEN

$

$

Currently unavailable

45

Homelite JA991017

DECAL- Lo-Lift Pos.

$

$

Currently unavailable

46

Homelite JA464842

RIVET- Plain

$

$

Currently unavailable

47

Homelite JA457005

WASHER- Flat

$

$

Currently unavailable
