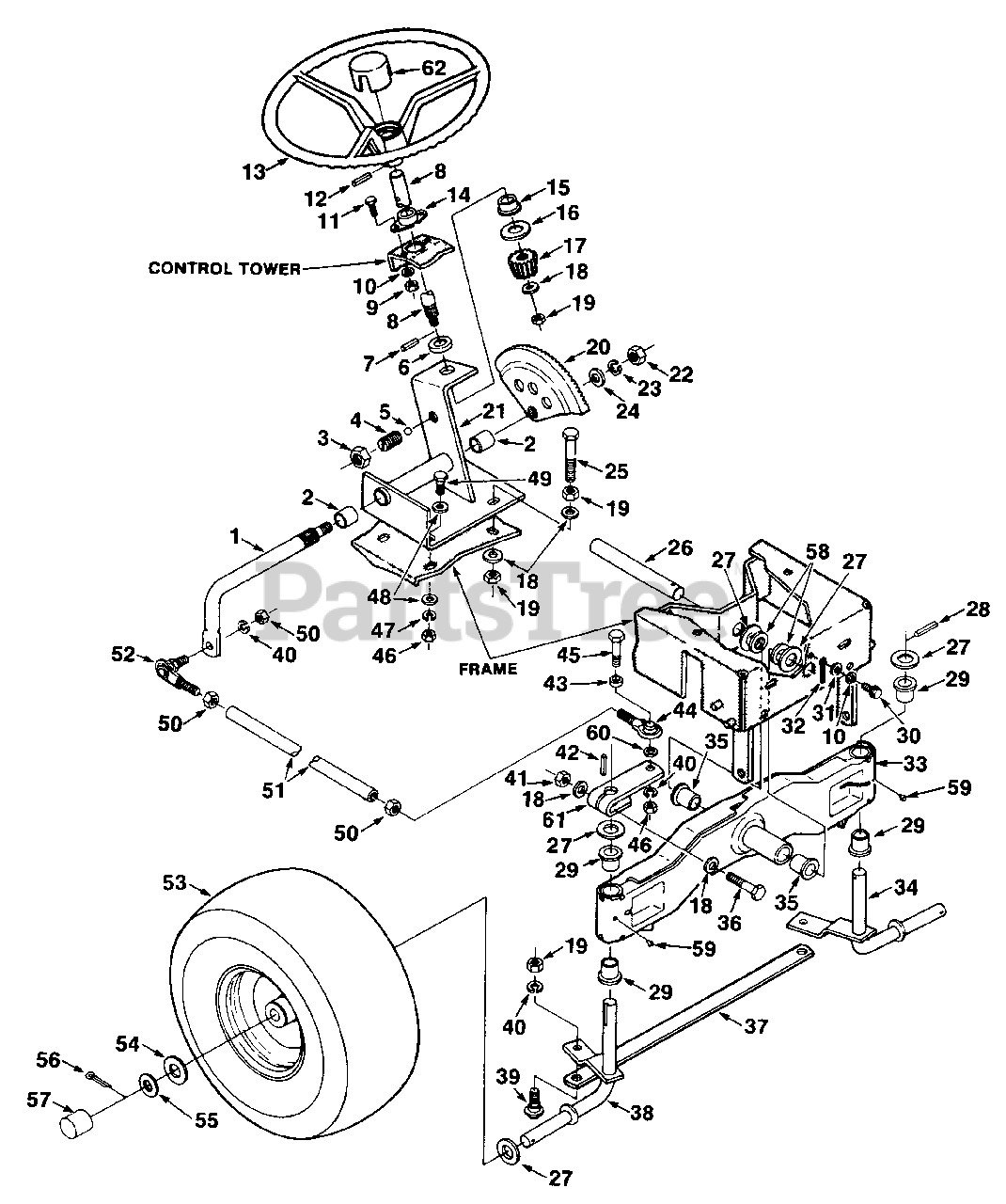

LTX 8 (UT-33004-A) - Homelite Lawn Tractor Steering Linkage Parts Diagram

Lawn Tractor

Steering Linkage Parts Diagram

  • Title
1

Homelite JA339631

ARM- Pitman

$

$

Currently unavailable

2

$

$

Currently unavailable

$7.99

$

Usually ships in 3-7 days

0

4

Homelite JA376121

SPACER- Steering

$

$

Currently unavailable

5

Homelite JA465006

BALL- .312 dia.

$4.49

$

Usually ships in 3-7 days

0

6

Homelite JA376108

SPACER- Steering

$

$

Not available

7

Homelite JA461383

PIN- Roll

$

$

Not available

8

Homelite JA339632

SHAFT- Steering wheel

$

$

Currently unavailable

9

Homelite JA443102

NUT- Hex 1/4-20
(Superseded to JA993730)

$

$

Not available

10

Homelite JA446130

WASHER- Lock 1/4

$

$

Not available

11

Homelite JA400104

SCREW
(Superseded to UP03379)

$

$

Not available

$4.99

$

Usually ships in 3-7 days

0

13

Homelite JA392591

WHEEL- Steering

$

$

Currently unavailable

14

Homelite JA376074

BEARING- Steering shaft

$

$

Not available

15

$

$

Currently unavailable

16

$

$

Not available

17

Homelite JA339629

PINION- Steering

$

$

Currently unavailable

18

Homelite JA453011

WASHER
(Superseded to PS84010)

$

$

Not available

$

$

Not available

20

Homelite JA392599

STEERING- Gear

$

$

Currently unavailable

21

Homelite JA142203

SUPPORT- Steering

$

$

Currently unavailable

$

$

Currently unavailable

23

$

$

Not available

24

$

$

Not available

$

$

Currently unavailable

$

$

Currently unavailable

27

$

$

Currently unavailable

$

$

Not available

29

Homelite JA376065

BUSHING- Spindle

$

$

Currently unavailable

30

Homelite JA408878

SCREW- 1/4-20 x 3/4

$

$

Not available

31

Homelite JA453023

WASHER- Plain 1/4
(Superseded to 678013001)

$1.99

$

Usually ships in 3-7 days

0

32

Homelite JA460064

PIN- Cotter

$4.49

$

Usually ships in 3-7 days

0

33

Homelite JA142188

FRONT AXLE ASSY.

$

$

Currently unavailable

34

$

$

Currently unavailable

35

$

$

Currently unavailable

$

$

Not available

37

$

$

Currently unavailable

38

$

$

Currently unavailable

39

Homelite JA376085

BOLT- Tie bar mounting

$10.99

$

Usually ships in 3-7 days

0

40

Homelite JA446142

WASHER- 3/8 lock

$

$

Not available

41

Homelite JA444762

NUT- Centerlock

$

$

Currently unavailable

$

$

Currently unavailable

43

Homelite JA376114

SPACER- Ball Joint

$

$

Currently unavailable

44

Homelite JA376064

BALL JOINT

$

$

Currently unavailable

45

Homelite JA400268

SCREW
(Superseded to UP07178)

$

$

Not available

46

Homelite JA443106

NUT
(Superseded to 81018)

$

$

Not available

47

Homelite JA446136

WASHER
(Superseded to UP03791)

$

$

Not available

48

Homelite JA453009

WASHER
(Superseded to UP07173)

$

$

Not available

49

Homelite JA400186

SCREW
(Superseded to UP07177)

$

$

Not available

$1.99

$

Usually ships in 3-7 days

0

$

$

Currently unavailable

52

Homelite JA376060

BALL JOINT

$

$

Currently unavailable

53

Homelite JA181964

RIM & TIRE ASSY.

$

$

Currently unavailable

54

$

$

Currently unavailable

55

Homelite JA312398

WASHER-HT

$

$

Currently unavailable

$

$

Currently unavailable

$

$

Currently unavailable

58

$

$

Currently unavailable

59

Homelite JA471225

FITTING- Grease

$

$

Currently unavailable

60

Homelite JA376115

SPACER- Ball joint

$

$

Currently unavailable

61

Homelite JA339619

ARM- Steering

$

$

Currently unavailable

62

Homelite JA339606

CAP- Steering wheel

$

$

Currently unavailable
