LTX 1842 (13AP609G063) - Troy-Bilt 42" Lawn Tractor (2003) Axle, Front, Steering Assembly, Wheels, Front Parts Diagram

42" Lawn Tractor

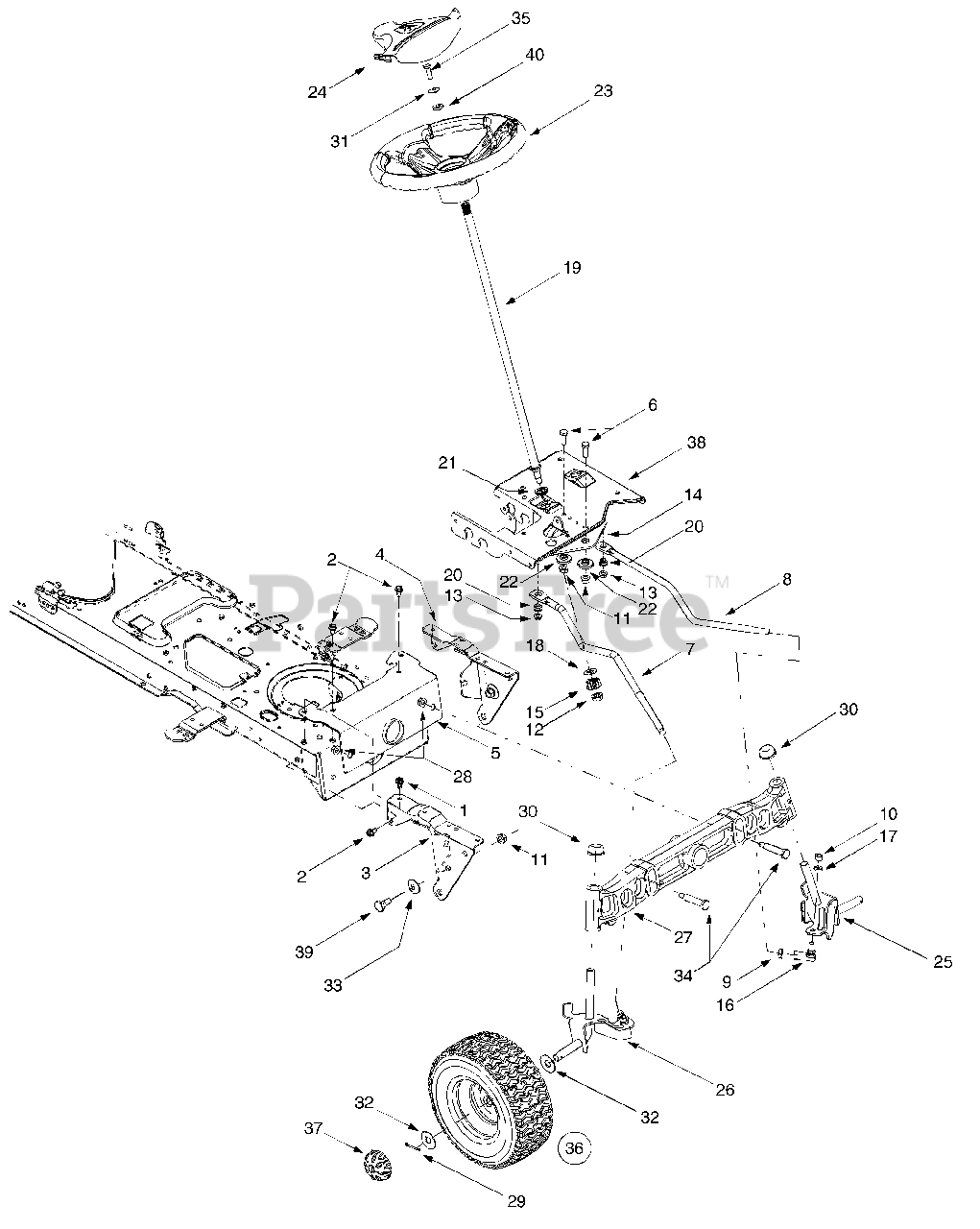

Axle, Front, Steering Assembly, Wheels, Front Parts Diagram

  • Title

1

Troy-Bilt 710-1260A

Self-tapping Screw, 5/16-18 x .75

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-0604A

Self-tapping Screw, 16-18 x .625

$4.49

$

In Stock, Qty 20+

0

3

Troy-Bilt 783-0726B

RH Pivot Support Bracket
(Superseded to 783-0726E)

Variations

Troy-Bilt 783-0726B-0606

Pivot Support Bracket, RH - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 783-0726B-0498

Pivot Support Bracket, RH - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 783-0726B-0637

BRACKET:PIVOT:SUPT - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 783-0726B-0650

BRACKET:PIVOT:SUPT - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 783-0726B-0691

BRACKET:PIVOT:SUPT - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 783-0726B-0716

Pivot Support Bracket, RH - CUB YELLOW-99 (0716)

$

$

Not available

Troy-Bilt 783-0726B-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

$

$

4

Troy-Bilt 783-0727A

LH Pivot Support Bracket
(Superseded to 783-0727B)

Variations

Troy-Bilt 783-0727A-0606

PIVOT SUPPORT BRACKET (LH) - MAJESTIC ORANGE (0606)

$

$

Not available

Troy-Bilt 783-0727A-0498

Pivot Support Bracket, LH - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 783-0727A-0650

BRACKET:PIVOT:SUPT LH - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 783-0727A-0691

BRACKET:PIVOT:SUPT - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 783-0727A-0716

Pivot Support Bracket, LH - CUB YELLOW-99 (0716)

$

$

Not available

Troy-Bilt 783-0727A-0637

USE 783-0727D BRACKET:PIVOT:S - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 783-0727A-0665

BRACKET:PIVOT:SUPT - YARDMAN GREEN (0665)

$

$

Not available

$52.99

$

Usually ships in 3-6 days

0

5

Troy-Bilt 783-0728

Pivot Bar Bracket
(Superseded to 783-0728B)

Variations

Troy-Bilt 783-0728-0498

Pivot Bar Bracket - OLD CUB YELLOW (0498)

$

$

Not available

Troy-Bilt 783-0728-0716

Pivot Bar Bracket - CUB YELLOW-99 (0716)

$

$

Not available

Troy-Bilt 783-0728-0637

Pivot Bar Bracket - POWDER BLACK (0637)

$

$

Not available

Troy-Bilt 783-0728-0650

BRACKET-PIVOT BAR - RED METALLIC (0650)

$

$

Not available

Troy-Bilt 783-0728-0665

BRACKET-PIVOT BAR - YARDMAN GREEN (0665)

$

$

Not available

Troy-Bilt 783-0728-0691

BRACKET-PIVOT BAR - BLACK JACK (0691)

$

$

Not available

Troy-Bilt 783-0728-4008

PIVOT BAR BRACKET - WINE RED (4008)

$

$

Not available

$38.99

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-0514

Hex Cap Screw, 3/8-16 x 1 (Grade 5)

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 711-1408

RH Drag Link

$

$

Not available

8

Troy-Bilt 711-1409A

LH Drag Link

$

$

Not available

9

Troy-Bilt 712-0240

Jam Nut, 7/16-20 (Grade 2)
(Superseded to 912-0240)

$4.49

$

In Stock, Qty 20+

0

10

Troy-Bilt 712-0241

Hex Nut, 3/8-24 (Grade 2)

$4.49

$

In Stock, Qty 13

0

11

Troy-Bilt 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 712-0459

Flange Lock Nut, 7/16-20

$4.99

$

In Stock, Qty 20+

0

13

Troy-Bilt 712-3004A

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 717-1550D

Steering Gear, 11/90 Ratio
(Superseded to 717-1550F)

$70.99

$

In Stock, Qty 20+

0

15

Troy-Bilt 717-1554

Steering Pinion Gear

$10.99

$

In Stock, Qty 20+

0

16

Troy-Bilt 723-0448A

Ball Joint, 7/16-20
(Superseded to 923-0448A)

$24.99

$

In Stock, Qty 20+

0

17

Troy-Bilt 736-0169

Lock Washer, 3/8

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 736-3084

Flat Washer, .51 x 1.12 x .06

$4.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 738-1001A

Steering Shaft, .625 OD x 24.4

$75.99

$

In Stock, Qty 5

0

20

Troy-Bilt 741-0475

Plastic Bushing, .38 ID
(Superseded to 941-0475)

$4.49

$

In Stock, Qty 20+

0

21

Troy-Bilt 741-0656

Hex Flange Bearing, 5/8
(Superseded to 941-0656A)

$5.49

$

In Stock, Qty 20+

0

22

Troy-Bilt 738-0372B

Shoulder Spacer, .38 ID

$9.49

$

In Stock, Qty 20+

0

23

Troy-Bilt 631-04008

Steering Wheel, Soft Grip, Three Spoke
(Superseded to 631-04008B)

$94.99

$

In Stock, only 4 left!

0

24

Troy-Bilt 731-04066

Steering Wheel Cover
(Superseded to 731-04066A)

$18.99

$

Usually ships in 3-6 days

0

25

Troy-Bilt 638-0019A

LH Axle Assembly, .625 Dia.(Model LTX-1842)
(Superseded to 938-0019A)

$57.99

$

In Stock, Qty 10

0

Troy-Bilt 638-0021

LH Axle Assembly .625 / .750 Dia.(Model LTX-2146)
(Superseded to 938-0021)

$103.99

$

In Stock, Qty 5

0

26

Troy-Bilt 638-0020A

RH Axle Assembly, .625 Dia.(Model LTX-1842)
(Superseded to 938-0020A)

$

$

Not available

Troy-Bilt 638-0022

RH Axle Assembly .625 / .750 Dia. (Model LTX-2146)
(Superseded to 938-0022)

$99.99

$

In Stock, only 1 left!

0

27

Troy-Bilt 719-0399B

Cast Iron Pivot Bar w/ Fittings, .625 (Model LTX-1842)

$

$

Not available

Troy-Bilt 719-0525B

Cast Iron Pivot Bar w/ Fittings, .75 (Model LTX-2146)
(Superseded to 919-04177E)

$248.99

$

In Stock, only 1 left!

0

28

Troy-Bilt 712-0431

Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

29

Troy-Bilt 714-0162

Cotter Pin

$4.99

$

In Stock, Qty 20+

0

30

Troy-Bilt 726-0214

Push Cap, .625 (Model LTX-1842)

$10.99

$

In Stock, only 4 left!

0

Troy-Bilt 726-0341

Push Cap, .750 (Model LTX-2146)

$4.99

$

In Stock, Qty 20+

0

31

Troy-Bilt 736-0242

Bell Washer, .34 x .872

$4.49

$

In Stock, Qty 20+

0

32

Troy-Bilt 736-0285

Flat Washer, .635 x 1.589 x .06

$4.49

$

In Stock, Qty 20+

0

33

Troy-Bilt 736-0331

Bell Washer, .39 x 1.13 x .062

$3.99

$

In Stock, Qty 20+

0

34

Troy-Bilt 738-1011

Shoulder Screw, .5 x 2.2, 3/8-16
(Superseded to 738-1011A)

$8.49

$

In Stock, Qty 11

0

35

Troy-Bilt 710-0643

Hex Bolt, 5/16-18 X 1

$6.99

$

In Stock, Qty 5

0

36

Troy-Bilt 634-0105A

Wheel Assembly Complete, 15 x 6 x 6
(Superseded to 634-0105B)

Variations

Troy-Bilt 634-0105A-0911

Wheel Assembly, Gray - Carlisle Gray (0911)

$249.99

$

In Stock, only 4 left!

0

Troy-Bilt 634-0105A-0912

Wheel Assembly, Gray - Dico Gray (0912)

$249.99

$

In Stock, only 4 left!

0

Troy-Bilt 634-0105A-0914

Wheel Assembly, Gray - Cheng Gray (0914)

$249.99

$

In Stock, only 4 left!

0

Troy-Bilt 634-0105A-0915

Wheel Assembly, Gray - Duro Gray (0915)

$249.99

$

In Stock, only 4 left!

0

Troy-Bilt 634-0105A-0916

Wheel Assembly, Gray - Kenda Gray (0916)

$249.99

$

In Stock, only 4 left!

0

Troy-Bilt 634-0105A-0931

Wheel Assembly, Complete - Carlisle Beige (0931)

$

$

Not available

Troy-Bilt 634-0105A-0941

WHEEL ASM-COMPLETE - Carlisle Yellow (0941)

$

$

Not available

Troy-Bilt 634-0105A-0945

WHEEL ASM-COMPLETE - Duro Yellow (0945)

$

$

Not available

$202.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0172

Rim Only
(Superseded to 934-0172A)

Variations

Troy-Bilt 634-0172-0499

Rim Assembly, Beige - CUB BEIGE (0499)

$103.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0172-0662

Rim Assembly, Gray - OYSTER GRAY (0662)

$103.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0172-0674

Rim Assembly - YARDMAN YELLOW (0674)

$103.99

$

Usually ships in 3-6 days

0

Troy-Bilt 634-0172-0688

Rim Assembly, Gray - SPRING GREEN (0688)

$103.99

$

Usually ships in 3-6 days

0

$84.99

$

Usually ships in 3-6 days

0

Troy-Bilt 734-0255

Air Valve
(Superseded to 934-0255)

Note: (Not Shown)

$4.49

$

In Stock, Qty 20+

0

Troy-Bilt 734-1731

Tire Only, Square Shoulder

Variations

Troy-Bilt 734-1731-0901

Tire, 15 X 6 Square Tread - Carlisle (0901)

$49.99

$

Usually ships in 3-6 days

0

Troy-Bilt 734-1731-0902

TIRE-MULTI TRAC 15 - Dico (0902)

$44.99

$

In Stock, only 2 left!

0

Troy-Bilt 734-1731-0904

Tire, 15 X 6 Square Tread - Cheng (0904)

$49.99

$

Usually ships in 3-6 days

0

Troy-Bilt 734-1731-0905

Tire, 15 X 6 Square Tread - Duro (0905)

$49.99

$

Usually ships in 3-6 days

0

Troy-Bilt 734-1731-0906

Tire, 15 X 6 Square Tread - Kenda (0906)

$49.99

$

Usually ships in 3-6 days

0

$111.99

$

In Stock, only 1 left!

0

Troy-Bilt 741-0487A

Flange Bearing
(Superseded to 741-0487C)

Note: (Not Shown)

$7.49

$

Usually ships in 3-6 days

0

Troy-Bilt 741-0706

Flange Bearing w/ Fitting
(Superseded to 941-0706)

Note: (Not Shown)

$8.49

$

In Stock, Qty 7

0

37

Troy-Bilt 731-2290A

Hub Cap
(Superseded to 731-2290B)

$4.49

$

In Stock, Qty 20+

0

38

Troy-Bilt 783-0653F

Steering Support Bracket
(Superseded to 783-04612-0637)

Variations

Troy-Bilt 783-0653F-0637

Steering Support Bracket - POWDER BLACK (0637)

$89.99

$

In Stock, only 3 left!

0

$89.99

$

In Stock, only 3 left!

0

39

Troy-Bilt 738-0143

Shoulder Screw, 3/8-16

$4.49

$

In Stock, Qty 20+

0

40

Troy-Bilt 736-3004

Flat Washer, .406 x .875 x .105

$4.99

$

In Stock, Qty 6

0
