LTX 1050 KW (13WI93AP010) - Cub Cadet 50" Lawn Tractor (2012) Kawasaki FR691V-AS17 Air Filter & Muffler Parts Diagram

50" Lawn Tractor

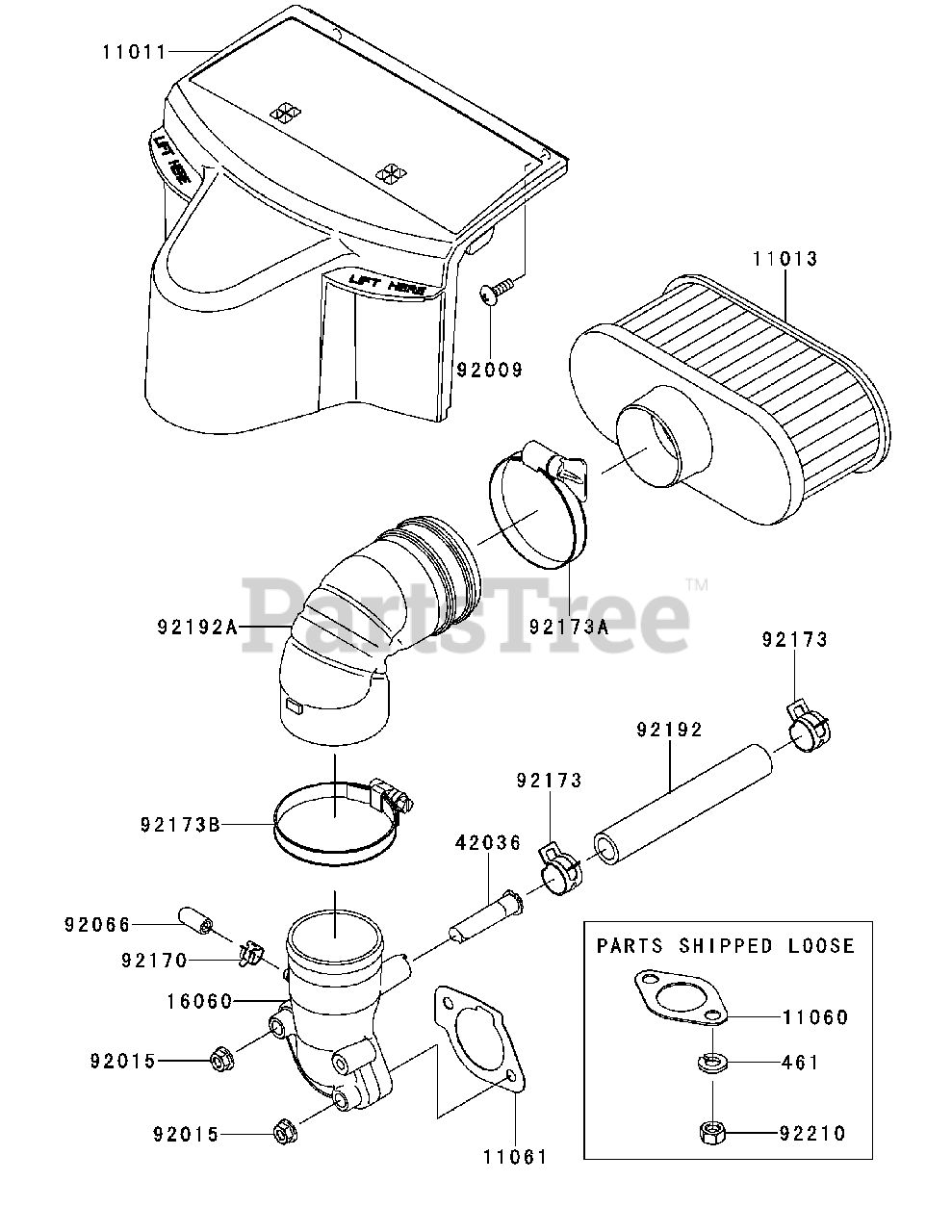

Kawasaki FR691V-AS17 Air Filter & Muffler Parts Diagram

  • Title

11011

Cub Cadet KM-11011-7054

Case-Air Filter
(Superseded to KM-11011-0820)

$33.99

$

In Stock, Qty 15

0

11013

Cub Cadet KM-11013-7049

Element-Air Filter
(Superseded to KM-11013-0752)

$17.99

$

In Stock, Qty 20+

0

11060

Cub Cadet KM-11060-7016

Gasket,Muffler

$2.49

$

In Stock, Qty 20+

0

11061

Cub Cadet KM-11061-7086

Gasket,Carburetor/Pipe-Intake

$1.99

$

In Stock, only 4 left!

0

16060

Cub Cadet KM-16060-7038

Pipe-Intake

$42.99

$

Usually ships in 2-5 days

0

42036

Cub Cadet KM-42036-7022

Sleeve,Breather
(Superseded to KM-42036-0781)

$1.49

$

In Stock, Qty 20+

0

92009

Cub Cadet KM-92009-2303

Screw

$2.99

$

In Stock, Qty 7

0

92015

Cub Cadet KM-92015-1367

Nut

$4.49

$

In Stock, only 2 left!

0

92066

Cub Cadet KM-92066-0095

Plug

$5.49

$

In Stock, only 4 left!

0

92170

Cub Cadet KM-92170-2042

Clamp

$1.49

$

In Stock, Qty 5

0

92173

Cub Cadet KM-92173-7003

Clamp

$2.49

$

In Stock, Qty 15

0

92173A

Cub Cadet KM-92173-7007

Clamp
(Superseded to KM-92173-1001)

$3.99

$

In Stock, Qty 20+

0

92173B

Cub Cadet KM-92173-7007

Clamp
(Superseded to KM-92173-1001)

$3.99

$

In Stock, Qty 20+

0

92192

Cub Cadet KM-92192-7146

Tube,12.6X18.6X118

$1.99

$

In Stock, only 2 left!

0

92192A

Cub Cadet KM-92192-7165

Tube

$13.99

$

Usually ships in 2-5 days

0

92210

Cub Cadet KM-92210-7027

Nut,M8

$1.99

$

In Stock, only 2 left!

0

461

Cub Cadet KM-461DA0800

Washer-Spring,8Mm

$0.99

$

In Stock, Qty 20+

0
