LTX 1050 KW (13AI93AP010) - Cub Cadet 50" Lawn Tractor (2012) Kawasaki FR691V-AS17 Cylinder & Crankcase Parts Diagram

50" Lawn Tractor

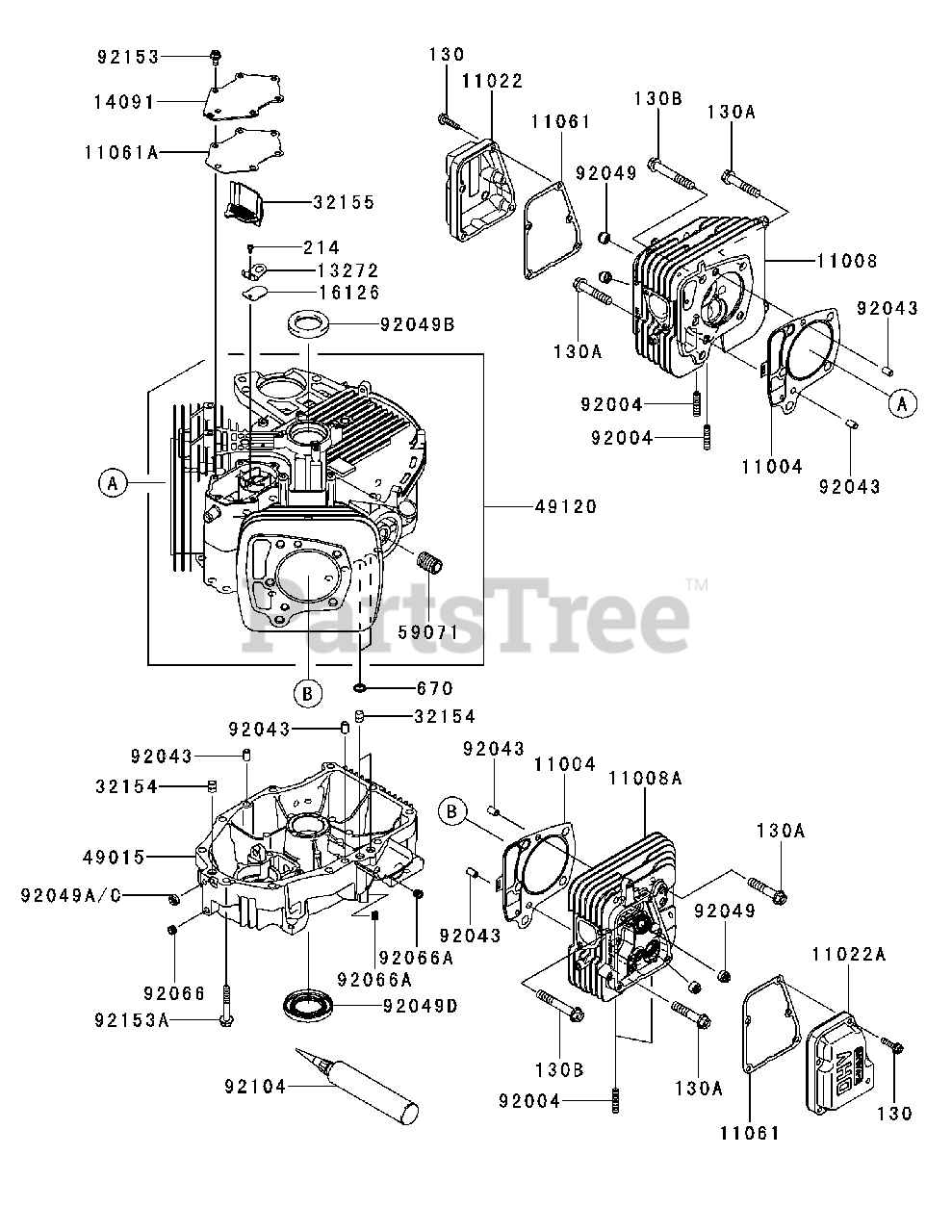

Kawasaki FR691V-AS17 Cylinder & Crankcase Parts Diagram

  • Title

11004

Cub Cadet KM-11004-7026

Gasket-Head
(Superseded to KM-11004-0762)

$33.99

$

Usually ships in 3-6 days

0

11008

Cub Cadet KM-11008-7039

Head-Comp-Cylinder,#1
(Superseded to KM-11008-0861)

$236.99

$

In Stock, Qty 20+

0

11008A

Cub Cadet KM-11008-7040

Head-Comp-Cylinder,#2
(Superseded to KM-11008-0845)

$236.99

$

In Stock, Qty 12

0

11022

Cub Cadet KM-11022-0710

Case-Rocker,#1
(Superseded to KM-11022-0046)

$17.99

$

In Stock, Qty 5

0

11022A

Cub Cadet KM-11022-0711

Case-Rocker,#2
(Superseded to KM-11022-7020)

$16.99

$

In Stock, only 1 left!

0

11061

Cub Cadet KM-11061-7083

Gasket,Case-Rocker
(Superseded to KM-11061-1285)

$4.49

$

In Stock, Qty 20+

0

11061A

Cub Cadet KM-11061-7094

Gasket,Breather

$8.99

$

In Stock, Qty 20+

0

13272

Cub Cadet KM-13272-1374

Plate

$1.99

$

In Stock, Qty 7

0

14091

Cub Cadet KM-14091-7064

Cover,Breather

$2.49

$

In Stock, Qty 11

0

16126

Cub Cadet KM-16126-7020

Valve,Breather

$4.99

$

In Stock, Qty 20+

0

32154

Cub Cadet KM-32154-7019

Pipe
(Superseded to KM-92043-0858)

$2.49

$

In Stock, Qty 20+

0

32155

Cub Cadet KM-32155-7003

Pipe,Breather
(Superseded to KM-32155-2214)

$2.99

$

In Stock, Qty 11

0

49015

Cub Cadet KM-49015-7106

Cover-Crankcase
(Superseded to KM-49015-0023)

$204.99

$

In Stock, only 4 left!

0

49120

Cub Cadet KM-49120-0733

Crankcase-Hsg
(Superseded to KM-49120-0858)

$609.99

$

Usually ships in 2-5 days

0

59071

Cub Cadet KM-59071-7025

Joint
(Superseded to KM-59071-0743)

$2.99

$

Usually ships in 2-5 days

0

92004

Cub Cadet KM-92004-7024

Stud,8X30

$6.99

$

In Stock, only 2 left!

0

92043

Cub Cadet KM-92043-1263

Pin

$0.99

$

In Stock, Qty 20+

0

92049

Cub Cadet KM-92049-7001

Seal-Oil,Rvc2 6X11X10.2

$8.49

$

Usually ships in 2-5 days

0

92049A

Cub Cadet KM-92049-7005

Seal-Oil,So 8X14X5 Hs
(Superseded to KM-92049-7019)

$2.49

$

In Stock, Qty 20+

0

92049B

Cub Cadet KM-92049-7010

Seal-Oil,Sd 35X48X8 R Hs

$3.49

$

In Stock, Qty 20+

0

92049C

Cub Cadet KM-92049-7019

Seal-Oil,So 8X14X5 Hs

$2.49

$

In Stock, Qty 20+

0

92049D

Cub Cadet KM-92049-7028

Seal-Oil,38X62X8Mtclv

$14.99

$

In Stock, Qty 20+

0

92066

Cub Cadet KM-92066-7023

Plug
(Superseded to KM-92066-0880)

$3.99

$

Usually ships in 2-5 days

0

92066A

Cub Cadet KM-92066-7026

Plug
(Superseded to KM-92066-0881)

$4.49

$

In Stock, Qty 6

0

92104

Cub Cadet KM-92104-7001

Gasket-Liquid,Tb1217H
(Superseded to KM-92104-0007)

$51.99

$

In Stock, Qty 15

0

92153

Cub Cadet KM-92153-7043

Bolt,6X12
(Superseded to KM-92154-2938)

$0.99

$

In Stock, Qty 20+

0

92153A

Cub Cadet KM-92153-7054

Bolt,8X50

$2.99

$

In Stock, Qty 20+

0

130

Cub Cadet KM-130AA0625

Bolt-Flanged,6X25

$0.99

$

In Stock, Qty 20+

0

130A

Cub Cadet KM-130CA1050

Bolt-Flanged,10X50

$4.49

$

In Stock, Qty 9

0

130B

Cub Cadet KM-130CA1065

Bolt-Flanged,10X65

$2.99

$

In Stock, Qty 20+

0

214

Cub Cadet KM-214AA0408

Screw-Pan+-,4X8

$3.99

$

In Stock, Qty 11

0

670

Cub Cadet KM-670B2011

O Ring,11Mm

$1.49

$

In Stock, Qty 20+

0
